Part Number:
770-600
| Manufacturer | Environmental Devices Corporation |
|---|---|
| Type | IAQ/Ambient PM |
| Flow Rate | 2 L/min |
| Particle Size Range | 0.1 to 100 µm |
| Sensing Range | 0.001 to 20 mg/m³ |
| Simultaneous Gravimetric Sampling | No |
| Infield Calibration Verification | Yes |
| Datalogging | Yes |
| Connectivity | Optional wireless data transmission available |
Performance Profile
| Accuracy | ± 10% to filter gravimetric SAE fine test dust |
| Resolution | 0.001 mg/m3 |
| Calibration | NIOSH gravimetric method, NIST traceable, SAE fine test dust |
| Sensing Range | 0.001 to 20.0 mg/m3 (0.01 to 200 mg/m3 - optional) |
| Particulate Size Range | 0.1 to 100 µm |
| Particle Size Measurement | 1 µm, 2.5 µm, 4.0 µm, or 10 µm |
| Precision | ± 0.003 mg/m3 (3 µg/m3) |
| Sampling Flow Rate | 2 L/min |
| Display | Alphanumeric LCD, 4 lines, 20 characters, mg/m3 concentration reading |
| Operation | Four-key splash-proof membrane switch |
| Analog Output | 0 to 2 VDC |
| Alarm Output | 90 dB at 3 ft |
| Record Time | 1 sec to 15 mo |
| Sampling Rate Short-term | 2, 4, and 10 sec |
| Sampling Rate Long-term | 1, 10, and 30 min |
| Memory and Time Storage | > 5 yrs |
| Real-time Clock and Display | Hours, minutes, seconds, day, month, year |
| Data Storage | 21,600 data points |
| Data Display | Concentration in mg/m3 and TWA, Max, Min, STEL, date, time |
| Digital Output | RS-232 |
| Operating Temperature | 14 to 122 F (-10 to 50 C) |
| Storage Temperature | -4 to 158 F (-20 to 70 C) |
| Software | Windows driven for graphical and data translation |

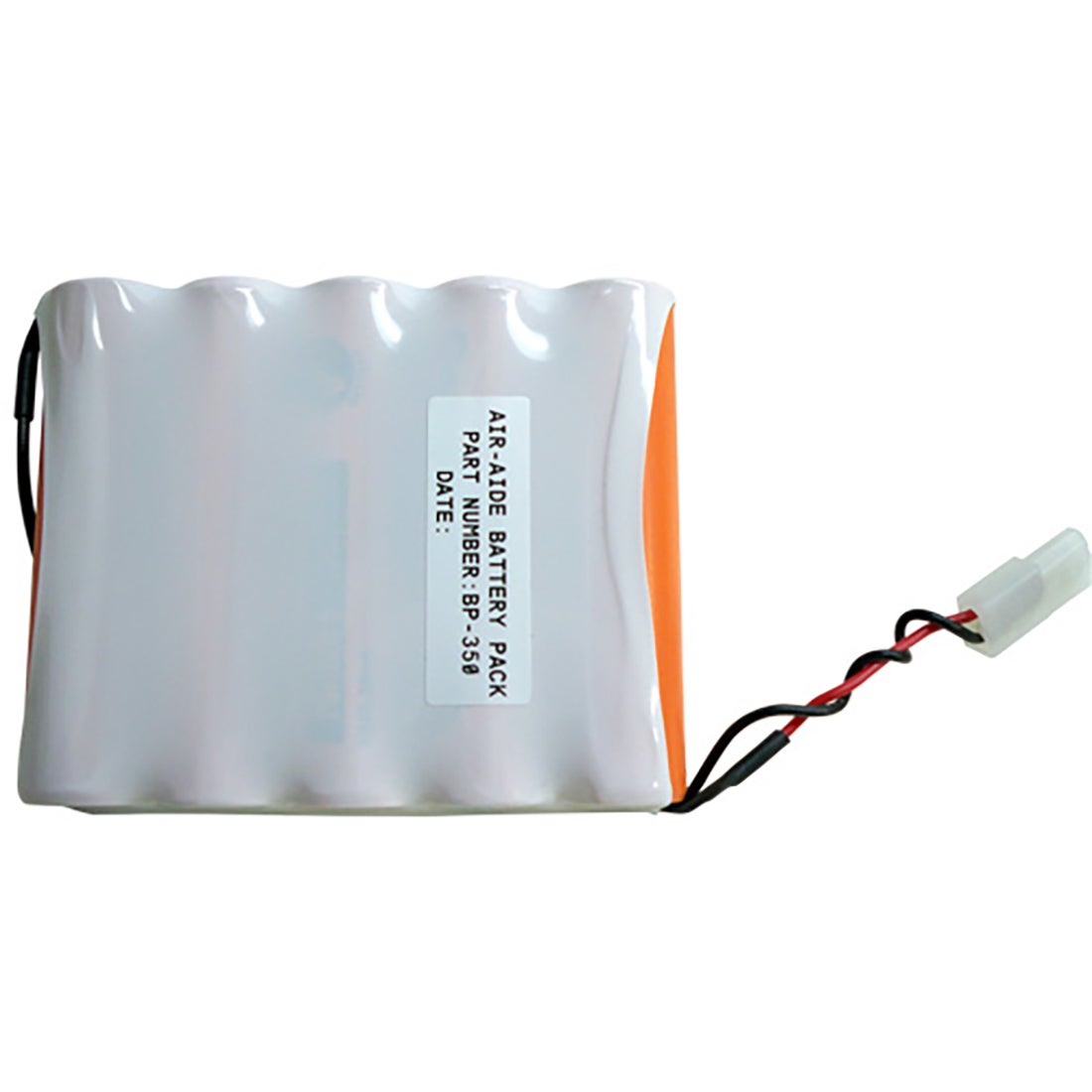

| Power | Rechargeable NiMH battery |
| Run Time | > 10 hrs on rechargeable NiMH battery; continuous on AC |
| Charging Time | < 10 hrs |
| Humidity | 95% non-condensing |
| Dimensions | 3 x 6 x 9 in (7.6 x 15.2 x 22.9 cm) |
| Weight | 5 lbs (2.3 kg) |
