AirChek Connect 5-Pack Basic Pump Kit

Part Number:

220-4000-BK5

Overview

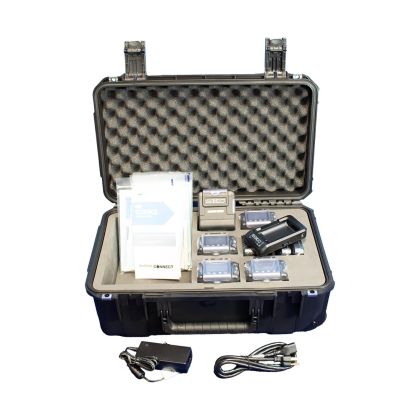

AirChek® Connect 5-pack Basic Pump Kit includes 5 pumps with Li-Ion battery packs and screwdriver sets, 5 Standard Charging Cradles, and 1 multi-cradle power supply with cord, in a hard-sided case. Requires Cat. No. 877-94 USB Bluetooth Adapter accessory for connection to PC and download and use of free DataTrac® Pro Software. Low flows from 5 to 500 ml/min require a low flow kit. AirChek Connect pumps contain Li-Ion batteries and are subject to special shipping regulations. AirChek Connect requires ¼-inch ID tubing.

Details

AirChek Connect sampling pumps provide accurate, reliable flows from 5 to 5000 ml/min. These Bluetooth-connected touch screen pumps; easily connects to mobile with free SmartWave app and to PC with DataTrac Pro software and accessory.

Attributes

Attributes
Flow Rate	5 to 5000 ml/min
Touch Screen Operation	Yes
Battery Type (Power)	Li-ion
Approx. Run Time	40 + Hours at 2 L/min
Connectivity	Bluetooth, with USB Adapter sold separately
PC Compatible	Yes
Programmable	Yes
Compensates for Changes in Atmospheric Pressure	Yes
Compensates for Changes in Temperature	Yes
Constant Flow	Yes
Constant Pressure Mode	Yes
Automatic Flow Rate Verification	No
Intrinsic Safety	Yes
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

Flow Range	• Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Compensation Range (Back Pressure Capability)	• 5000 ml/min at 20 inches water back pressure • 4000 ml/min at 30 inches water back pressure • 3000 ml/min at 40 inches water back pressure • 2000 ml/min at 50 inches water back pressure • 1000 ml/min at 60 inches water back pressure
Power	• Removable rechargeable lithium-ion (Li-Ion) battery, 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run Time	• 40+ hours at 2000 ml/min* • 15+ hours at 5000 ml/ min* • Indefinite run from charging cradle
Accuracy	• Flow control: ± 5% of set-point after flow rate verification to desired flow • Atmospheric pressure: ± 0.3 in Hg • Temperature: ± 1.0 C
Display/Parameters	• High-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time
User Interface	• Eight-area capacitive touch screen with auto-dim and locking options
Sound Level	• Average 51.7 dB at 3-ft (1-m) distance using a 37-mm, 0.8-µm MCE filter cassette
Tubing	• Requires ¼-inch ID tubing
Dimensions/Weight	• 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm),19.4 oz (550 gm)
Certifications/Markings	• Intrinsic safety (SKC Cat. No. 220-3000 operated with SKC Battery Pack P75718) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C Ex II 1G; Exia IIC T4 Ga; IECEx UL 19.0100, UL22UKEX2351, UKCA 0843, DEMKO 19ATEX 2288, CE 0539 • Designed to meet ISO 13137:2022 • RoHS compliant
