Aluminum Respirable Dust Cyclone, 25-mm
Part Number:
225-01-01
Overview

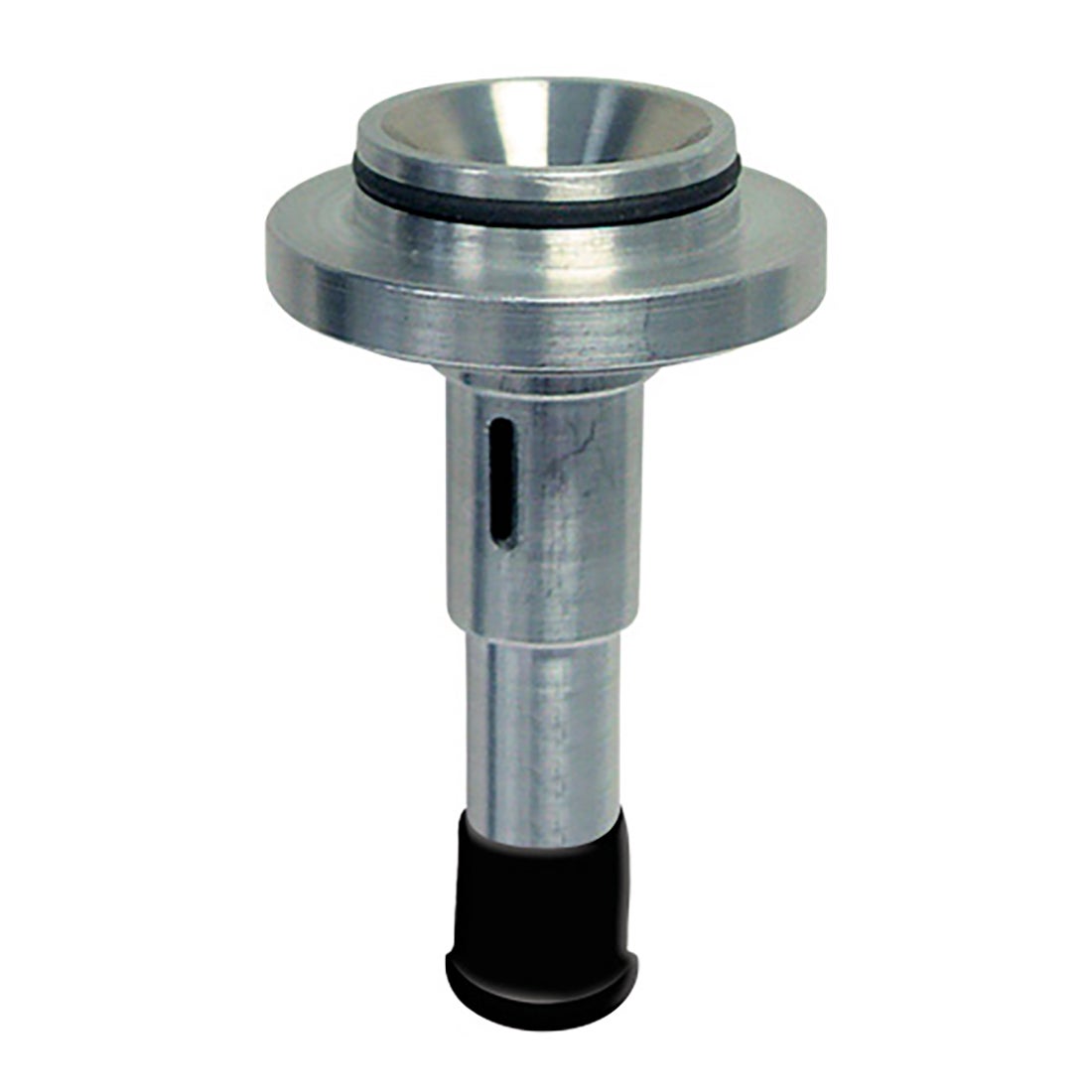

Aluminum Respirable Dust Cyclone, 25-mm.
The SKC Aluminum Cyclone is specified in NIOSH methods for silica and respirable dust. The Aluminum Cyclone is operated at 2.5 L/min to conform to the ISO 7708/CEN criteria specified in the 2016 OSHA final rule on respirable crystalline silica and meets ACGIH respirable TLVs.
| Cut-point | 4 μm |
|---|---|
| Flow Rate | 2.5 L/min |
| Disposable | No |
| Type | Respirable |
Performance Profile
| Sample Time | Varies |
| Sampling Rate | 2.5 L/min for 4-µm cut-point (OSHA silica rule) |
| Sample Pump | Universal XR or AirChek series |
| Sample Media | 25 or 37-mm filters in 3-piece cassettes |
| Tubing | 1/4-in ID |
Document Downloads
- Aluminum Cyclone Operating Instructions
- SKC Respirable Dust Cyclone Performance Guide
- Focus on Silica Brochure
- Crystalline Silica Sampling Cyclones vs PPI Samplers – Making the Optimal Choice Flysheet
- SKC Respirable Dust Cyclone Performance Guide Technical Note
- Sampling Train — Cyclones Sampling Setup Guide
- Sampling Solutions for Nanomaterial Exposure Assessments
- Presentation: Nanomaterials in Workplace NIOSH Exposure Assessment Technique
