BioSampler Deluxe Kit

Part Number:

228-9615KD

Overview

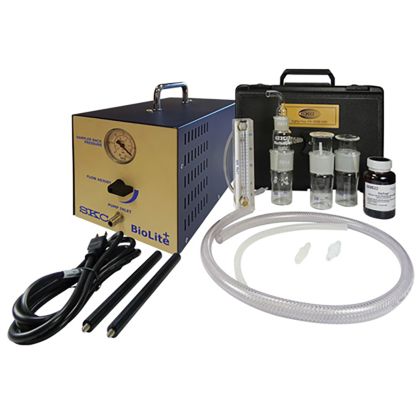

The Deluxe BioSampler® System includes 1 BioSampler®, two additional 20-ml collection vessels with caps, 1 case with mounting rod, 1 ViaTrap (120 ml), 1 BioLite pump, tubing/adapters, and rotameter.

Details

The BioLite+ area air sampling pump provides up to 62 L/min flow or sonic flow and indefinite run times using a 115 or 230-V AC adapter for sampling particulates and bioaerosols. The pump is ideal for use with the SKC BioSampler and asbestos cassettes. The BioLite+ air sampling pump is CE marked. BioLite+ is not UL Listed for intrinsic safety.

Attributes

Attributes
Flow Rate	Up to 62 L/min or sonic flow with critical orifice
Touch Screen Operation	No
Battery Type (Power)	AC Operation
Approx. Run Time	Indefinite
Connectivity	No
PC Compatible	No
Programmable	No
Compensates for Changes in Atmospheric Pressure	No
Compensates for Changes in Temperature	No
Constant Flow	No
Constant Pressure Mode	No
Automatic Flow Rate Verification	No
Intrinsic Safety	No
CE Marked	Yes
UKCA Marked	Yes

Specifications

Maximum Flow Rate: 62 L/min
Maximum Back Pressure: 850 mbar
Dimensions: W x H x D 162 x 209 x 303 mm
Weight: 7.25 kg (16 lb)
Enclosure Rating - IP20
Operating Temperature: 0 C to +40 C
Operating Humidity: 0 to 95% Rh
Mains Supply: 115/120V ~ 60 Hz or 230/240V ~ 50 Hz
Maximum Input Current: 3.15A (120V model) or 1.25A (240V model)
Operating Noise Level: 61 to 66dBA at 1 metre (dependent on flow rate and back pressure)
