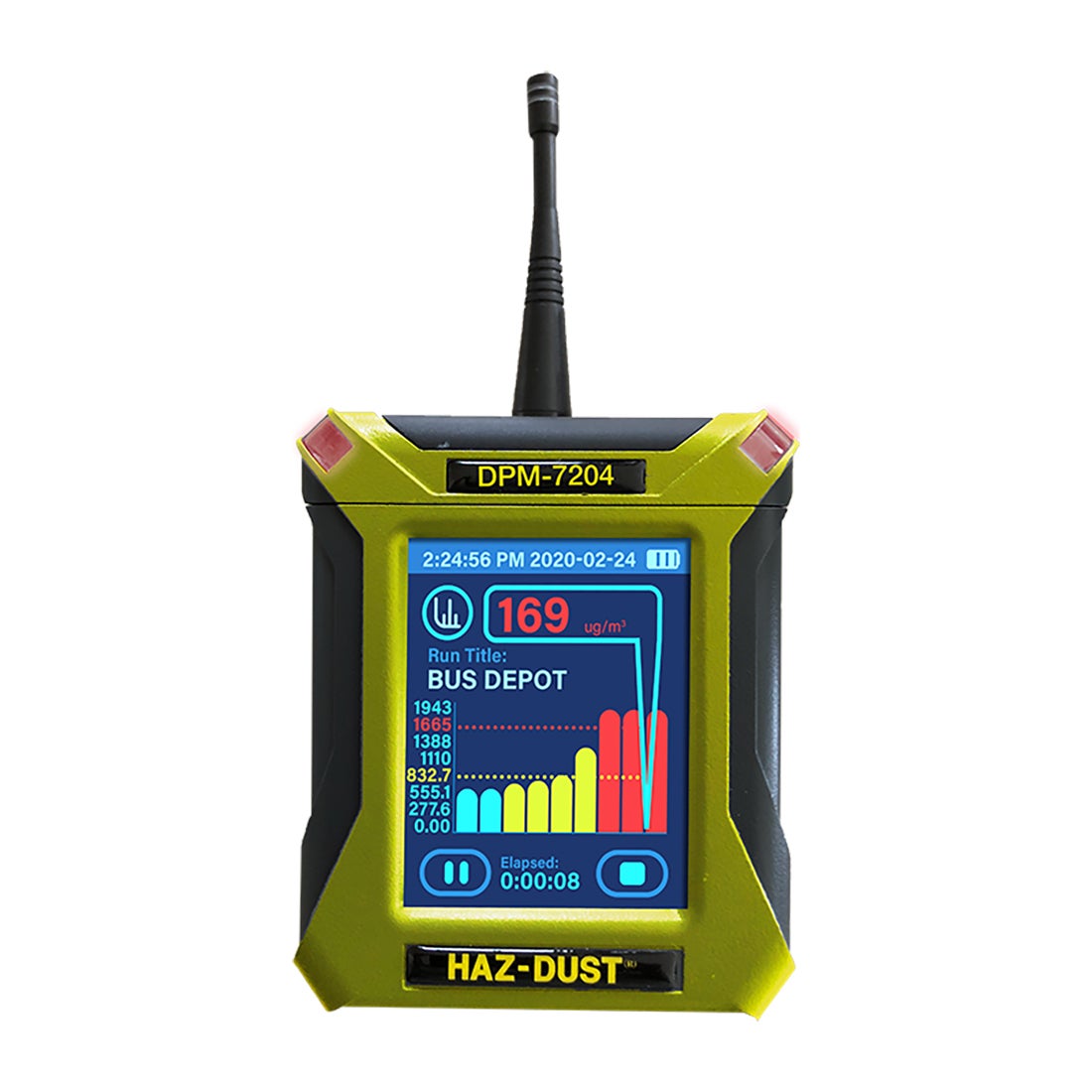

DPM-7204 Diesel Particulate Monitor

Part Number:

770-750A

Overview

DPM-7204 Monitor Kit includes monitor with battery, 37-mm opaque filter cassette, open-faced sampling adapter, GS-3 Cyclone, flow adapter, micro USB download cable, universal battery charger (110-240 V), zeroing accessory, USB with DustComm Pro Software and manual, and certificate of calibration, in a hard carry case. Requires calibration with equipment sold separately.

Details

The Environmental Devices Corp. DPM-7204 real-time monitor is a valuable tool for the OEHS professional. Immediately identify problem areas and tasks at highest risk for exposure to diesel particulate matter (DPM), implement controls, and measure the effectiveness of controls. You no longer need co-located real-time monitors and FRM filter cassettes ” DPM-7204 is two instruments in one with its built-in constant flow pump and sensor/filter configuration. The sensor mounts in the OSHA-defined breathing zone and is sandwiched between a 25 or 37-mm filter cassette and an interchangeable validated sampling inlet for accurate concurrent real-time measurement and gravimetric sampling of respirable, thoracic, or inhalable particulate size fractions. When used as part of a routine air monitoring program, the DPM-7204 can significantly reduce the number of gravimetric tests and laboratory analyses.

Attributes

Attributes
Manufacturer	Environmental Devices Corporation
Type	Diesel Particulate Matter (DPM)
Flow Rate	1-5 L/min
Particle Size Range	0.1 to 100 µm
Sensing Range	0.001 to 500 mg/m³
Simultaneous Gravimetric Sampling	Yes
Infield Calibration Verification	Yes
Datalogging	Yes
Connectivity	Optional wireless available

Specifications

DPM-7204 Specifications

Sensors	Sensor Type: 90° light scattering 880nm Calibration: Calibrated against Gravimetric reference NIST traceable- SAE fine test dust ISO12103-1 A2 Fine Test Dust. Accuracy: +/- 10% to filter gravimetric SAE fine test dust Precision: +/- 0.02 mg/m³ Sensing Range: 0.001-500 mg/m 3 or 1-500,000 µg/m³ PM Size Range: 0.1 to 100um Minimum Resolution: 1 ug/m³ (0.001 mg/m³ ) Zero Stability: +/- 0.001 mg/m³ (give µg/m³ equivalent also) over 24 hours using 10 second log rate. Humidity: 95% non-condensing
Display	3.5”, 24-bit True color, Resistive Color Touch, with Auto Dimming
Real-Time Data Display	Time: Hours, min., sec., 12hour & 24 hour Date: MM/DD/YYYY, YY/MM/DD, DD/MM/YY Data Display: Concentrations (mg/m³, ug/m³), Sampling Size Fraction of PM (OSHA TWA, AVE., MAX., MIN.), Start time, stop time, elapsed run time, Log rate, Flow, Real-Time Rolling Graphs (10 sec and 1 second), Personalized Named Data Sets, Unique Aerosol Profiles, Language Options, Battery Life Pump Faults, Flow Rate, In Feld Calibration Test, History of Data Sets
Sampling Flow Rate	Sampling Flow Rate:1-5 Lpm The pump is capable to maintain flow within ±5% as follows: 1.0 Lpm up to 70 Inch H₂O; 2.5 Lpm up to 55 Inch H₂O, and 5.0 Lpm up to 20 inch H₂O.
Filter Cassette	37mm preloaded and weighted filter cassette 37mm 1um jeweled cassette for diesel particulates 25mm Preloaded cassette
Attachable Inlets
Respirable Inlet	GS-3 Cyclone: 2.75 LPM for 4µm cut point (OSHA silica rule) Meets ISO 7708/CEN criteria GS-1 Cyclone: 2.0LPM for 4µm cut point (OSHA silica rule) 3 LPM for 3.5 cut point (MSHA silica standard) 1.7 or 2.0 LPM with DPM cassette (MSHA DPM sampling) Meets ISO 7708/CEN criteria
Inhalable Inlet	IOM sampler: 2.0 LPM Meets ISO 7708/CEN criteria
Thoracic Inlet	Thoracic Sampling Inlet: 2.0LPM
Impactors	PM10, PM5.0, PM4.0, PM2.5

Alarm Output	Audible & Visual Audible: 90db at 3ft Ceiling and S.T.E.L Alarms, Pump Fail, and Low Battery
Recording Time	1 second to 15 days Sampling Rate: 1 sec., 4 sec., 10 sec., and 60 sec
Data Storage	43,200 data points
Memory & Time Storage	>5 years
Digital Output	Micro USB 6.00’ (1.83m), A Male to Micro B Male, 28SWG, Shielded
Power Supply	Wall Mount, Multi Bald Included, Voltage Input 100~240 VAC, Voltage Output 12V, Current Output 2A, CE, UL,CB, cUL, PSE, RCM
Battery	Lithium Ion pack, 7.4 Volt 3350 mAh, 24.79 watts
Operating Time	22+ hours Running at 2.0LPM with IOM and no filter.
Operating & Storing Conditions	Operating Temperature: 0 to 50°C Storage Temperature: -20 to 70°C Operational Humidity: 0-95% Non-Condensing
DUSTCOMM Pro Software	Windows™ driven Windows 10 or greater
Maintenance	Zero Calibration: Before each use In Field Calibration Verification: Before each use Flow Calibration: Before each use. Will automatically change when switching PM selective size. Sensor Cleaning: By user when needed/ or during annual calibration Factory Calibration: Annually or when instrument fails infield calibration verification.
Weight and Dimensions	Dimensions (Case): 3.5” x 2.25” x 4.75” Sensor Dimensions: 1.75” x 1.5” Weight Instrument: 1.14lbs Weight Sensor: 0.6lbs Display dimensions: 3.5”
PM Sensor	Sensor Type: 90° light scattering 88nm Calibrated against Gravimteric reference NIST traceable-SAE fine test dust ISO12103-1 A2 Fine Test Dust.
Tripod Mounting	Optional Accessory
