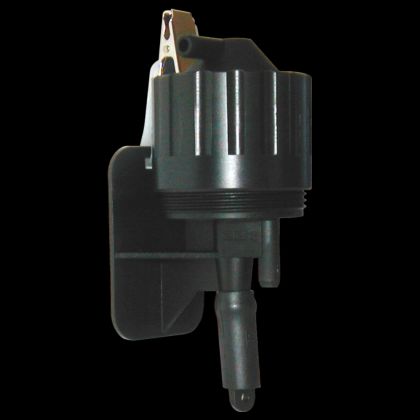

DPM Plastic Cyclone, 37mm

The SKC DPM cyclone is manufactured from conductive plastic which dissipates electrical charges to the surrounding atmosphere and prevents static interference on the collection of dust particles. An extended retaining ring and special sealing arrangement enables the DPM cassette to be fitted to the cyclone sampler. The sampler removes the larger, non-respirable particles prior to the inlet of the DPM cassette to prevent blockage of the fine impactors built into the DPM cassette. Design flow rate when sampling with the DPM cyclone and DPM cassette is 2.0 L/min.
