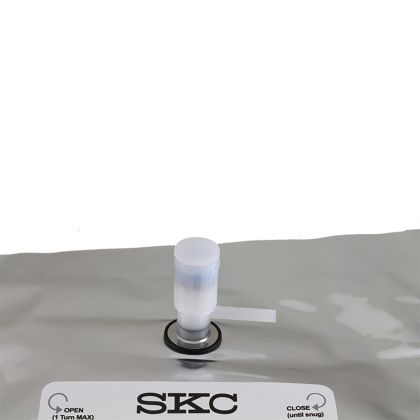

FlexFoil Sample Bag w/Single Polypropylene Septum Fitting, 5L, 10Pk

Part Number:

262-05

Overview

Standard FlexFoil® 5-liter Sample Bag with single polypropylene septum fitting which combines the hose/valve and the septum holder into one compact fitting.

Details

Standard FlexFoil Air Sample Bags are strong and flexible with good stability for carbon monoxide, carbon dioxide, methane, hydrogen, and SF6 and good 48-hour stability for H2S, hydrogen, carbonyl sulfide, and ethyl and methyl mercaptan. Use PTFE tubing to attach a single polypropylene or single stainless steel fitting on the bag to a Grab Air or Pocket Pump® TOUCH.

Attributes

Attributes
Material	FlexFoil
Fitting Type	Single Polypropylene Septum Fitting
Maximum Capacity	5 Liters
External Dimensions	13.75 x 14.75 inches

Specifications

Performance Profile

Background	Moderate to high VOC and low sulfur
Stability	Good for CO, CO₂, methane, hydrogen, and SF₆; good 48-hour stability for H₂S, hydrogen, carbonyl sulfide, and methyl and ethyl mercaptan
Thickness	4 ply (5 mil)
Sample Pump	Grab Air or Twin Port Pocket Pump; also see the Vac-U-Chamber
