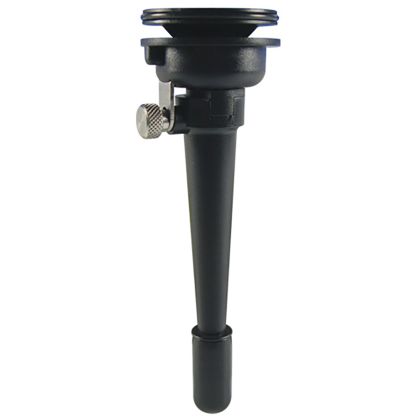

main product photo

GS-1 Single Inlet Cyclone, 10 mm w/DPM and 37mm Cassette Adapter

Part Number:

225-105

- +
Add to Compare
Overview
GS-1 Single-inlet Cyclone, 10 mm, conductive plastic construction, 2-L/min flow rate for DPM sampling with a bowl adapter for DPM cassettes and a 37-mm cassette adapter.
The GS-1 Cyclone is a 10-mm Dorr-Oliver equivalent design but comprised of conductive material to eliminate the electrostatic effects associated with the nylon Dorr-Oliver. Use with the SKC DPM Cassette to screen out large particles to prevent impactor and filter overload. The GS-1 Cyclone is safe for underground mine use.
Attributes
Cut-point4 μm
Flow Rate2 L/min
DisposableNo
TypeRespirable


Performance Profile

Sample TimeVaries
Sample Rate2 L/min for 4-µm cut-point * (OSHA silica rule)
3 L/min for 3.5-µm cut-point * (MSHA for silica standard)
1.7 or 2 L/min with DPM Cassette (MSHA DPM sampling)
Sample PumpUniversal XR or AirChek Series
Sample MediaDPM Cassette or 37-mm filters in 3-piece cassettes
Tubing1/4-in ID



*
Trakumas, S., et al., “Performance Assessment of Personal Respirable Cyclone Samplers,” AIHce Presentation 191, 2003
