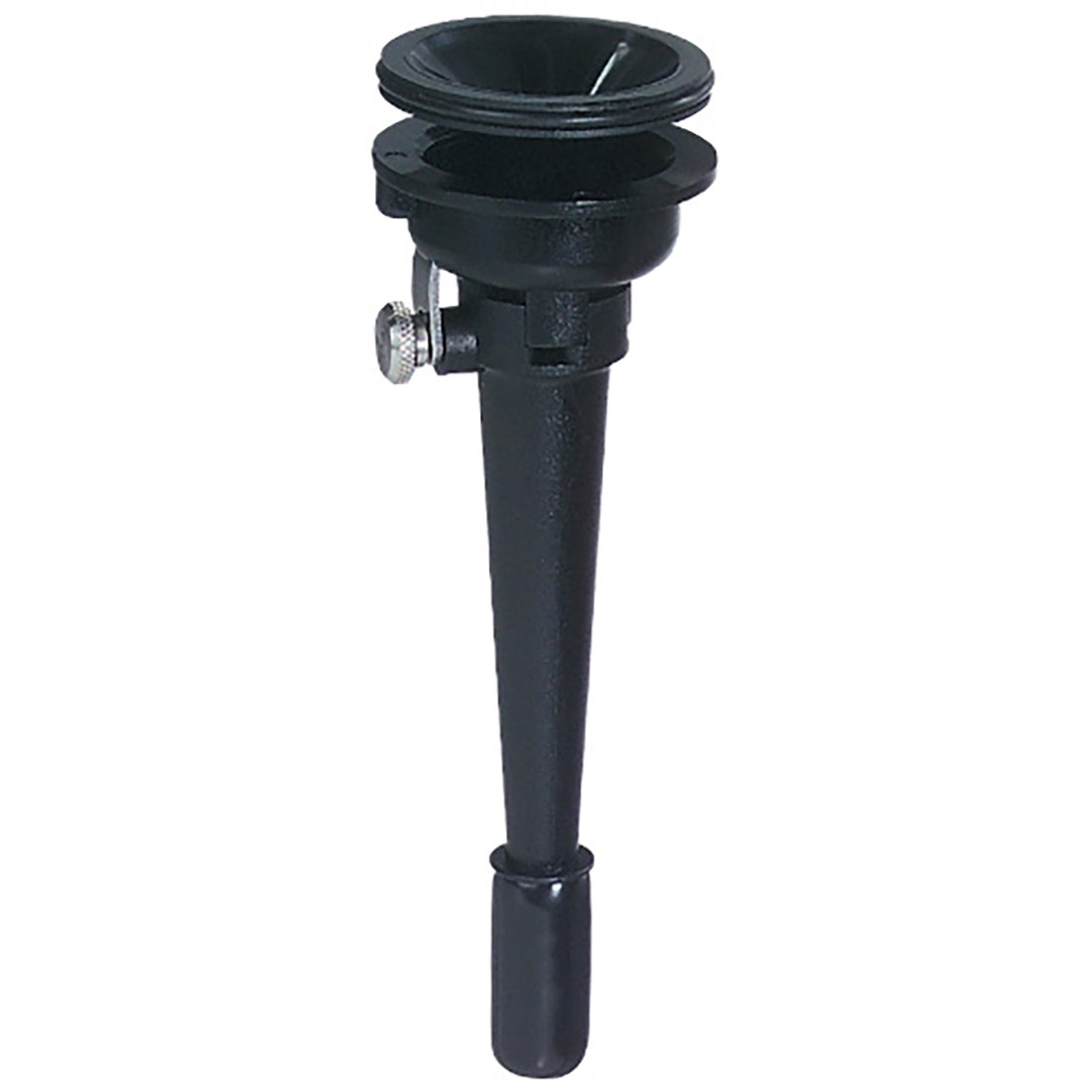

GS-3 Respirable Dust Cyclone, 10mm w/37mm Cassette Adapter
Part Number:
225-100
Overview
GS-3 Respirable Dust Cyclone, 10 mm, with 37-mm cassette adapter, conductive plastic construction.
The GS-3 Respirable Cyclone is operated at 2.75 L/min to conform to the ISO 7708/CEN criteria specified in the 2016 OSHA rule on respirable crystalline silica. The SKC GS-3 Cyclone’s multiple tangentially arranged inlets eliminate ambient wind speed and orientation sensitivity and decrease particle loss due to impaction. Lightweight conductive plastic construction eliminates electrostatic effects. The GS-3 Cyclone is used with a standard three-piece filter cassette.
| Cut-point | 4 μm |
|---|---|
| Flow Rate | 2.75 L/min |
| Disposable | No |
| Type | Respirable |
Performance Profile
| Sample Time | Varies |
| Sample Rate | 2.75 L/min for 4-µm 50% cut-point * (OSHA silica rule) |
| Sample Pump | Universal or AirChek series |
| Sample Media | 25 or 37-mm filters in 3-piece cassettes |
| Tubing | 1/4-in ID |
| * | Calibrated at U.K. Health and Safety Laboratory |
Document Downloads
- GS-3 Multiple-inlet Cyclone Operating Instructions
- SKC Respirable Dust Cyclone Performance Guide
- Focus on Silica Brochure
- Crystalline Silica Sampling Cyclones vs PPI Samplers – Making the Optimal Choice Flysheet
- SKC Respirable Dust Cyclone Performance Guide Technical Note
- Sampling Solutions for Hydraulic Fracturing (Fracking) Exposure at Oil and Gas Sites
- Webinar: MSHA Final Silica Rule: Navigating Updates and Implications
