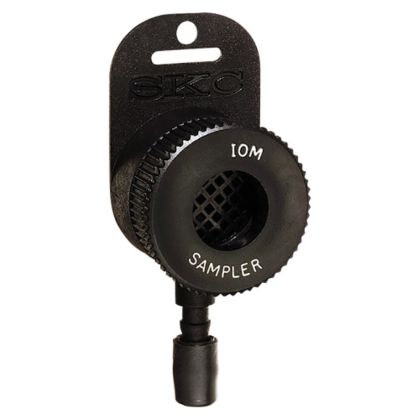

IOM Sampler, Conductive Plastic w/Transport Clip and Cover

Part Number:

225-70A

- +
Overview
IOM Sampler and Cassette, in conductive plastic with transport clip and cover.
Choose the original IOM Inhalable Sampler for optimal performance! The IOM is a gold standard sampler in the industry and features a convenient removable filter cassette that is weighed before and after sampling as a single unit for gravimetric analysis. IOM meets several U.S. and international standards for inhalable particulate and bioaerosols. Use IOM with a personal sample pump at 2 L/min. IOM is also available in an autoclavable stainless steel version for chemical analysis and bioaerosol sampling. When used with MultiDust Foam Discs, IOM can sample respirable and inhalable particulate simultaneously.
Attributes
Cut-point100 µm at 2 L/min inhalable fraction 4 µm at 2 L/min respirable (with MultiDust)
Flow Rate2 L/min
DisposableNo
TypeInhalable



Performance Profile

Flow Rate2 L/min* (personal sampling)
50% Cut-point100 µm at 2 L/min inhalable fraction
4 µm at 2 L/min respirable (with MultiDust)
MaterialMolded autoclavable conductive plastic (polypropylene) or stainless steel
Maximum Operating TemperaturePlastic IOM and cassette: 212 F (100 C) with no pressure
Stainless steel IOM and cassette: 392 F (200 C) suitable for autoclaving and solvent washing
Filters25-mm membrane or fibrous filter
Tubing1/4-inch ID
Weight
(plastic model with cassette)
< 2 oz (55 gm)
Dimensions3.3 x 1.1 in (8.5 x 2.8 cm)
AnalysisGravimetric or chemical (stainless steel model)

* For Sampling at higher flow rates see Technical Note: Higher Flow Rates Expand Applications for The IOM Sampler (PDF)

The plastic IOM is not suitable for autoclaving or ethylene oxide sterilization.
