ISO-CHEK, Coated Filter Cassette, w/Derivative, 10Pk

Part Number:

225-9023A

Cold storage required. Shipping restrictions may apply.

Limited Shelf Life

Overview

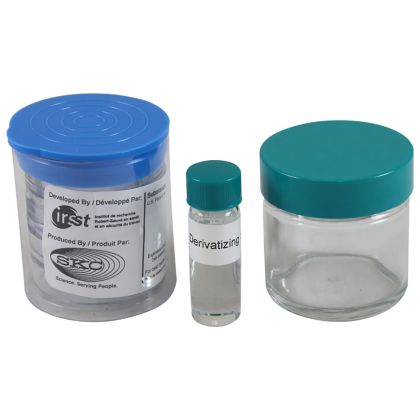

ISO-CHEK® Sampling System with Derivatizing Reagent, preloaded clear cassettes and jars of Derivatizing Solution (MOPIP in toluene).

Details

ISO-CHEK is the only filter-based sampling system that simultaneously traps and separates both monomers and oligomers at the point of collection for highly sensitive physical and chemical characterizations of diisocyanates including HDI, MDI, IPDI, HMDI, 2,4-TDI, and 2,6-TDI. The IRSST-developed ISO-CHEK offers rapid 15-minute sampling, stable samples, and a 40% reduction in sample preparation and analysis time compared to other methods. ISO-CHEK meets ASTM D5932-96 and D6561-00 specifications.

Attributes

Attributes
Cold Storage Recommended	Yes
Limited Shelf Life	Yes
Material	1 PTFE, 1 Glass Fiber
Filter Coating	9-(N-methylaminomethyl) anthracene (MAMA)
Diameter	37-mm
Cassette Type	3-piece Traditional Style Styrene

Specifications

Performance Profile

Collection Method	Dual filter cassette; 5-µm PTFE membrane traps aerosol phase, glass fiber filter impregnated with MAMA collects vapor phase
Sample Flow Rate	1 L/min
Sample Time	15 minutes
Derivatizing Reagent (filter coating for vapor phase)	9-(N-methylaminomethyl) anthracene (MAMA)
Derivatizing Solution (for aerosol phase)	1-(2-Methoxyphenyl) piperazine (MOPIP) Supplied in jars containing 5 ml of solution (0.5 mg MOPIP in 5 ml toluene)
Sample Stability	Can be stored at 39.2 F (4 C) for up to 10 days. Store and prepare in solvent-free environments. SKC recommends sample analysis as soon as possible.
Analysis	Reverse phase HPLC with UV and fluorescence detection
Quantitation Limit	0.15 ppb for 2,4-TDI, 2,6-TDI, 1,6-HDI, IPDI, MDI, HMDI monomer 1.5 ppb for 1,6-HDI and MDI oligomers
Limit of Detection	0.2 mg/m³ for 2,4-TDI and 2,6-TDI 0.6 mg/m³ for 1,6-HDI 0.3 (UV)/0.08 (FD) mg/m³ ** for MDI
