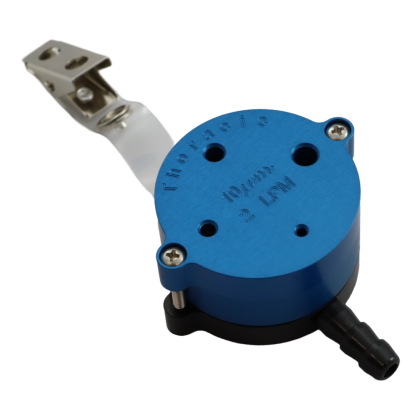

Parallel Particle Impactor (PPI), Aluminum, Thoracic, 2 L/min, Filter and Support Pad Not Included, Blue

Part Number:

225-381

Overview

This aluminum Reusable PPI® Sampler features four impactors arranged in parallel for precise thoracic dust sampling at 2 L/min that meets ISO 7708/CEN thoracic criteria. The blue color identifies it as a 2 L/min thoracic model. Requires substrates, filters, and supports purchased separately.

Details

Impaction-based thoracic model Reusable PPI Samplers contain four impactors arranged in parallel that provide the most precise match to the entire ISO 7708/CEN thoracic criteria when operated at 2 L/min. Thoracic Reusable PPI Samplers are ideal for metalworking fluids (NIOSH Method 5524 and TLV), hard metals with Co, and tungsten carbide as Co. Load with NIOSH Method 7908-specified quartz filter or with OSHA ID-113-specified MCE filter for sampling sulfuric acid. The user-loaded pre-oiled impaction substrates effectively trap larger particles for sample integrity.

Attributes

Attributes
Cut-point	10 μm
Flow Rate	2 L/min
Disposable	No
Type	Respirable

Specifications

Performance Profile

Sampling Rate	2 L/min
Sample Pump	AirChek Series
Sample Time	Dependent on method used
Sample Media	37-mm, Quartz filter or 37-mm, 2.0-µm PTFE filter (NIOSH 5524) or 37-mm, 0.8-µm MCE filter Back pressure on PTFE filters can vary within the same lot.
Tubing	1/4-in ID
Impaction Substrate	Four 3/8-in diameter pre-oiled porous plastic discs
Analysis	Gravimetric or chemical
Dimensions	Height: (clip to exhaust): 4.25 in (10.8 cm) Diameter: 1.8 in (4.6 cm) Depth: 1.2 in (3.0 cm)
Weight	3.3 oz (93.6 gm)
