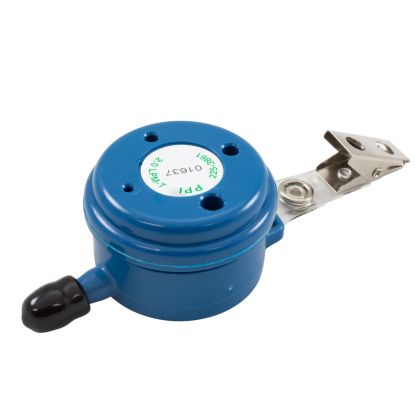

Parallel Particle Impactor (PPI), Disposable, Thoracic, 2 L/min, w/0.80 µm MCE Filter, Blue

Part Number:

225-3861

Overview

This plastic Disposable PPI® Sampler features four impactors arranged in parallel for precise respirable dust sampling at 2 L/min that meets ISO 7708/CEN thoracic criteria. It is preloaded with four porous plastic disc impaction substrates, one 37-mm 0.8-µm MCE collection filter, and one cellulose support. The blue color identifies it as a 2 L/min thoracic model. Single use.

Details

Impaction-based thoracic model Disposable PPI Samplers contain four impactors arranged in parallel that provide the most precise match to the entire ISO 7708/CEN thoracic criteria when operated at 2 L/min. All Disposable PPI Samplers contain pre-oiled impaction substrates that effectively trap larger particles for sample integrity. Thoracic model Disposable PPI Samplers are available empty or preloaded. The disposable plastic is single use, so no cleaning is required.

Attributes

Attributes
Cut-point	10 μm
Flow Rate	2 L/min
Disposable	Yes
Type	Thoracic
Available Preweighed	Yes, 225-3863-PW

Specifications

Performance Profile

Sampling Rate	2 L/min
Sample Pump	AirChek Series
Sample Time	Dependent on method used
Sample Media	37-mm, Quartz filter or 37-mm, 2.0-µm PTFE filter (NIOSH 5524) or 37-mm, 0.8-µm MCE filter Back pressure on PTFE filters can vary within the same lot.
Tubing	1/4-inch ID
Impaction Substrate	Four 3/8-in diameter pre-oiled porous plastic discs (preloaded in all Disposable PPIs)
Analysis	Gravimetric or chemical
Dimensions	Height: (clip to exhaust): 4.25 in (10.8 cm) Diameter: 1.8 in (4.6 cm) Depth: 1.2 in (3.0 cm)
Weight	1.1 oz (31.2 gm)
Shelf-life	18 months from date of manufacture
