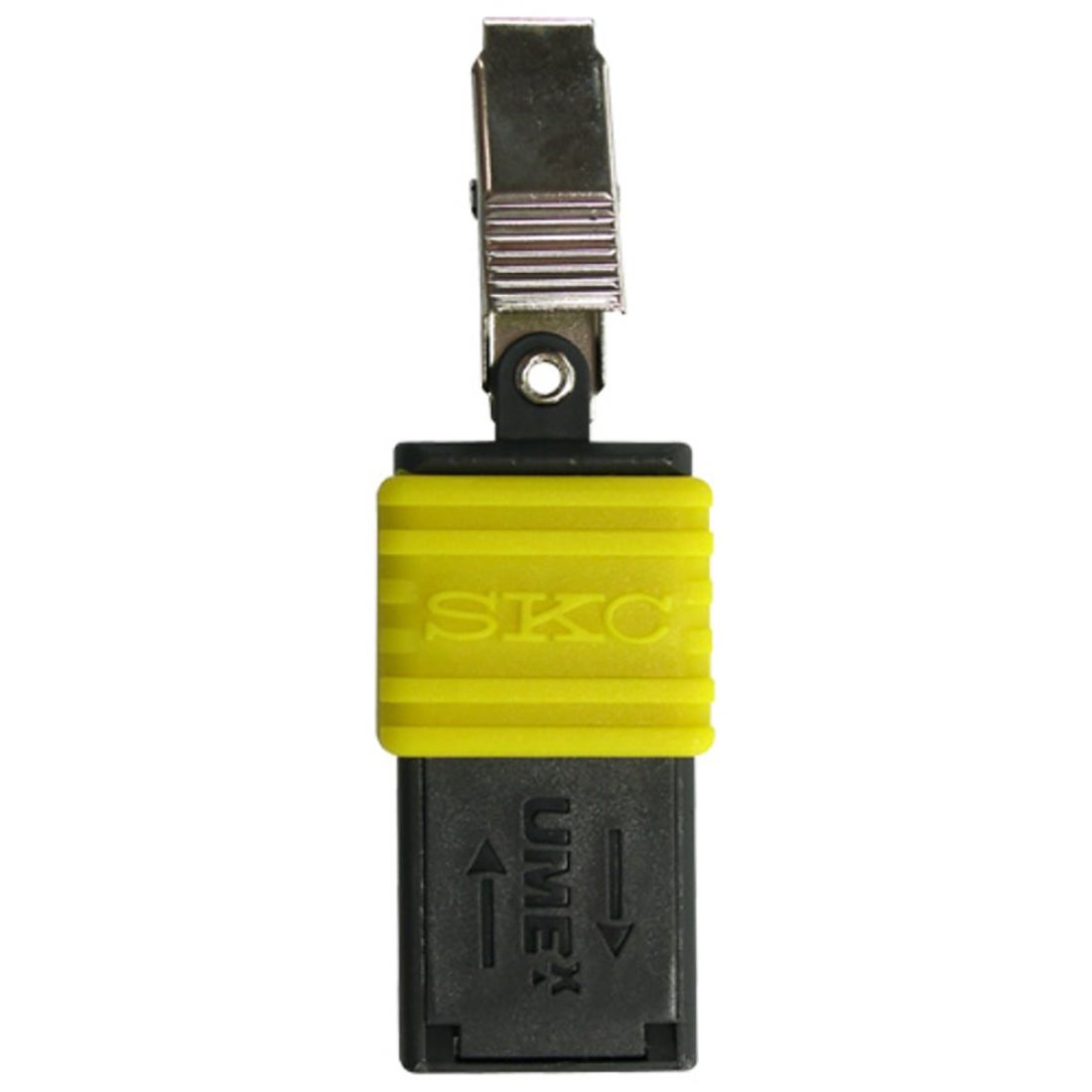

UMEx 200 Passive Sampler for Sulfur Dioxide and Nitrogen Dioxide, 10Pk

Part Number:

500-200

Limited Shelf Life

Overview

UMEx 200 Passive Sampler, for sulfur dioxide and nitrogen dioxide, with validated concentration range of 0.4 to 8 ppm for SO2 and 0.05 to 8 ppm for NO2; single use only.

Details

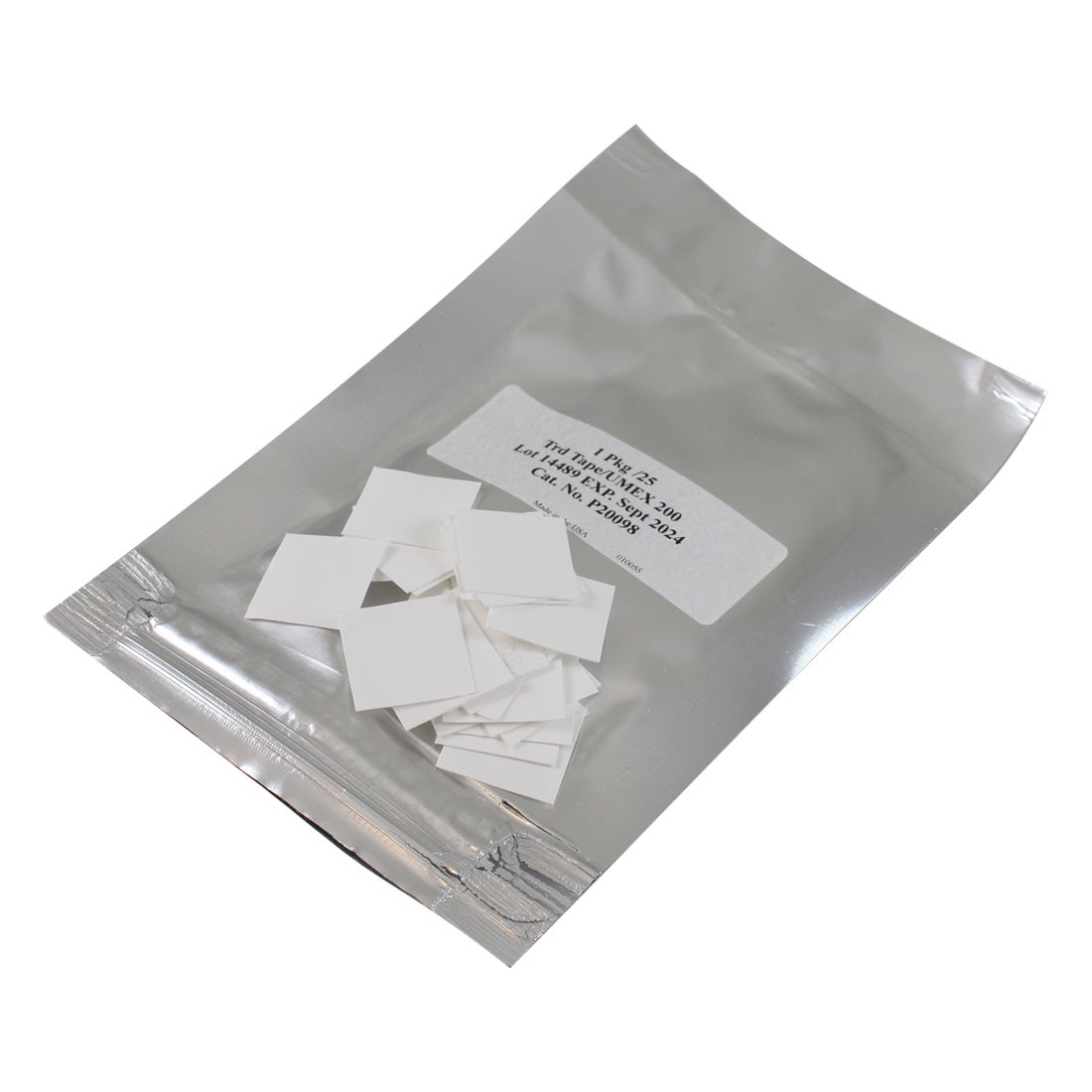

The single-use SKC UMEx 200 Passive Sampler effectively collects sulfur dioxide (SO2) at a sampling rate of 15.2 ml/min and/or nitrogen dioxide (NO2) at 17.3 ml/min. The sample medium (tape treated with triethanolamine [TEA]) and a "blank" section of tape are contained in one sampler saving time and money. The lightweight UMEx 200 contains the sample medium (tape treated with triethanolamine [TEA]) and clips in the breathing zone for easy occupational sampling. Samplers are provided in individual aluminized pouches that can be used to transport the sampler to a laboratory. The label on the outside of each pouch contains the shelf-life date for easy inventory management. Other UMEx Passive Samplers Available The same convenient and economical UMEx design is also available for sampling formaldehyde/other aldehydes (UMEx 100), ammonia (UMEx 300) and amines (UMEx 400).

Attributes

Attributes
Cold Storage Recommended	No
Limited Shelf Life	Yes
Type	Solvent Extraction
Chemical Hazard	Nitrogen Dioxide, Sulfur Dioxide
Sorbent	Treated Tape
Validation Level	Partial

Specifications

Performance Profile

Sampling Rate	SO₂: 15.2 ml/min with a relative standard deviation of 16.5% NO₂: 17.3 ml/min with a relative standard deviation of 11.4%
Validated Concentration Range	SO₂: 0.4 to 8 ppm NO₂: 0.051 to 8.5 ppm
Analysis Method	Solvent extraction and ion chromatography with conductivity detection
Lower Detection Limits	SO₂: 15 min: 1.8 ppm 8 hrs: 52 ppb 24 hrs: 17.4 ppb NO₂: 15 min: 0.2 ppm 8 hrs: 6.3 ppb 24 hrs: 2 ppb
Shelf-life	18 mos from date of manufacture at ambient temperature
Storage	Before use: Ambient temperature After use: Ambient temperature or at < 39.2 F (4 C) and analyze within 3 weeks
Accuracy	SO₂: ± 30% NO₂: ± 27%
Temperature Effects	SO₂: No effect on sampling rate from 20 to 25 C NO₂: No effect on sampling rate from 22 to 40 C
Humidity Effects	No effect from 20 to 80% relative humidity (RH)
Wind Velocity Velocity Effects	No effect from 5 to 100 cm/sec
Interferences	None identified
Dimensions	3.4 x 1.1 x 0.35 in (8.6 x 2.8 x 0.89 cm)
Weight	0.38 oz (10.9 gm)
Slide Cover	Yellow
