Vac-U-Chamber Pump Kit, Small (1 Liter)
Part Number:
210-4124
Overview

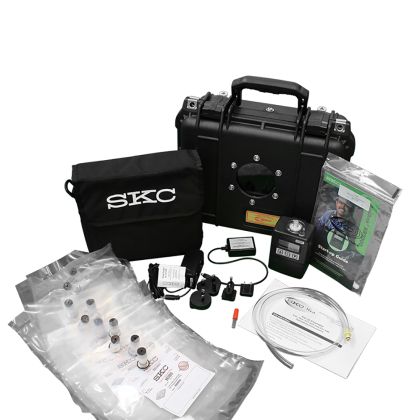

Complete Small (1 liter) Vac-U-Chamber Kit includes Standard AirChek® XR5000 sample pump, single charger, small Vac-U-Chamber, and 10 Tedlar sample bags Cat. No. 232-01.
The Vac-U-Chamber is a rigid air sample box that directly fills a sample bag using negative pressure provided by an air sample pump. The Vac-U-Chamber is available in four sizes and will not collapse under pressure from the vacuum. Use the Vac-U-Chamber for soil gas/vapor sampling, groundwater testing, stack sampling, ventilation studies, hazmat testing, and U.S. EPA Methods 18 and 0040.
| Flow Rate | 5 to 5000 ml/min |
|---|---|
| Touch Screen Operation | No |
| Battery Type (Power) | Li-ion |
| Approx. Run Time | 20 Hours at 2L/min |
| Connectivity | No |
| PC Compatible | No |
| Programmable | Yes |
| Compensates for Changes in Atmospheric Pressure | No |
| Compensates for Changes in Temperature | Yes |
| Constant Flow | Yes |
| Constant Pressure Mode | No |
| Automatic Flow Rate Verification | No |
| Intrinsic Safety | Yes |
| CE Marked | Yes |
| UKCA Marked | Yes |
Performance Profile
| Sampling Media | 1, 8, 10, or 25-L bag |
| Sampling Rate | User selectable |
| Sample Time | Varies |
| Sample Pump | Universal or XR5000 — 1 to 5 L/min |
| Analysis | Varies |
