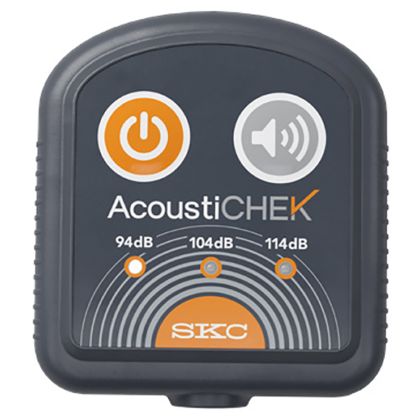

AcoustiCHEK Calibrator, Class 2
Part Number:
703-002
Overview
AcoustiCHEK Calibrator, Class 2, for 1/2-inch microphones, includes AA batteries and Certificate of Manufacturer Calibration.
The SKC AcoustiCHEK Calibrator is specifically designed for easy calibration of the SKC NoiseCHEK Dosimeter and SoundCHEK Essential/SoundCHEK Connect Sound Level Meters with ½-inch microphones.
| Type | Acoustic Calibrator |
|---|---|
| Class | Class 2 |
Performance Profile
Class 2 AcoustiCHEK Calibrator Cat. No. 703-002
- Output: 94, 104, and 114 dB
- Calibration Frequency: 1 kHz (± 1.7%)
- Accuracy/Tolerance: ± 0.4 dB
- Harmonic Distortion: < 3%
- Operating Temperature Range: 32 to 104 F (0 to 40 C)
- Dimensions: 3.1 x 2.7 x 1.2 in (7.8 x 6.8 x 3.0 cm)
- Weight: 4.6 oz (130 gm)
- Standards: IEC 60942:2017, BS EN IEC 60942:2018, ANSI S1.40 2006
