AirChek Essential 5-pack High Flow Pump Kit

Part Number:

220-3000-K5

Overview

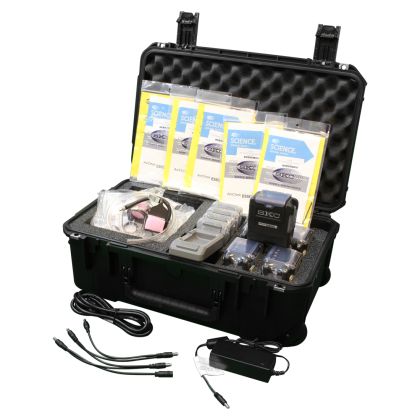

AirChek® Essential 5-pack High Flow Pump Kit, includes five each: pumps, Lite Cradles, and Filter Cassette Holders, one each: Multi Cradle Power Supply and Splitter, in a hard-sided case. AirChek Essential pumps contain Li-Ion batteries and are subject to special shipping regulations. AirChek Essential requires ¼-inch ID tubing.

Details

Low Price, Simple Operation Sample Pump with touch keypad; no operating manual needed! 5 to 5000 ml/min

Attributes

Attributes
Flow Rate	5 to 5000 ml/min
Touch Screen Operation	Yes
Battery Type (Power)	Li-ion
Approx. Run Time	40 + Hours at 2 L/min
Connectivity	No
PC Compatible	No
Programmable	No
Compensates for Changes in Atmospheric Pressure	Yes
Compensates for Changes in Temperature	Yes
Constant Flow	Yes
Constant Pressure Mode	No
Automatic Flow Rate Verification	No
Intrinsic Safety	Yes
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

Pump Type	Type P for personal sampling of airborne particles (ISO 13137:2022 compliant)
Nominal Flow Range	Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Pressure Drop Capability	- 5000 ml/min @ 20 in. water (0–5 kPa) - 4000 ml/min @ 30 in. water (0–7.5 kPa) - 3000 ml/min @ 40 in. water (0–10 kPa) - 2000 ml/min @ 50 in. water (0–12.5 kPa) - 1000 ml/min @ 60 in. water (0–15 kPa)
Flow Control System	Isothermal – corrects for back pressure, temperature, and atmospheric pressure
Flow Fault / Auto-Restart	Stops after 3–10 sec restricted flow, flashes red LEDs, shows fault icon; auto-restarts up to 5x within 5 min, or ends run if fault persists
Power Source	Rechargeable Li-Ion (7.4 V, 2.6 Ah, 19.2 Wh) or AC via cradle
Operating Time	- 8+ hrs @ 2000 ml/min, 16 in. water (4 kPa) - 8+ hrs @ 5000 ml/min, 20 in. water (5 kPa) - 40+ hrs @ 2000 ml/min* - 15+ hrs @ 5000 ml/min* - Indefinite w/ cradle
Charging Method	Lite Charging Cradle (Cat. No. 220-850) + Power Supply (Cat. No. 220-600) Multi-unit setup with Cat. No. 220-851 splitter and supply
Charging Time	Approx. 3 hours (depending on battery and discharge level)
Accuracy	- Flow: ±5% of set-point - Pressure: ±0.3 in Hg - Temp: ±1.0 °C - Time: ±0.002%
Temperature Range	- Operating: 32–104 °F (0–40 °C) - Charging: 32–113 °F (0–45 °C) - Storage: -4–113 °F (-20–45 °C)
Humidity Range	≤ 95% RH, non-condensing (operating & storage)
Altitude Compensation	Corrects for temperature (32–104 °F) and pressure up to 15,000 ft (4572 m) above and down to 4500 ft (1372 m) below sea level
Display	B&W display with elapsed sampling time
User Interface	Capacitive touch screen with locking option
Status LEDs	Blinking green = running Blinking red = fault
Sound Level	Avg. 51.7 dB at 3 ft (1 m) with 37-mm, 0.8-µm MCE filter
Tubing	¼-inch ID tubing
Dimensions	4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm)
Weight	19.4 oz (approx. 550 g)
Certifications / Markings	- Intrinsic Safety (SKC Cat. No. 220-3000 + Battery P75718) - Class I, II, III; Zone 0 AExia IIC T4 Ga - IECEx UL, ATEX, UKEX - CE 0539, UKCA 0843 - RoHS Compliant
Case Material	Polycarbonate with rubberized anti-static overmolding
Ingress Protection	IP6x (dust-tight enclosure)
Features	On-screen battery status, ergonomic design, secure clip, cradle charging, ultra-quiet operation
Media Compatibility	Sorbent tubes, filters, size-selective particulate samplers, impingers
Warranty	- Pump: 1-year limited - Battery: 2-year limited (on pumps purchased on or after Feb 13, 2025)
