AirChek TOUCH Basic 5-pack Pump Kit

Part Number:

220-5000TC-BK5

Overview

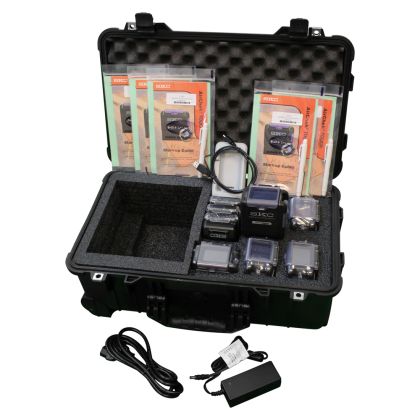

AirChek® TOUCH Basic 5-pack Kit includes 5 pumps with Li-Ion battery packs, 5 screwdriver sets, 4 Standard Charging Cradles, 1 Enhanced Charging Cradle (e-Cradle), and power supply with cord, in a hard-sided carry case. Low flows from 5 to 500 ml/min require a low flow kit. AirChek TOUCH pumps contain Li-Ion batteries and are subject to special shipping regulations. AirChek TOUCH requires ¼-inch ID tubing.

Details

The SKC AirChek TOUCH air sampling pump is the first personal sample pump with color touch screen navigation. Ultra-quiet and tough AirChek TOUCH provides extended flows from 5 to 5000 ml/min and high back pressure compensation for all your IH applications. Programming continuous, timed, and intermittent sampling is easy – no instruction manual needed. A powerful Li-Ion battery provides long run times. Charging, flow rate verification, and PC communication are made easy with all-in-one cradles. Use AirChek TOUCH with DataTrac® Pro Software for easy pump programming and advanced reporting. The AirChek TOUCH air sampling pump is UL Listed for intrinsic safety.

Attributes

Attributes
Flow Rate	5 to 5000 ml/min
Touch Screen Operation	Yes
Battery Type (Power)	Li-ion
Approx. Run Time	40 + Hours at 2 L/min
Connectivity	With included e-Cradle and USB cable
PC Compatible	Yes
Programmable	Yes
Compensates for Changes in Atmospheric Pressure	Yes
Compensates for Changes in Temperature	Yes
Constant Flow	Yes
Constant Pressure Mode	No
Automatic Flow Rate Verification	Yes
Intrinsic Safety	Yes
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

Flow Range	Constant flow from 1000 to 5000 ml/min (low flow from 5 to 500 ml/min requires holder)
Compensation Range (back pressure capability)	5000 ml/min at 20 inches water back pressure 4000 ml/min at 30 inches water back pressure 3000 ml/min at 40 inches water back pressure 2000 ml/min at 50 inches water back pressure 1000 ml/min at 50 inches water back pressure
Flow Control System	Isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
Power	Removable rechargeable Lithium-ion (Li-Ion) battery, 7.4 V 2.6 Ah, 19.2 Wh or AC using charging cradle
Run Time	20 hours at 2000 ml/min† 10 hours at 5000 ml/min† Indefinite run from charging cradle
Charging Time (varies with battery capacity and level of discharge)	Approximately 3 hours
Accuracy	Flow control: ± 5% of set-point after flow rate verification to desired flow Atmospheric pressure: ± 0.3 in Hg Temperature: ± 1 C
Temperature Ranges	Operating: 32 to 104 F (0 to 40 C) Charging: 32 to 113 F (0 to 45 C) Storage: -4 to 113 F (-20 to 45 C)
Humidity Ranges	Operating: < 95% RH, non-condensing Storage: < 95% RH, non-condensing
Altitude	Corrects flow for changes in temperature (32 to 104 F/ 0 to 40 C) and ambient pressure up to 15,000 feet (4,572 meters) above and down to 4,500 feet (1,372 meters) below sea level
Display/parameters	Color LCD/real-time flow rate, ambient temperature, ambient pressure, accumulated volume, elapsed time
User Interface	Resistive touch screen with auto-dim and locking options
Sound Level	Average 51.7 dB at 3-ft (1-m) distance using a 37-mm 0.8-µm MCE filter cassette
Dimensions	4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm)
Weight	19.4 oz (550 gm)
Certifications	Intrinsic safety: UL class I, Div. 1, Groups A, B, C, and D; Class II, Div 1, Groups E, F, and G; Class III, Div. 1, hazardous locations when used with SKC battery pack model P75718; T-code T3C. Exia; Class I, Zone 0 Gp IIC (SKC Cat. No. 220-5000TC) RoHS compliant CE Marked
Case Material	Polycarbonate with rubberized anti-static overmolding
