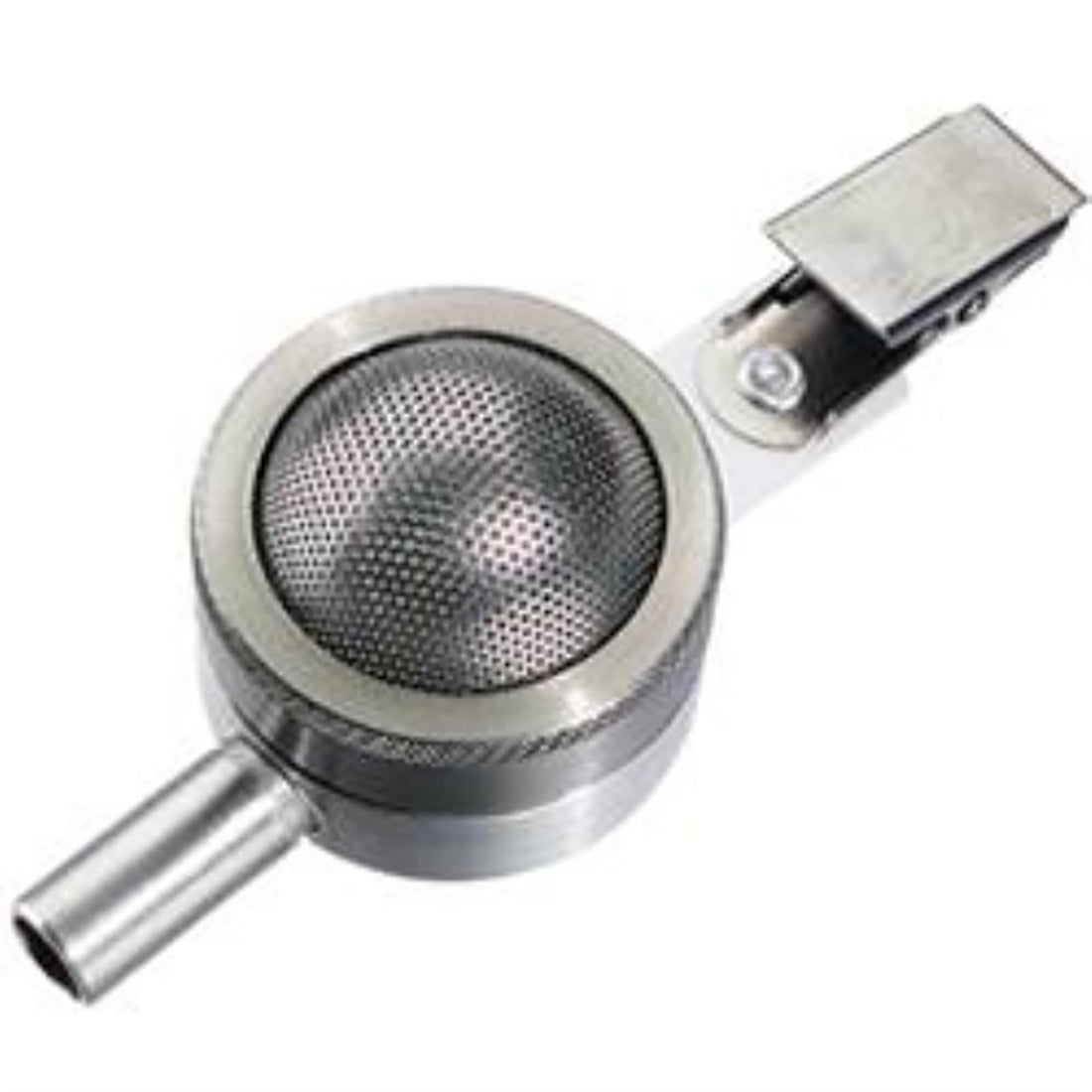

Button Aerosol Sampler
Part Number:
225-360
Overview
Button Aerosol Sampler, low-level personal or area inhalable PM sampling; requires a 25-mm filter with pore size of 1.0 µm or higher to reduce back pressure.
The Button Sampler, with its porous curved-surface inlet, is designed to improve the collection characteristics of inhalable dust, including bioaerosols for viable or non-viable analysis. Use the Button Sampler for low-level personal or area sampling of inhalable dust.
| Cut-point | 100 μm |
|---|---|
| Flow Rate | 4 L/min |
| Disposable | No |
| Type | Inhalable |
Performance Profile
| Flow Rate | 4 L/min* |
| Sampling Inlet | Conductive stainless steel |
| Body | Aluminum |

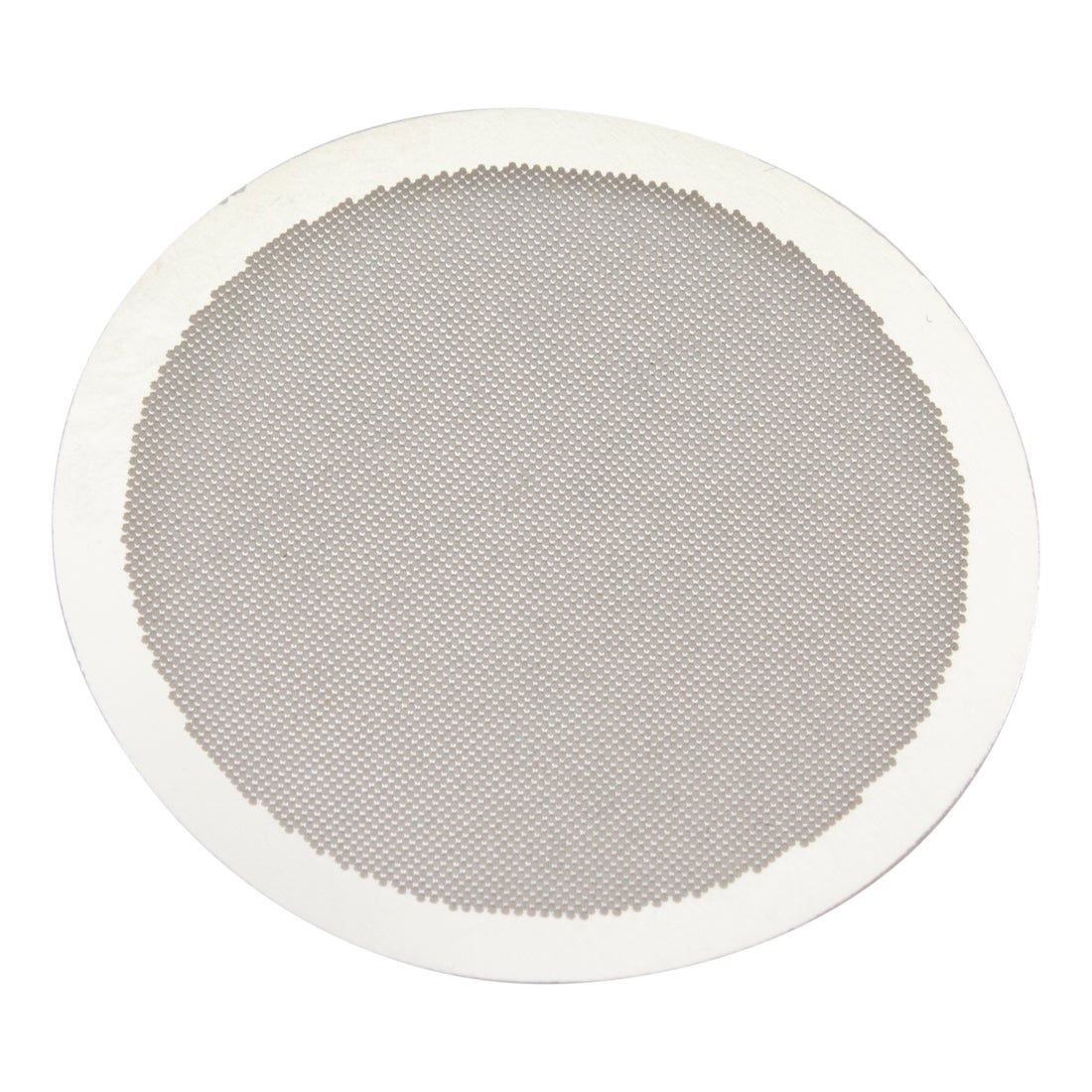

| Support Screen | Stainless steel |
| Clip | Stainless steel and nylon |

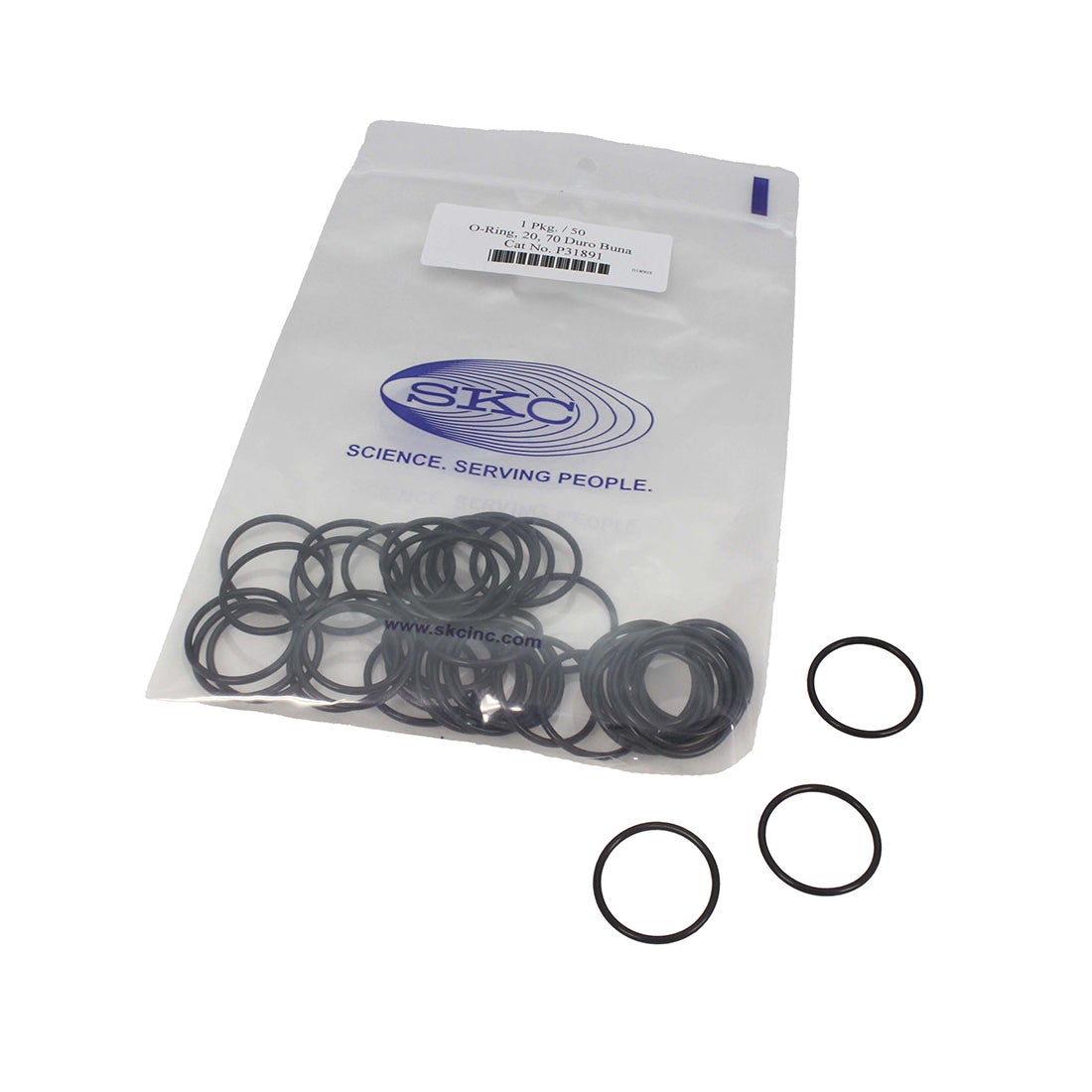

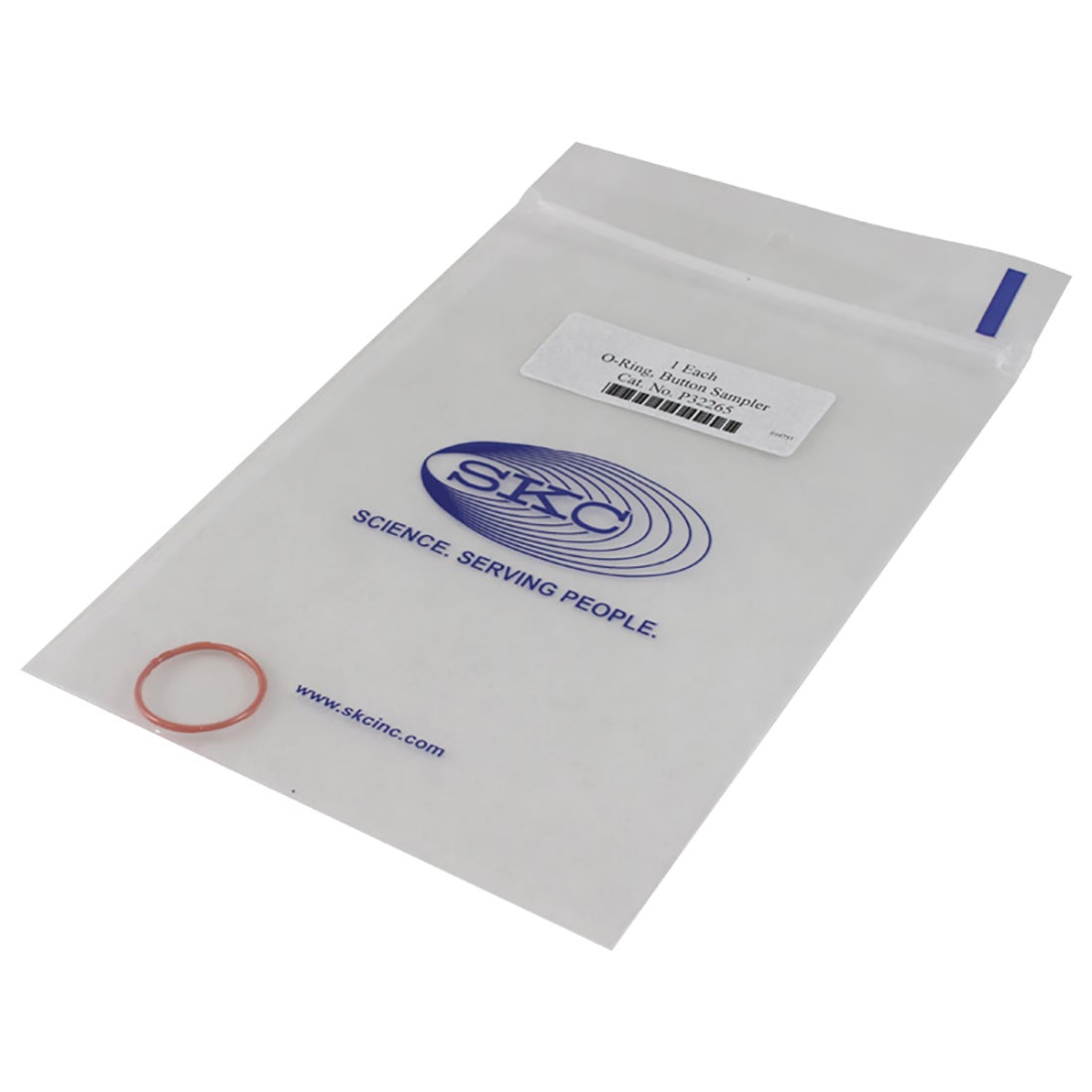

| O-rings | PTFE (inlet) and BUNA-N (body) |
| Filter | 25 mm** |
| Inhalable Dust | Gravimetric (GR) |
| Fungal Spores | Epifluorescence microscopy, immunoassay, or polymerase chain reaction (PCR) |
| Metals | X-ray Fluorescence (XRF) |
| Tubing | 1/4-in ID |
| * | The Button Sampler closely follows the ISO 7708/CEN inhalability curve at 4 L/min. This provides optimum sampling. |
| ** | A filter pore size of 1.0 µm or larger is recommended for use with the Button Sampler to reduce back pressure. |
