Button Aerosol Sampler and IVF Pro, Calibration Adapter
Part Number:
225-361
Overview

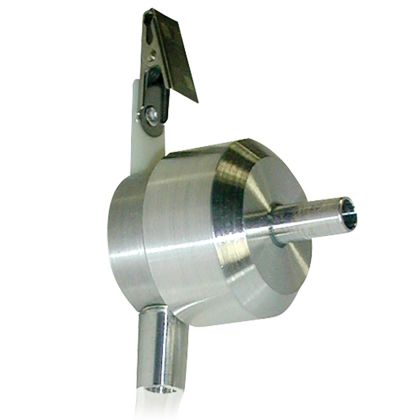

Button Sampler/IFV Pro Sampler Calibration Adapter.
The Button Sampler, with its porous curved-surface inlet, is designed to improve the collection characteristics of inhalable dust, including bioaerosols for viable or non-viable analysis. Use the Button Sampler for low-level personal or area sampling of inhalable dust.
| Type | Calibration Adapter |
|---|
Performance Profile
| Flow Rate | 4 L/min* |
| Sampling Inlet | Conductive stainless steel |
| Body | Aluminum |
| Support Screen | Stainless steel |
| Clip | Stainless steel and nylon |
| O-rings | PTFE (inlet) and BUNA-N (body) |
| Filter | 25 mm** |
| Inhalable Dust | Gravimetric (GR) |
| Fungal Spores | Epifluorescence microscopy, immunoassay, or polymerase chain reaction (PCR) |
| Metals | X-ray Fluorescence (XRF) |
| Tubing | 1/4-in ID |
| * | The Button Sampler closely follows the ISO 7708/CEN inhalability curve at 4 L/min. This provides optimum sampling. |
| ** | A filter pore size of 1.0 µm or larger is recommended for use with the Button Sampler to reduce back pressure. |
