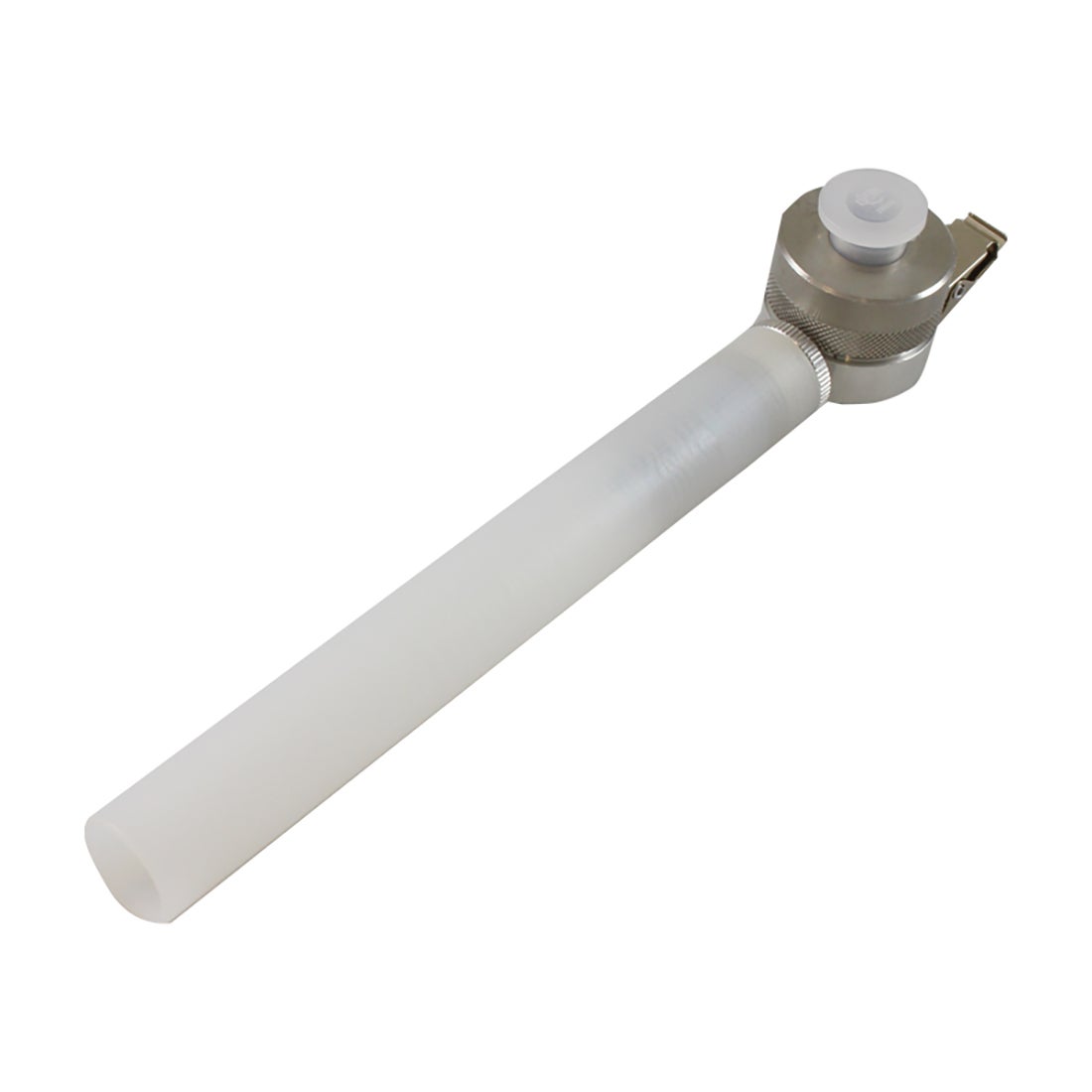

IFV Pro Sampler

Part Number:

225-49

Overview

IFV Pro Sampler includes sampling head (aerosol sampler body, cassette, and front plate), protective tube cover, cassette cap, 10 extra tube holders (rubber sleeves), and cassette transport container, requires 25-mm filter and sorbent tube.

Details

The IFV Pro Sampler collects mixed-phase (aerosol and vapor) contaminants such as pesticides, polyaromatic hydrocarbons (PAHs), inorganic acids, and explosives. The IFV Pro simultaneously collects the aerosol phase on a 25-mm filter and the vapor phase in an 8 x 110-mm sorbent tube at a flow rate of 1 L/min. Sampler includes sampling head, protective tube cover, cassette cap, and cassette transport container; requires 25-mm filter and 8 x 110-mm sorbent tube.

Attributes

Attributes
Cut-point	100 μm
Flow Rate	1 L/min
Disposable	No
Type	Inhalable Mixed-phase

Specifications

Performance Profile

Flow Rate	1 L/min
50% Cut-point	100 µm at 1 L/min inhalable fraction
Material	Sampling Head: Stainless steel front plate and filter cassette with 10.6-mm dia. inlet; aluminum clip, housing, and outlet Tube Holder:* Black rubber Protective Tube Cover: Plastic
Maximum Operating Temperature	392 F (200 C) suitable for autoclaving and solvent washing
Filters	25-mm glass fiber, quartz, or coated filter (see guide below)
Sorbent Tubes	8 x 110-mm size. Dependent upon compound of interest (see guide below)
Tubing	¼-inch ID
Weight	2.4 oz (68 gm)
Dimensions	8.5 x 1.2 in (21.6 x 3.17 cm)

* Designed to meet the inhalable convention based on the scaling down technique described in the Final Report on research carried out under NIOSH-CDC Grant No. RO1-OH 03687-03, “Development of New Personal Aerosol Samplers,” Vincent, J.H., et al., 2003.

ACGIH IFV Designation

ACGIH has assigned a TLV with Inhalable Fraction and Vapor (IFV) designation to over 50 compounds that exert sufficient vapor pressure such that the contaminant may be present in both particle and vapor phases, with each phase contributing a significant portion of the dose. IFV Pro allows for efficient sampling of compounds with this designation (see guide below) or compounds found in mixed phases due to work activities or processes.
