Deployable Particulate Sampler System (DPS), PM10

Part Number:

100-3901

Overview

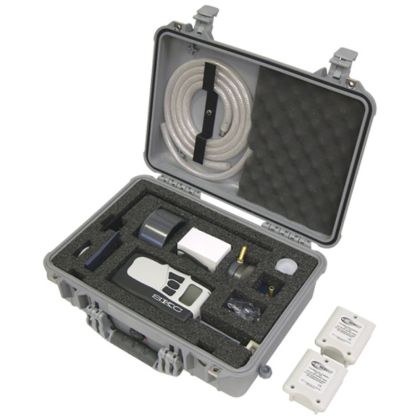

PM10 Kit– DPS System includes sample pump with battery connection case, charger (100-240 V), 2 external battery assemblies with adapters (packaged separately), IMPACT sampling head, 2 filter cassettes, calibration adapter, rain cover for sampling head, 25 disposable impaction discs, filter cassette opener, tubing with quick-connect fitting, and mounting bracket, in a heavy-duty lockable carry case.

Details

The Deployable Particulate Sampler System fits in one compact, portable carry case and is ideal for ambient and indoor air sampling for PM10 or PM2.5. The system includes a fully programmable Li-Ion-powered sample pump for 24-hour sampling, specially designed sampling head, and accessories for fast deployment and effective sampling.

Attributes

Attributes
Flow Rate	5 to 15 L/min
Touch Screen Operation	No
Battery Type (Power)	Li-ion
Approx. Run Time	24+ Hours at 10 L/min
Connectivity	With USB Cable purchased separately
PC Compatible	Yes
Programmable	Yes
Compensates for Changes in Atmospheric Pressure	Yes
Compensates for Changes in Temperature	Yes
Constant Flow	Yes
Constant Pressure Mode	No
Automatic Flow Rate Verification	Yes
Intrinsic Safety	No
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

See Reference below for DPS performance testing.

Particle Collection Size	PM10 or PM2.5 (model dependent)
Flow Rate	10 L/min
Run Time	> 24 hrs (one battery charge)
Power	Rechargeable Li-Ion battery, 7.4 V, 12-Ah capacity, 88.8 Wh
Case Dimensions	18.5 x 14.1 x 6.9 in (47 x 36 x 18 cm)
System Weight	13 lbs (5.9 kg)
Impaction Substrate	37-mm, pre-oiled porous plastic disc
Collection Filter	47-mm quartz or PTFE

Reference
Patterson, S. L., Rusiecki, J. A., Barnes, S. L., Heller, J. M., Sutphin, J. B., Kluchinsky Jr., T. A., “Effectiveness, Suitability, and Performance Testing of the SKC Deployable Particulate Sampler (DPS) as Compared to the Currently Deployed Airmetrics MiniVol Portable Air Sampler,” Journal of Environmental Health, Vol. 73, No. 3, pp. 16 to 22
