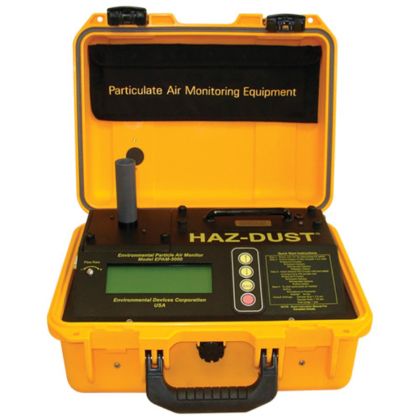

EPAM-5000 Monitor Kit, 2.5 µm Impactor

Part Number:

770-202

Overview

EPAM-5000 (datalogging) Environmental Particulate Air Monitor Kit with 2.5-µm impactor, lead acid battery, 110-240 V charger/adapter, shoulder strap, carry case, DustComm Pro software, and computer interface cable. Measures 0.001 to 20.0 mg/m³; 0.01 to 200 mg/m³ EDC Cat. No. EPAM-5000 W/2.5

Details

The EPAM-5000 portable environmental PM monitor provides real-time determinations and data recordings using interchangeable size-selective impactors for PM10, PM2.5, and PM1.0; measures TSP without impactor. The EPAM-5000 is ideal for ambient, environmental, and indoor air quality investigations and baseline surveys.

Attributes

Attributes
Manufacturer	Environmental Devices Corporation
Type	Ambient PM
Flow Rate	4 L/min
Particle Size Range	0.1 to 100 µm
Sensing Range	0.001 to 20 mg/m³
Simultaneous Gravimetric Sampling	Yes
Infield Calibration Verification	Yes
Datalogging	Yes
Connectivity	Optional wireless data transmission available

Specifications

Performance Profile

Sensing Range	0.001 to 20 mg/m³
	0.01 to 200 mg/m³ (optional); specify when ordering
	0.10 to 2000 mg/m³ (optional); specify when ordering
Particle Size Range	0.1 to 100 µm
Precision	± 0.003 mg/m³ (3 µg/m³)
Accuracy	± 10% to filter gravimetric SAE fine test dust
Sampling Flow Rate	4 L/min
Filter Cassette Holder (optional accessory)	47 mm, FRM Style 37 mm or 25 mm (optional)
Alarm Output	90 dB at 3 ft
Analog Output	0 to 2 vdc
Recording Time	1 sec to 15 mos
Sampling Rate	1 sec, 10 sec, 1 min, and 30 min
Data Storage	21,600 data points
Security Code	4-digit combinations
Memory and Time Storage	> 5 years
Data Display	Concentration in mg/m³ and TWA, MAX, MIN, STEL, Date, and Time
Digital Output	RS-232
Operating Temperature	14 to 122 F (-10 to 50)
Storage Temperature	-4 to 158 F (-20 to 70 C)
Power	Rechargeable lead-acid and interchangeable battery
Operating Time	> 24 hrs on battery; continuous on AC
Charging Time	Approx. 22 hrs
Dimensions (case)	14 x 6 x 10 in ( 35.6 x 15.2 x 25.4 cm)
Weight	10 lbs (4.5 kg)
