main product photo

Pocket Pump TOUCH w/o Bluetooth, w/Charger

Part Number:

220-1000TCNB-C

- +
Add to Compare
Overview

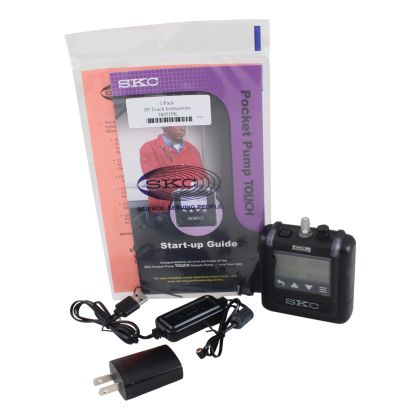

Pocket Pump® TOUCH without BLE with Charger includes pump and single charger (USB cable and wall cube).
The Pocket Pump TOUCH personal air sample pump provides low flows from 20 to 500 ml/min for gas and vapor sampling. Pocket Pump TOUCH features touch screen operation, Bluetooth communication with the SmartWave mobile app and PC-based DataTrac® Pro Software, powerful Li-Ion battery for 20+ hours run time at 500 ml/min, exhaust port for direct filling of sample bags, AC Adapter/charger, and more in a miniature pump that fits in your pocket. Pocket Pump TOUCH is UL Listed for intrinsic safety.
Attributes
Flow Rate20 to 500 ml/min
Touch Screen OperationYes
Battery Type (Power)Li-ion
Approx. Run Time20+ Hours at 500 ml/min
ConnectivityNo
PC CompatibleNo
ProgrammableYes
Compensates for Changes in Atmospheric PressureYes
Compensates for Changes in TemperatureYes
Constant FlowYes
Constant Pressure ModeYes
Automatic Flow Rate VerificationNo
Intrinsic SafetyYes
CE MarkedYes
UKCA MarkedYes


Performance Profile

Flow Range in Constant Flow Mode20 to 500 ml/min
Compensation Range in Constant Flow Mode20 to 500 ml/min up to 20 inches water back pressure
Pressure Range in Constant Pressure Mode1 to 20 inches water
Flow Control SystemCorrects for changes in back pressure, temperature, and atmospheric pressure
PowerRemovable rechargeable lithium-ion (Li-Ion) battery, 3.7 V, 2.6 Ah, 9.6 Wh or USB charger
Run Time (Li-Ion)20+ hrs at 500 ml/min up to 20 inches water back pressure, extended run times available with charger
Tested using 37-mm 0.8-μm MCE filter with new pump and battery. Pump performance may vary.
Charging Time
(varies with battery capacity and level of discharge)		< 10 hrs (< 4.5 hrs to 80%)
AccuracyConstant flow control: ± 5% of set-point or ± 3 ml/min, whichever is higher
Atmospheric pressure: ± 0.3 in Hg
Temperature: ± 1.0 C
Real-time clock: ± 1%
Constant pressure mode: Reading ± 0.5 inch water
Temperature RangesOperating: 32 to 113 F (0 to 45 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 113 F (-20 to 45 C)
Humidity Range< 95% RH, non-condensing
AltitudeCorrects flow for changes in temperature (32 to 113 F [0 to 45 C]) and ambient pressure up to 15,000 feet (4,572 meters) above and down to 2,300 feet (701 meters) below sea level
Flow FaultAfter 3 to 10 seconds of restricted flow, pump stops running, elapsed time stops, status LEDs flash red, and pump displays fault icon. After 20 seconds in fault, auto-restart is attempted up to 5 times unless full airflow is restored prior to that. If full airflow is not corrected during 5 restart attempts within 5 minutes, the pump ends the run and displays Sample Summary.
Display Type/ParametersHigh-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time
User InterfaceEight-area capacitive touch screen with auto-dim and locking options
Dimensions3.2 x 3.8 x 1.5 in (8.1 x 9.7 x 3.8 cm)
Weight8.3 oz (235 gm)
Certifications/MarkingsPocketPump Touch Certifications and Markings
Case MaterialIP 64-rated case, polycarbonate with rubberized anti-static overmolding
Communications with PCLow-energy Bluetooth, requires DataTrac Pro for Pocket Pump TOUCH USB Bluetooth Adapter (Cat. No. 877-94)
TubingRequires 1/4-in ID tubing
