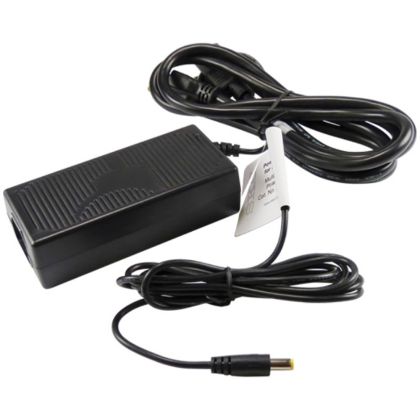

PowerFlex Power Supply and Cord

Part Number:

P22310

Overview

Replacement PowerFlex® CE-marked Power Supply, for 5-station PowerFlex Charger. PowerFlex is CE marked when used with this power supply provided by SKC.

Details

PowerFlex Chargers use reflex charging technology that delivers charging pulses of current in between short reverse pulses that slightly discharge the battery. PowerFlex Chargers use pump-specific cables to charge sample pumps and are ideal for use with NiMH and NiCad batteries. Use PowerFlex Chargers to charge up to four different SKC pump models simultaneously.

Attributes

Attributes
Compatible with	5-Station PowerFlex Charger, 223-1000

Specifications

Performance Profile

Dimensions	Five-station	4.4 x 5.5 x 1.4 in (11.1 x 14 x 3.5 cm)
	Single-station	1.2 x 2.3 x 4.6 in (3 x 5.8 x 11.7 cm)
Weight	Five-station	1.1 lbs (0.5 kg)
	Single-station	4 oz (0.1 kg)
Status LEDs	Steady Red = Charging
	Steady Green = Maintenance trickle charge
Input Voltage	100-240 V
Compatibility	For use with U.S.-produced pump models only: Universal Series (4 and 5 cell), AirChek 2000, AirChek 52, and 222. Not compatible with EX or ATEX-approved models
Charging Time	Approximately 6 to 8.5 hrs. Typical charging times vary with model.
Intrinsic Safety	Not intended for use in explosive or hazardous locations
Approvals	Power supply is cUL US Listed for electrical safety and is CE marked. PowerFlex is not intended for use in explosive or hazardous locations.
