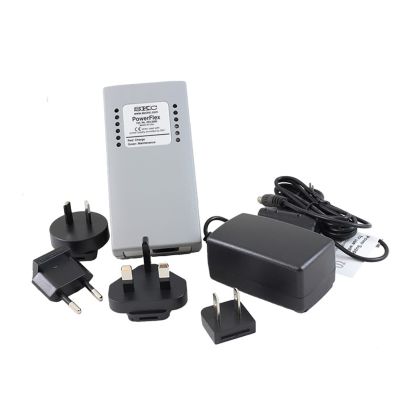

PowerFlex Single Battery Charger, 100-240 V, includes power supply and cord; requires pump specific cable

Part Number:

223-2000

Overview

PowerFlex® Single battery charger, 100-240 V, includes power supply and cord; purchase pump-specific cable(s) separately from the following list: Cat. No. 223-1001 for AirChek® 2000, Cat. No. 223-1002 for Universal (5-cell), Cat. No. 223-1003 for Universal (4-cell, MSHA), Cat. No. 223-1004 for AirChek 52, and Cat. No. 223-1005 for 222 Series Low Flow for U.S.-produced pump models only, not compatible with EX and ATEX-approved models.

Details

PowerFlex Chargers use reflex charging technology that delivers charging pulses of current in between short reverse pulses that slightly discharge the battery. PowerFlex Chargers use pump-specific cables to charge sample pumps and are ideal for use with NiMH and NiCad batteries. Use PowerFlex Chargers to charge up to four different SKC pump models simultaneously.

Attributes

Attributes
Compatible with	AirChek 2000, Universal XR, AirChek 52, 222 Series Pumps
Provides PC Connection	No
Requires Power Supply Sold Separately	No
Requires Pump Specific Cable	Yes
Number of Cables Needed	1
Battery Type Supported	NiMH, NiCad
Voltage	100-240 V
Compatible with EX or ATEX models	No

Specifications

Performance Profile

Dimensions	Five-station	4.4 x 5.5 x 1.4 in (11.1 x 14 x 3.5 cm)
	Single-station	1.2 x 2.3 x 4.6 in (3 x 5.8 x 11.7 cm)
Weight	Five-station	1.1 lbs (0.5 kg)
	Single-station	4 oz (0.1 kg)
Status LEDs	Steady Red = Charging
	Steady Green = Maintenance trickle charge
Input Voltage	100-240 V
Compatibility	For use with U.S.-produced pump models only: Universal Series (4 and 5 cell), AirChek 2000, AirChek 52, and 222. Not compatible with EX or ATEX-approved models
Charging Time	Approximately 6 to 8.5 hrs. Typical charging times vary with model.
Intrinsic Safety	Not intended for use in explosive or hazardous locations
Approvals	Power supply is cUL US Listed for electrical safety and is CE marked. PowerFlex is not intended for use in explosive or hazardous locations.
