Part Number: 224-52-S

AirChek 52 Sample Pump Starter Kit Overview

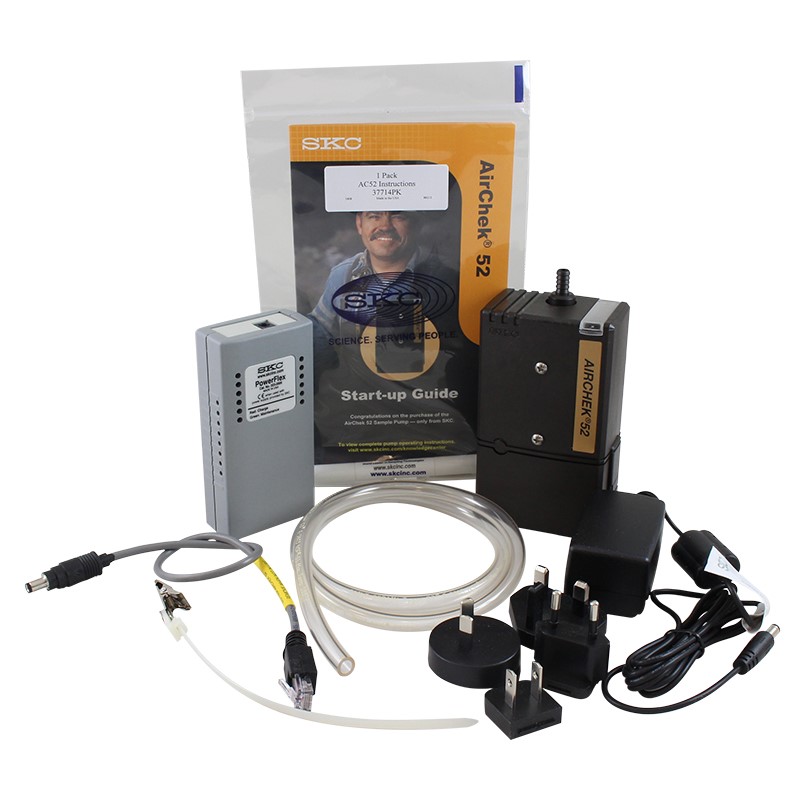

AirChek 52 Starter Kit includes pump as described above, single PowerFlex charger with cable, 3 feet (0.9 meter) of Tygon tubing, and collar clip with cable tie
Flow range: Constant flow 5 to 3000 ml/min
Low flows from 5 to 500 ml/min require a low flow kit.

The AirChek 52 personal air sampling pump offers a 5 to 3000 ml/min flow range and 12+ hours run time for sampling particulates and gases/vapors. The pump is ideal for use with sorbent tubes, filter cassettes, cyclones, PPIs, or impingers.
The AirChek 52 air sampling pump is UL Listed for intrinsic safety.



Performance Profile

Flow Range

1000 to 3000 ml/min
(5 to 500 ml/min requires All-in-One adjustable tube holder or Constant Pressure Controller [CPC] and Multiple Adjustable Tube Holder accessories)
Flow Control
 Holds constant flow to ± 5% of set-point after calibration
Compensation Range 1000 ml/min up to 25 inches water back pressure
2000 ml/min up to 25 inches water back pressure
2500 ml/min up to 20 inches water back pressure
3000 ml/min up to 15 inches water back pressure

  Typical Back Pressure of Sampling Media (inches water)


Filter/Pore Size (µm)		 Flow Rate (L/min)
1.0 1.5 2.0 2.5
25-mm MCE/0.8 6 9 12 15
25-mm MCE/0.45 14 22 28 35
37-mm MCE/0.8 2 3 4 5
37-mm PVC/5.0 1 1 2 2

Compare the information in this table to pump compensation range to determine appropriate applications.

Run Time


NiMH Battery: 12+ hrs minimum at 2000 ml/min and up to 25 inches water back pressure; dependent on media used. See Table 1.
Power Supply Rechargeable 4.8-V nickel-metal hydride (NiMH) battery pack, 3.3-Ah capacity or
A battery eliminator is available (see Ordering Information); use voids the UL Listing for intrinsic safety.
Battery Charging Time
(varies with battery capacity
and level of discharge)
 6 to 8.5 hrs using PowerFlex Charger
Temperature Operating: 32 to 104 F (0 to 40 C)
Storage: -4 to 113 F (-20 to 45 C)
Charging: 50 to 113 F (10 to 45 C)
Humidity 0 to 95% non-condensing
Flow Fault

If pump is unable to compensate for longer than 15 seconds due to excessive back pressure, the pump enters flow fault. During flow fault, the pump stops, the fault icon appears on the display, and elapsed time remains on the display. Auto-restart is attempted up to 5 times. Elapsed time information will be lost on restart.
Low Battery Fault LCD displays low battery icon and pump shuts down. LCD remains on.
LCD Time Display LCD display shows elapsed pump run time in minutes up to 99,999.
LCD Indicator LCD always remains on. Displayed elapsed run time information resets when pump is started.
Noise Level

62.5 dBA* - pump without case
55 dBA* - pump housed in noise-reducing case (optional accessory Cat. No. 224-96C)

* Pump operating at 2 L/min with a 37-mm, 0.8-µm MCE filter cassette measured at 3 ft (1 m) from pump
RFI/EMI Shielding Complies with requirements of EN 55022 1987 Class
B, and EN 50082-1:1992
Frequency range of radiated susceptibility test was
27 to 1000 MHz.
CE marked
Intrinsic Safety UL Listed for Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and, Class III, Temperature Code T3C. ATEX-approved models available; contact SKC
Dimensions 5 x 3 x 1.75 in (12.7 x 7.6 x 4.4 cm)
Weight 20 oz (567 gm)
Multiple-tube Sampling Adjustable tube holder accessory allows user to take up to four simultaneous samples at flows from 5 to 500 ml/min. CPC required
Tubing Requires 1/4-in ID tubing

Protect sample pump from weather when in use outdoors.
Weather enclosures for outdoor pump use are available. Contact SKC.

  • Pump Flow Rate : 5 to 3000 ml/min
  • PC Compatible : No
  • Programable : No
  • Intrinsic Safety : Yes
  • Battery Type (Power) : NiMH
  • Approx Run Time : 12

AirChek 52 Low Flow Capabilities
The full range of flow rates is available in
one lightweight, low-cost, heavy-duty sampler.


The AirChek 52 Sample Pump is a fully versatile sampler that can be used for low flow (5 to 500 ml/min) sampling. Use the pump with the All-in-One Adjustable Tube Holder with built-in Constant Pressure Controller (CPC) for single-tube sampling or with a multiple Adjustable Tube Holder and the CPC accessory (Cat. No. 226-26-CPC) for multiple tube sampling.

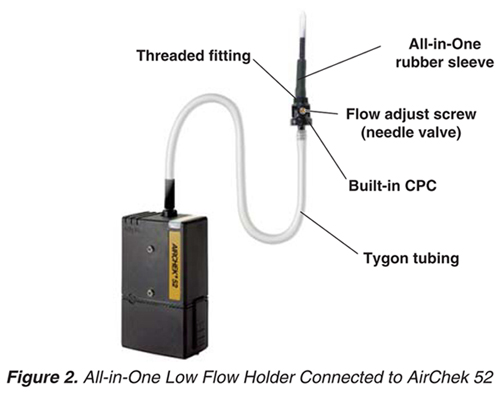

All-in-One Low Flow Holder connected to Airchek 52

For multiple tubes: Simple to use, the CPC fits into the sampling train tubing, allowing the pump to operate in a constant pressure mode. In the low flow mode, a multiple adjustable tube holder can be used to collect up to four tube samples simultaneously and at different flow rates. The flow rate at each intake of the adjustable tube holders can be set from 5 to 500 ml/min (dependent on back pressure). Multiple-tube sampling reduces time in the field and uses fewer pumps.


Lightweight, Durable

Measuring approximately 5 x 3 x 1.75 inches (12.7 x 7.6 x 4.4 cm) and weighing only 20 ounces (567 grams), the small size, light weight, and durable construction allows the AirChek 52 to withstand the rigors of on-worker use time and time again. Rechargeable NiMH or NiCad batteries provide a reliable power source which can be restored overnight. The AirChek 52 is the lightweight, inexpensive workhorse pump designed for rugged and repeated use. Now the full range of flow rates is available in one lightweight, low-cost, heavy-duty sampler to use with:

  • Sorbent sample tubes and Long-duration detector tubes for collecting most hazardous chemical gases and vapors from the air
  • Cyclones for collecting respirable dust
  • IOM samplers for collecting inhalable dust
  • Filters for collecting total dust, asbestos, or chemical hazards
  • Impingers for collecting reactive chemicals into liquids



Table 1. AirChek 52 Run Time in Hours with NiMH Battery

Following are typical run times achieved when using a fully charged nickel-metal hydride (NiMH) battery pack. Data is sorted by type of sample media. All run times are listed in hours. Results are obtained using a new pump and new fully charged battery. Pump performance may vary.

Mixed Cellulose Ester (MCE) filter, 0.8-µm pore size


Filter Diameter
Flow Rate (L/min)
37 mm
25 mm
2.0
40
37
2.5
38
29
3.0
34
25


Polyvinyl Chloride (PVC) filter, 5.0-µm pore size


Filter Diameter
Flow Rate (L/min)
37 mm
25 mm
2.0
56
47
2.5
48
41
3.0
42
38
Note: Increases in back pressure during sampling due to buildup of sample on the filter can decrease battery life.
