AirChek Connect Pump Starter Kit, LI-Ion battery

Please allow your location to be read or register an account with SKC Inc. to view pricing

Part Number: 220-4000-S

Questions?

AirChek Connect Pump Starter Kit, LI-Ion battery Overview

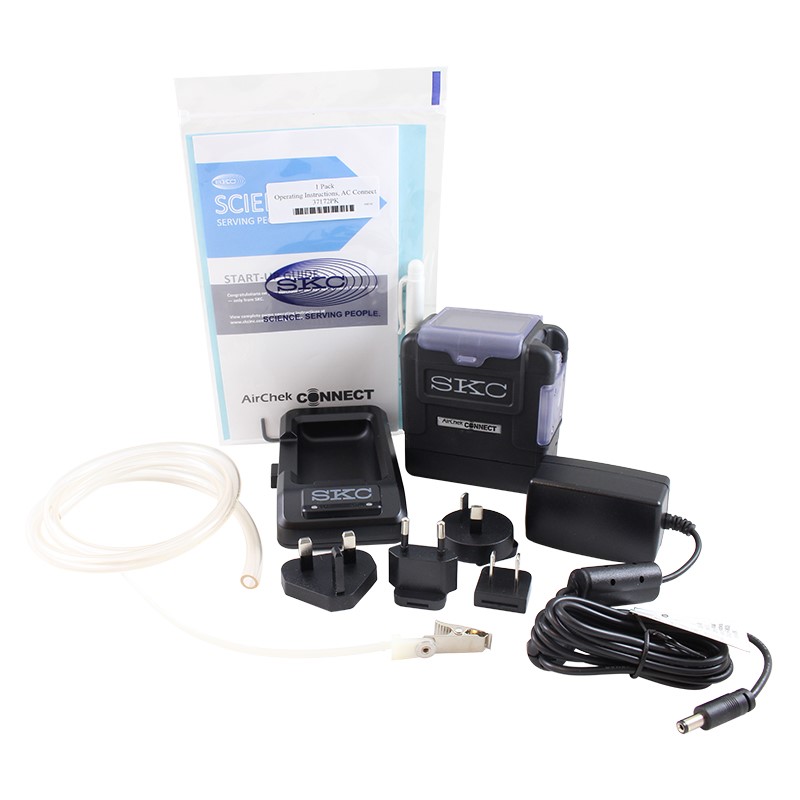

AirChek Connect Starter Kit includes pump with Li-Ion battery pack and screwdriver set, Standard Charging Cradle, power supply with cord, 3 feet (0.9 meter) of Tygon tubing, and collar clip with cable tie; requires 877-94 to use Bluetooth with PC

Product Details

Attributes

Specifications

The AirChek Connect touch screen pump is the ultimate in sample pump flexibility, ease of operation, and connectivity. In addition to providing accurate airflows from 5 to 5000 ml/min, AirChek Connect features Bluetooth connectivity to PC, tablet, and mobile phone. Use with DataTrac Pro Software and your PC for pump monitoring, programming, and data management or with the SmartWave app on your iOS/Android devices for remote pump operation and monitoring. AirChek Connect is backed by decades of SKC experience and incorporates the latest sampling technology.

Product Document

AirChek Connect Flysheet (PDF)

AirChek Connect Sample Pump Installation/Operation Caution Guide (PDF)

AirChek Connect Sample Pump Operating Instructions (PDF)

DataTrac Pro Download

DataTrac Pro for Bluetooth-connected Pumps User Manual (PDF)

AirChek Connect UL Certificate

AirChek Connect IECEx Certificate of Conformity

SmartWave App Flysheet (PDF)

Double Impinger Holder for AirChek TOUCH, Essential, and Connect Sample Pumps Operating Instructions (PDF)

SDS Lithium-Ion Rechargeable Battery (PDF)

AirChek Connect EU Declaration of Conformity (PDF)

Compliance Silica Sampling Tools Video

Flow Range	• Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Compensation Range (Back Pressure Capability)	• 5000 ml/min at 20 inches water back pressure • 4000 ml/min at 30 inches water back pressure • 3000 ml/min at 40 inches water back pressure • 2000 ml/min at 50 inches water back pressure • 1000 ml/min at 60 inches water back pressure
Power	• Removable rechargeable lithium-ion (Li-Ion) battery, 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run Time	• 40+ hours at 2000 ml/min* • 15+ hours at 5000 ml/ min* • Indefinite run from charging cradle
Accuracy	• Flow control: ± 5% of set-point after flow rate verification to desired flow • Atmospheric pressure: ± 0.3 in Hg • Temperature: ± 1.0 C
Display/Parameters	• High-contrast backlit LCD/Time, date, battery status, flow rate, sample volume, temperature, atmospheric pressure, back pressure, programmed run remaining time, and elapsed run time
User Interface	• Eight-area capacitive touch screen with auto-dim and locking options
Sound Level	• Average 51.7 dB at 3-ft (1-m) distance using a 37-mm, 0.8-µm MCE filter cassette
Tubing	• Requires ¼-inch ID tubing
Dimensions/Weight	• 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm),19.4 oz (550 gm)
Certifications/Markings	• Intrinsic safety (SKC Cat. No. 220-3000 operated with SKC Battery Pack P75718) Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III, T4; Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga; -20°C ≤ Ta ≤ 45°C Ex II 1G; Exia IIC T4 Ga; IECEx UL 19.0100, UL22UKEX2351, UKCA 0843, DEMKO 19ATEX 2288, CE 0539 • Designed to meet ISO 13137:2022 • RoHS compliant


Intrinsically Safe	•	•	•	•
Operation	Touch keypad	Touch screen	Color touch screen	Touch screen
Programmable			•	•
PC Compatible – Download History			•	•
Bluetooth® Connection with PC and Mobile				•
SmartWave Mobile App				•
Compensates for Changes in Temperature and Atmospheric Pressure	•	•	•	•
Flow Fault/Auto-restart	•	•	•	•
CalChek® Automatic Flow Rate Verification/Calibration Feature			•
