AirChek Essential+ Single High Flow Pump Kit

AirChek Essential+ Single High Flow Pump Kit

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 220-3100-K
Available for Rent
Would you like to rent the product?
Request Rental

AirChek Essential+ Single High Flow Pump Kit Overview

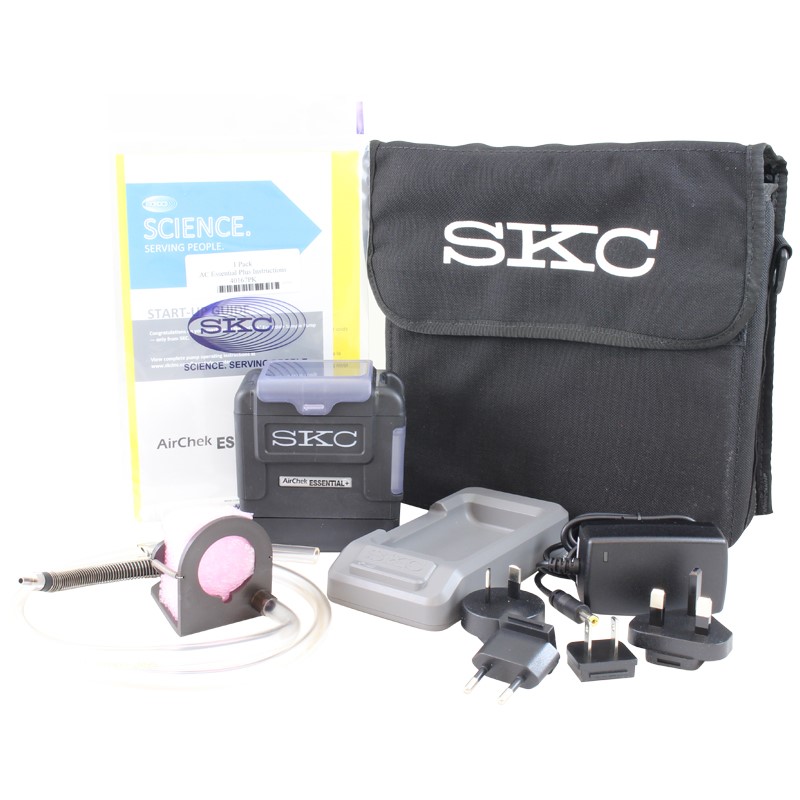

AirChek Essential+ Single High Flow Pump Kit includes pump with Li-Ion battery pack and screwdriver set, Lite Charging Cradle, power supply with cord, and filter cassette holder, in a soft-sided nylon carry casee
AirChek Essential+ pumps contain Li-Ion batteries and are subject to special shipping regulations.
AirChek Essential+ requires ¼-inch ID tubing.

The on/off-style 5 to 5000 ml/min sampling pump with graphic display and touch screen for the easiest operation and highest value. No flow rate adjustment tools or manual needed!



Performance Profile

Flow Range
• Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Compensation Range (Back Pressure Capability)
 • 5000 ml/min at 20 inches water back pressure
• 4000 ml/min at 30 inches water back pressure
• 3000 ml/min at 40 inches water back pressure
• 2000 ml/min at 50 inches water back pressure
• 1000 ml/min at 60 inches water back pressure
Flow Control System
 • Isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
Flow Fault/Auto-restart

 • After 3 to 10 seconds of restricted flow, pump Stops sampling, elapsed time Stops, Status LEDs, flash red, and pump displays fault icon. After 20 seconds in fault, auto-restart is attempted up to
5 times unless full airflow is restored prior to that. If full airflow is not corrected during 5 restart attempts within 5 minutes, the pump ends the run.
Power • Removable rechargeable lithium-ion (Li-lon), 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run Time

• 40+ hours at 2000 ml/min,* 15+ hours at 5000 ml/ min,* Indefinite run from charging cradle
Charging Method

• Cradle, available as a single unit using Single Cradle Power Supply Cat. No. 220-600; chainable up to 5 units using a Multi Cradle Power Supply Cat. No 220-700
Charging Time (varies with battery capacity and level of discharge)

• Approximately 3 hours
Accuracy
 • Flow control: ± 5% of set-point after flow rate verification to desired flow

• Atmospheric pressure: ± 0.3 in Hg

• Temperature: ± 1 C
Temperature Ranges

• Operating: 32 to 104 F (0 to 40 C)

• Charging: 32 to 113 F (Oto 45 C)

• Storage: -4 to 113 F (2010 45 C)
Humidity Ranges

• Operating: < 95% RH, non-condensing

• Storage: < 95% RH, non-condensing
Altitude

• Corrects flow for changes in temperature (32 to 104 F [0 to 40 C]) and ambient pressure up to 15,000 feet (4572 meters) above and down to 4500 feet (1372 meters) below sea level
Display/Parameters
 • High-contrast backlit LCD/ battery status and elapsed run time
User Interface
 • Eight-area capacitive touch screen with auto lock option
Status LEDs
 • Dual LED. blinking green = sampling pump, blinking red = flow fault
Sound Level
 • Average 51.7 dB at 3-ft (T-m) distance using a 37-mm, 0.8-um MCE filter cassette
Tubing
 • Requires ¼-inch ID tubing
Dimensions/Weight
 • 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm), 19.4 oz (550 gm)
Certifications/Markings

• Intrinsic safety (SKC Cat. No. 220-3100 operated
with SKC Battery Pack P75718) Class I, Groups
A, B, C, D; Class II, Groups E, F, G; Class III, T4;
Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga;
-20°C ≤ Ta ≤ 45°C; Ex II 1G; Exia IIC T4 Ga; IECEx
UL 19.0100, DEMKO 19ATEX 2288; UL22UKEX2351, CE 0539; UKCA 0843
• Designed to meet ISO 13137:2022
RoHS

• Compliant
Case Material

• Polycarbonate with rubberized anti-static overmolding
Features

• On-screen battery status display. ergonomic case design, secure clip, cradle for charging, ultra-quiet operation
Media

• Use to sample with sorbent tubes, fiters, size-selective particulate samplers, and impingers
Warranty

• 1-year limited warranty

*Tested using 37-mm 0.8-um MCE filter with new pump and battery. Pump performance may vary.

  • Pump Flow Rate : 5 to 5000 ml/min
  • PC Compatible : No
  • Programable : No
  • Intrinsic Safety : Yes
  • Battery Type (Power) : Li-Ion
  • Approx Run Time : 40
Intrinsically Safe • • • •
Operation Touch keypad Touch screen Color touch screen Touch screen
Programmable      • •
PC Compatible – Download History      • •
Bluetooth® Connection with PC and Mobile        •
SmartWave Mobile App        •
Compensates for Changes in Temperature and Atmospheric Pressure  • • • •
Flow Fault/Auto-restart  • • • •
CalChek® Automatic Flow Rate Verification/Calibration Feature     •
