AirChek Essential Single High Flow Pump Kit

AirChek Essential Single High Flow Pump Kit

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 220-3000-K
Available for Rent
Would you like to rent the product?
Request Rental

AirChek Essential Single High Flow Pump Kit Overview

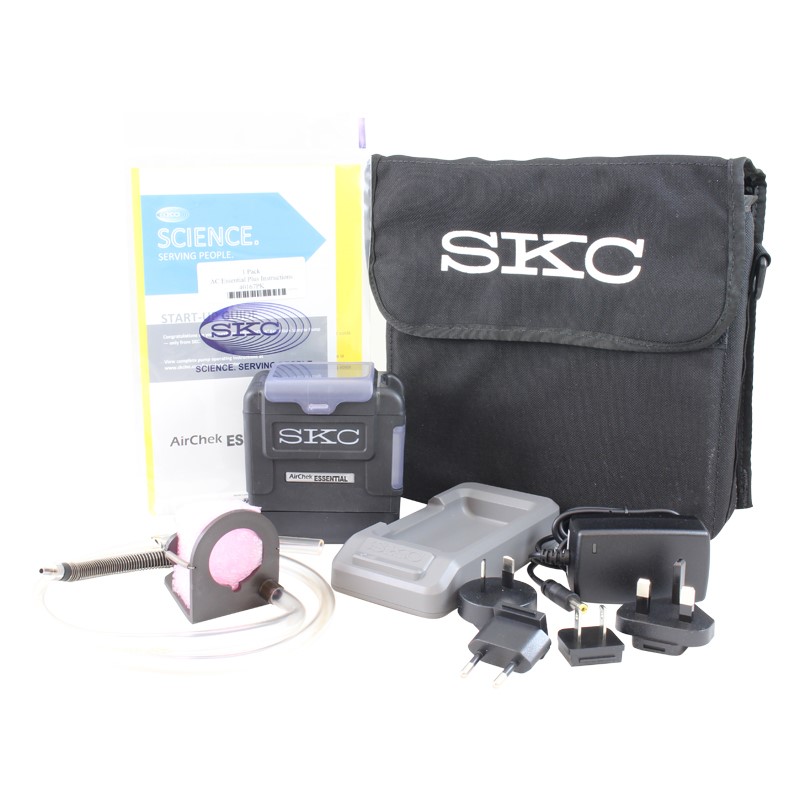

AirChek Essential Single High Flow Pump Kit, includes one each: pump (220-3000),  Lite Cradle (220-850), Single Cradle Power Supply (220-600), and Filter Cassette Holder (225-1), in a soft-sided nylon carry case (224-903)
AirChek Essential requires ¼-inch ID tubing.

Low Price, Simple Operation Sample Pump with touch keypad; no operating manual needed! 5 to 5000 ml/min



Performance Profile

Flow Range
• Constant flow from 1000 to 5000 ml/min (5 to 500 ml/min requires low flow holder)
Compensation Range (Back Pressure Capability)
 • 5000 ml/min at 20 inches water back pressure
• 4000 ml/min at 30 inches water back pressure
• 3000 ml/min at 40 inches water back pressure
• 2000 ml/min at 50 inches water back pressure
• 1000 ml/min at 60 inches water back pressure
Power
 • Removable rechargeable lithium-ion (Li-Ion) battery, 7.4 V, 2.6 Ah, 19.2 Wh or AC using cradle
Run Time
 • 40+ hours at 2000 ml/min,* 15+ hours at 5000 ml/ min,* Indefinite run from charging cradle
Accuracy
 • Flow control: ± 5% of set-point after flow rate verification to desired flow

• Atmospheric pressure: ± 0.3 in Hg

• Temperature: ± 1 C
Display/Parameters
 • B&W display, elapsed sampling time
User Interface
 • Capacitive touch keypad with locking option
Sound Level
 • Average 51.7 dB at 3-ft (1-m) distance using a 37-mm, 0.8-µm MCE filter cassette
Tubing
 • Requires ¼-inch ID tubing
Dimensions/Weight
 • 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm), 19.4 oz (550 gm)
Certifications/Markings

• Intrinsic safety (SKC Cat. No. 220-3000 operated
with SKC Battery Pack P75718) Class I, Groups
A, B, C, D; Class II, Groups E, F, G; Class III, T4;
Class I, Zone 0, AExia IIC T4 Ga; Exia IIC T4 Ga;
-20°C ≤ Ta ≤ 45°C Ex II 1G; Exia IIC T4 Ga; IECEx
UL 19.0100, UL22UKEX2351, UKCA 0843, DEMKO
19ATEX 2288, CE 0539
• Designed to meet ISO 13137:2013
• RoHS compliant
  • Pump Flow Rate : 5 to 5000 ml/min
  • PC Compatible : Yes
  • Programable : Yes
  • Intrinsic Safety : Yes
  • Battery Type (Power) : Li-Ion
  • Approx Run Time : 40
Intrinsically Safe • • • •
Operation Touch keypad Touch screen Color touch screen Touch screen
Programmable      • •
PC Compatible – Download History      • •
Bluetooth® Connection with PC and Mobile        •
SmartWave Mobile App        •
Compensates for Changes in Temperature and Atmospheric Pressure  • • • •
Flow Fault/Auto-restart  • • • •
CalChek® Automatic Flow Rate Verification/Calibration Feature     •
