AirChek XR5000 Single Sample Pump Kit, Standard Li-Ion

View Larger Image

buffer

AirChek XR5000 Single Sample Pump Kit, Standard Li-Ion

Please allow your location to be read or register an account with SKC Inc. to view pricing

Part Number: 210-5002K

Questions?

AirChek XR5000 Single Sample Pump Kit, Standard Li-Ion Overview

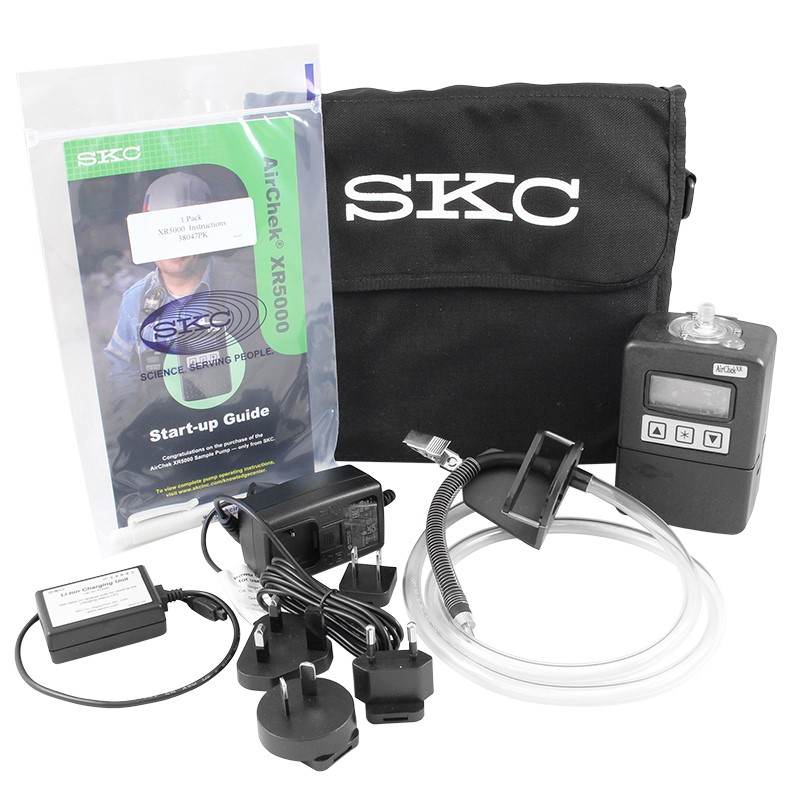

AirChek XR5000 (Standard Power) Single High Flow Pump Kit includes pump with battery and screwdriver set, charger, and cassette holder, in a soft-sided nylon carry case
Flow range: Constant flow 5 to 5000 ml/min
Low flows from 5 to 500 ml/min require a low flow kit.
UL approved for intrinsic safety

Product Details

Attributes

Specifications

Discover the perfect combination of features and power in this compact, lightweight pump that gets the job done. The AirChek® XR5000 personal air sampling pump with Li-Ion battery provides powerful flows for particulate sampling, low flows for gas and vapor sampling, and the long run-times for low-concentration sampling.
The AirChek XR5000 air sampling pump is UL Listed for intrinsic safety.

Performance Profile

Flow Range

1000 to 5000 ml/min (5 to 500 ml/min requires optional low flow kit)

Compensation Range

5000 ml/min at 10 inches water back pressure
4000 ml/min at 20 inches water back pressure
2000 ml/min at 50 inches water back pressure

Typical Back Pressure of Sampling Media (inches water)

Filter/Pore Size (µm)		Flow Rate (L/min)
		1.	1.5	2	2.5	3	3.5	4	5
	25-mm MCE/0.8	6	9	12	15	18	21	25	31
	25-mm MCE/0.45	14	22	28	35	40	44	50	63
	37-mm MCE/0.8	2	3	4	5	6	7	9	11
	37-mm PVC/5.0	1	1	2	2	2.5	3	3	4
	37-mm polycarbonate/0.45	4	6	8	10	12	15	17	21
	25-mm MCE/0.45 microvacuum	21	31	40	48	59	69	79	100
	37-mm PTFE/1.0	1.5	2.5	4	5.5	7	8	9.5	12

Compare the information in this table to pump compensation range to determine appropriate applications.

Flow Compensation System

Isothermal closed loop flow sensor

Tubing

Requires 1/4-inch ID tubing

Accuracies

Timing: 1 min/mo at 25 C
Flow Rate: ± 5% of set-point after calibration to desired flow

Battery Charge Level Indicator

Icon displays on LCD at full, mid, low charge, imminent low battery fault, and low battery fault.

Temperature Range

Operating: 32 to 104 F (0 to 40 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 95 F (-20 to 35 C)

Typical Run Times

XR5000 Model

2 L/min

5 L/min

High-power Li-Ion

40 hrs

22 hrs

Standard Li-Ion

20 hrs

11 hrs

Timer Display Range

1 to 9999 minutes (6.8 days). If run time exceeds 6.8 days, timer display rolls over.

Flow Fault

If pump is unable to compensate for > 15 seconds due to excessive back pressure, the pump stops and holds run time display. Auto-restart is attempted every 15 seconds up to 5 times.

Low Battery Fault

15 sec to sleep

Auto-off

5 min of inactivity

Battery Pack
(model dependent)

High-power Li-Ion (4 cell), rechargeable, 7.4 V, 5.2 Ah, 38.5 Wh capacity
or
Standard Li-Ion (2 cell), rechargeable, 7.4 V, 2.6 Ah, 19.2 Wh capacity

Battery Recharge Time
(with SKC-approved charger)

Standard Li-Ion (2 cell): approximately 4 hrs
High-power Li-Ion (4 cell): approximately 8 hrs

Size

High-power Li-Ion model: 5.5 x 3 x 2.3 in (14 x 7.6 x 5.8 cm)
Standard Li-Ion model: 4.3 x 3 x 2.3 in (10.9 x 7.6 x 5.8 cm)

Weight

High-power Li-Ion model: 21 oz (0.6 kg)
Standard Li-Ion model: 16 oz (0.45 kg)

Case

Anti-static plastic

RFI/EMI Shielding

CE marked for RFI/EMI protection

Approvals

for use in hazardous locations. Models that are UL Listed for intrinsic safety contain the logo on the label. These models must be used with battery pack Cat. No. P85004 or P85002 to maintain the UL intrinsic safety listing.
