Deployable Particulate Sampler (DPS) System, U.S. Army Version
Deployable Particulate Sampler (DPS) System, U.S. Army Version Overview

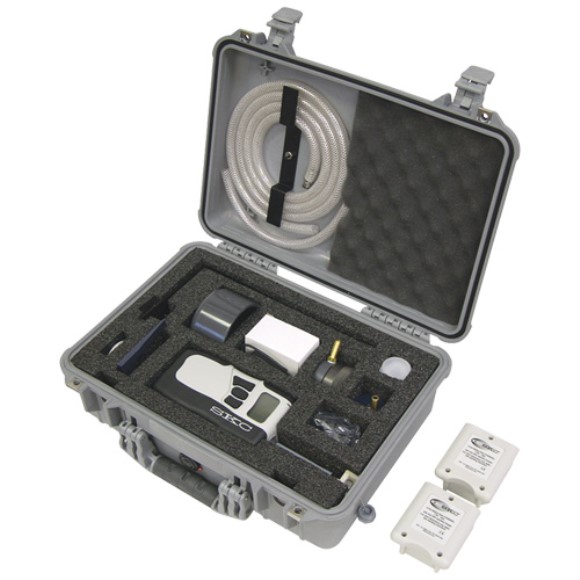

DPS System, for portable 10 L/min ambient PM10 sampling (U.S. Army version), includes a Leland Legacy programmable sample pump with connection case, (2) external Li-Ion battery assemblies with adapters (packaged separately), 100-240 V single-station charger, IMPACT sampling head, (2) filter cassettes, calibration adapter, rain cap, (25) disposable impaction substrates (limited shelf-life), filter cassette opener, tubing with quick-connect, and mounting bracket, in a heavy-duty, lockable carry case
The U.S. Army version includes all items in the Cat. No. 100-3901 Kit plus an electronic laminar flowmeter.
The Deployable Particulate Sampler System fits in one compact, portable carry case and is ideal for ambient and indoor air sampling for PM10 or PM2.5. The system includes a fully programmable Li-Ion-powered sample pump for 24-hour sampling, specially designed sampling head, and accessories for fast deployment and effective sampling.
Performance Profile
See Reference below for DPS performance testing.
| Particle Collection Size | PM10 or PM2.5 (model dependent) |
| Flow Rate | 10 L/min |
| Run Time | > 24 hrs (one battery charge) |
| Power | Rechargeable Li-Ion battery, 7.4 V, 12-Ah capacity, 88.8 Wh |
| Case Dimensions | 18.5 x 14.1 x 6.9 in (47 x 36 x 18 cm) |
| System Weight | 13 lbs (5.9 kg) |
| Impaction Substrate | 37-mm, pre-oiled porous plastic disc |
| Collection Filter | 47-mm quartz or PTFE |
- Pump Flow Rate : 5 to 15 L/min
- PC Compatible : Yes
- Programable : Yes
- Intrinsic Safety : No
- Battery Type (Power) : Li-Ion
- Approx Run Time : 24 hours
- Constant Flow : Yes
