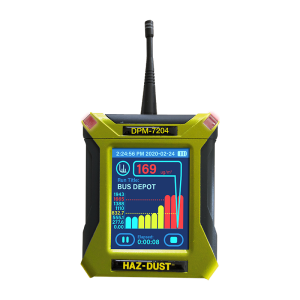

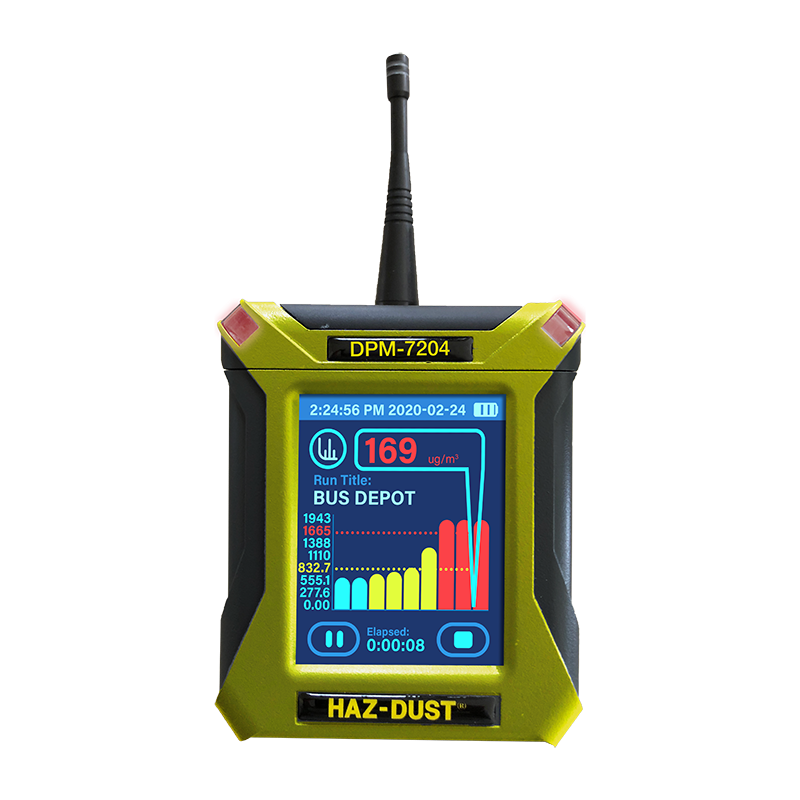

DPM-7204 Real-time Monitor Kit
DPM-7204 Real-time Monitor Kit Overview
DPM-7204 Monitor Kit includes monitor with battery, 37-mm opaque filter cassette, open-faced sampling adapter, GS-3 Cyclone, flow adapter, micro USB download cable, universal battery charger (110-240 V), zeroing accessory, USB with DustComm Pro Software and manual, and certificate of calibration, in a hard carry case
Requires calibration with equipment sold separately
The Environmental Devices Corp. DPM-7204 real-time monitor is a valuable tool for the OEHS professional. Immediately identify problem areas and tasks at highest risk for exposure to diesel particulate matter (DPM), implement controls, and measure the effectiveness of controls. You no longer need co-located real-time monitors and FRM filter cassettes — DPM-7204 is two instruments in one with its built-in constant flow pump and sensor/filter configuration. The sensor mounts in the OSHA-defined breathing zone and is sandwiched between a 25 or 37-mm filter cassette and an interchangeable validated sampling inlet for accurate concurrent real-time measurement and gravimetric sampling of respirable, thoracic, or inhalable particulate size fractions. When used as part of a routine air monitoring program, the DPM-7204 can significantly reduce the number of gravimetric tests and laboratory analyses.
• NIOSH 5040 sampling
• Tier 4 engine studies
• Mining ventilation efficiency
• Mining applications
• Transportation studies
• Tunnel monitoring
DPM-7204 Specifications
| Sensors |
Sensor Type: 90° light scattering 880nm |
| Display | 3.5”, 24-bit True color, Resistive Color Touch, with Auto Dimming |
| Real-Time Data Display | Time: Hours, min., sec., 12hour & 24 hour Date: MM/DD/YYYY, YY/MM/DD, DD/MM/YY Data Display: Concentrations (mg/m3, ug/m3), Sampling Size Fraction of PM (OSHA TWA, AVE., MAX., MIN.), Start time, stop time, elapsed run time, Log rate, Flow, Real-Time Rolling Graphs (10 sec and 1 second), Personalized Named Data Sets, Unique Aerosol Profiles, Language Options, Battery Life Pump Faults, Flow Rate, In Feld Calibration Test, History of Data Sets |
| Sampling Flow Rate | Sampling Flow Rate:1-5 Lpm The pump is capable to maintain flow within ±5% as follows: 1.0 Lpm up to 70 Inch H2O; 2.5 Lpm up to 55 Inch H2O, and 5.0 Lpm up to 20 inch H2O. |
| Filter Cassette | 37mm preloaded and weighted filter cassette 37mm 1um jeweled cassette for diesel particulates 25mm Preloaded cassette |
Attachable Inlets |
|
|
Respirable Inlet |
GS-3 Cyclone: 2.75 LPM for 4µm cut point (OSHA silica rule) Meets ISO 7708/CEN criteria GS-1 Cyclone: 2.0LPM for 4µm cut point (OSHA silica rule) 3 LPM for 3.5 cut point (MSHA silica standard) 1.7 or 2.0 LPM with DPM cassette (MSHA DPM sampling) Meets ISO 7708/CEN criteria |
| Inhalable Inlet | IOM sampler: 2.0 LPM Meets ISO 7708/CEN criteria |
| Thoracic Inlet | Thoracic Sampling Inlet: 2.0LPM |
| Impactors | PM10, PM5.0, PM4.0, PM2.5 |
| Alarm Output | Audible & Visual Audible: 90db at 3ft Ceiling and S.T.E.L Alarms, Pump Fail, and Low Battery |
| Recording Time | 1 second to 15 days Sampling Rate: 1 sec., 4 sec., 10 sec., and 60 sec |
| Data Storage | 43,200 data points |
| Memory & Time Storage |
>5 years |
| Digital Output | Micro USB 6.00’ (1.83m), A Male to Micro B Male, 28SWG, Shielded |
| Power Supply | Wall Mount, Multi Bald Included, Voltage Input 100~240 VAC, Voltage Output 12V, Current Output 2A, CE, UL,CB, cUL, PSE, RCM |
| Battery | Lithium Ion pack, 7.4 Volt 3350 mAh, 24.79 watts |
| Operating Time | 22+ hours Running at 2.0LPM with IOM and no filter. |
| Operating & Storing Conditions | Operating Temperature: 0 to 50°C Storage Temperature: -20 to 70°C Operational Humidity: 0-95% Non-Condensing |
| DUSTCOMM Pro Software | Windows™ driven Windows 10 or greater |
| Maintenance | Zero Calibration: Before each use In Field Calibration Verification: Before each use Flow Calibration: Before each use. Will automatically change when switching PM selective size. Sensor Cleaning: By user when needed/ or during annual calibration Factory Calibration: Annually or when instrument fails infield calibration verification. |
| Weight and Dimensions | Dimensions (Case): 3.5” x 2.25” x 4.75” Sensor Dimensions: 1.75” x 1.5” Weight Instrument: 1.14lbs Weight Sensor: 0.6lbs Display dimensions: 3.5” |
| PM Sensor | Sensor Type: 90° light scattering 88nm Calibrated against Gravimteric reference NIST traceable-SAE fine test dust ISO12103-1 A2 Fine Test Dust. |
| Tripod Mounting | Optional Accessory |
