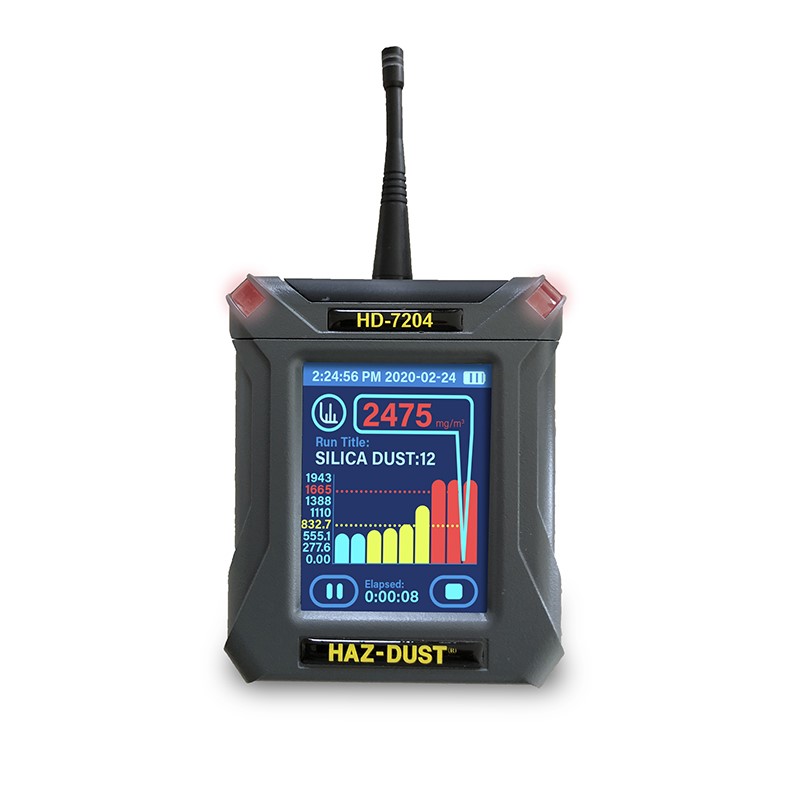

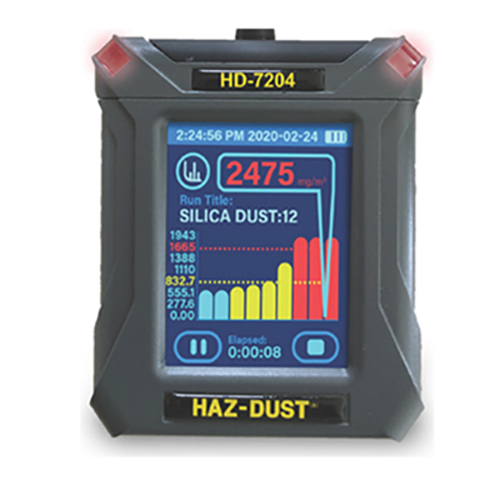

HAZ-DUST 7204 Monitor Kit
HAZ-DUST 7204 Monitor Kit Overview
HAZ-DUST 7204 Monitor Kit includes monitor with battery, 37-mm 2-piece opaque filter cassette, open-faced sampling adapter, IOM inhalable sampling head (installed), flow adapter, zero accessory, universal battery charger (100-240 V) with adapters, and DustComm, Pro Software, manual on USB, and a micro-USB download cable, in a hard carry case.
The HAZ-DUST 7204 provides immediate identification of problem areas and tasks. Quickly implement controls to reduce exposures to hazardous particulate and then measure the effectiveness of controls moving forward. There is no further need for two co-located devices – one HAZ-DUST 7204 with built-in compensating pump and preweighed filter cassette simultaneously provides real-time particulate readout and gravimetric sampling.
Common Uses
- Silica
- Diesel
- Coal
- Lead
- Construction dust
- Welding fumes
- Wild fires
- Concrete/cement
- Nuisance dusts
- Grinding dusts
- Pharmaceuticals
- Paint spray
- Grain
- Soil remediations
- Wood/paper
- Cadmium
- Chromate
- Tobacco smoke
- Construction dust
- Dry chemicals
- Oil mists
HD-7204 Specifications
Sensors | Sensor Type: 90° light scattering 880nm Calibration: Calibrated against Gravimetric reference NIST traceable- SAE fine test dust ISO12103-1 A2 Fine Test Dust. Accuracy: +/- 10% to filter gravimetric SAE fine test dust Precision: +/- 0.002 mg/m3 or 2 µg/m3 Sensing Range: 0.001-500 mg/m 3 or 1-500,000 µg/m3 PM Size Range: 0.1 to 100um Minimum Resolution: 1 ug/m3 (0.001 mg/m3 ) Zero Stability: +/- 0.001 mg/m3 (give µg/m3 equivalent also) over 24 hours using 10 second log rate. Humidity: 95% non-condensing |
Display | 3.5”, 24-bit True color, Resistive Color Touch, with Auto Dimming |
Real-Time Data Display | Time: Hours, min., sec., 12hour & 24 hour Date: MM/DD/YYYY, YY/MM/DD, DD/MM/YY Data Display: Concentrations (mg/m3 , µg/m3), Sampling Size Fraction of PM (OSHA TWA, AVG., MAX., MIN.), Start time, stop time, elapsed run time, Log rate, Flow, Real-Time Rolling Graphs (10 sec and 1 second), Personalized Named Data Sets, Unique Aerosol Profiles, Language Options, Battery Life Pump Faults, Flow Rate, Infield Calibration Test, History of Data Sets |
Sampling Flow Rate | Sampling Flow Rate:1-5 Lpm The pump is capable to maintain flow within ±5% as follows: 1.0 Lpm up to 70 Inch H2O; 2.5 Lpm up to 55 Inch H2O, and 5.0 Lpm up to 20 inch H2O. |
Filter Cassette | 37mm preloaded and weighted filter cassette 37mm 1um jeweled cassette for diesel particulates 25mm Preloaded cassette |
Attachable Inlets |
|
Respirable Inlet |
GS-3 Cyclone: 2.75 LPM for 4µm cut point (OSHA silica rule) Meets ISO 7708/CEN criteria GS-1 Cyclone: 2.0LPM for 4µm cut point (OSHA silica rule) 3 LPM for 3.5 cut point (MSHA silica standard) 1.7 or 2.0 LPM with DPM cassette (MSHA DPM sampling) Meets ISO 7708/CEN criteria |
Inhalable Inlet | IOM sampler: 2.0 LPM Meets ISO 7708/CEN criteria |
Thoracic Inlet | Thoracic Sampling Inlet: 2.0LPM |
Impactors | PM10, PM5.0, PM4.0, PM2.5 |
Alarm Output | Audible & Visual Audible: 90db at 3ft Ceiling and S.T.E.L Alarms, Pump Fail, and Low Battery |
Recording Time | 1 second to 15 days Sampling Rate: 1 sec., 4 sec., 10 sec., and 60 sec |
Data Storage | 43,200 data points |
Memory & Time Storage |
>5 years |
Digital Output | Micro USB 6.00’ (1.83m), A Male to Micro B Male, 28SWG, Shielded |
Power Supply | Wall Mount, Multi Bald Included, Voltage Input 100~240 VAC, Voltage Output 12V, Current Output 2A, CE, UL,CB, cUL, PSE, RCM |
Battery | Lithium Ion pack, 7.4 Volt 3350 mAh, 24.79 watts |
Operating Time | 22+ hours Running at 2.0LPM with IOM and no filter. |
Operating & Storing Conditions | Operating Temperature: 0 to 50°C Storage Temperature: -20 to 70°C Operational Humidity: 0-95% Non-Condensing |
DUSTCOMM Pro Software | Windows™ driven Windows 10 or greater |
Maintenance | Zero Calibration: Before each use In Field Calibration Verification: Before each use Flow Calibration: Before each use. Will automatically change when switching PM selective size. Sensor Cleaning: By user when needed/ or during annual calibration Factory Calibration: Annually or when instrument fails infield calibration verification. |
Weight and Dimensions | Dimensions (Case): 3.5” x 2.25” x 4.75” Sensor Dimensions: 1.75” x 1.5” Weight Instrument: 1.14lbs Weight Sensor: 0.6lbs Display dimensions: 3.5” |
PM Sensor | Sensor Type: 90° light scattering 88nm Calibrated against Gravimteric reference NIST traceable-SAE fine test dust ISO12103-1 A2 Fine Test Dust. |
Tripod Mounting | Optional Accessory |
- Product Type : Particulate Monitor
- Silica Dust Monitoring : Yes
- Personal Dust Monitoring : Yes
- Ambient PM Monitoring : No
