HD-1620 MULTI-PARAMETER RESPIRATORY MONITOR KIT

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 770-1620

HD-1620 MULTI-PARAMETER RESPIRATORY MONITOR KIT Overview

HD-1620 Multi-parameter Respiratory Monitor Kit, includes monitor, PM2.5 impactor, universal battery charger with plugs, micro USB cable, flow adapter, PM air intake, manual, Dust Comm Pro Software, and certificate of calibration.

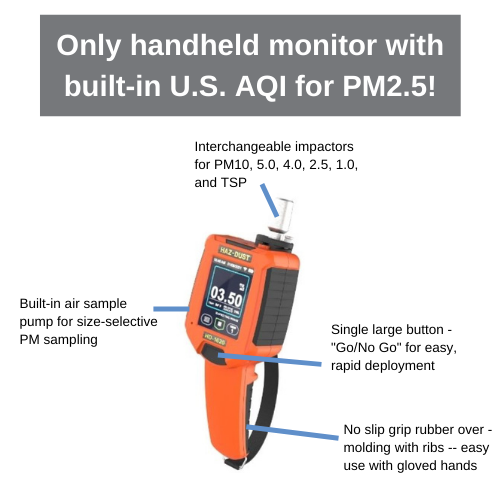

Hand held monitor for PM,  U.S. AQI for PM2.5, Temp, RH, Barometric Pressure, and GPS. No calibration accessory is required for this monitor.

The new Environmental Devices Corporation HD-1620 is the only handheld monitor with built-in U.S. AQI for PM2.5! This multi-parameter real-time respiratory air monitor is designed specifically for firefighters, first responders, and occupational hygienists. Identify health concerns in real-time and get the information you need to set up engineering controls for workers such as N95 masking, SCBA respiratory protection, ventilation controls, evacuation, and/or reentry plans to meet your state’s wildfire smoke rule. The HD-1620 is versatile...use it held in your hand, strapped to your hand, clipped to your belt or turn-out gear, or mounted on a tripod. Even with gloves, the large one-button “Go/No Go” provides for easy and rapid deployment. The HD-1620 also complements the EPA PM2.5 and PM10 reference method for outdoor applications to help maintain compliance.

Applications

  • Smoke and wildfires
  • Silica
  • Lead
  • Pharmaceutical dust
  • Paint spray
  • Toxic soil remediation
  • Chromate
  • Dry chemicals
  • Wood dust
  • Nuisance dust
  • Heavy metals
  • Construction dusts
  • Concrete/cement
  • Urban AQI monitoring
  • Office IAQ
  • Ventilation efficiency
  • Product Type : Particulate Monitor
  • Silica Dust Monitoring : No
  • Personal Dust Monitoring : No
  • Ambient PM Monitoring : Yes

More Information:

HD-1620

Specifications:



Sensing Range: 1-500,000ug/m3

Particle Size Range:  0.1-100 um

Precision: 0.002 mg/m3 or 2 ug/m3

Accuracy: +/- 10% to filter gravimetric SAE  fine test dust

Zero Stability:  +/- 0.001 mg/m3  or 1 ug/m3

Humidity : 95% non condensing

Temperature: 0-50 C  or 32- 122F

Real-Time Display Data: Time: Hours, Min, sec, 12 & 24 hr Date: mm/DD/YYYY, YY/MM/DD, DD/MM/YY Data Display: Concentration mg/m3, ug/m3, PM/cm3, sampling size fraction of PM. OSHA TWA, AVE, MIN, MAC, Start time, stop time, elapsed run, log rate, flow, Real-time rolling graphs, personalized named data sets, unique aerosol profiles, language options, battery life, pump faults, flow rate, infield verification  test, sampling history.

Flow Rate:  1.5LPM User adjustable

Recording Time: 1 s. to 15 days

Sampling Rate:  1 sec., 4 sec., 10 sec., and 60 sec

Operating temp: 0 to 50°C

Battery: Lithium Ion Pack, 7.4 Volt 3350 mAh, 24.79 watts.

Operating Time:  10 hours

Data Storage:  43,200 data points

Memory Storage:  > 5 years

Weight Instrument:   1.4 lbs

Dimensions Instrument: 10″ x 3.5″ x 1.5″

Display Dimensions:  3.5″

Alarm output: 90 db at 3 ft
