IFV Pro Sampler
IFV Pro Sampler Overview

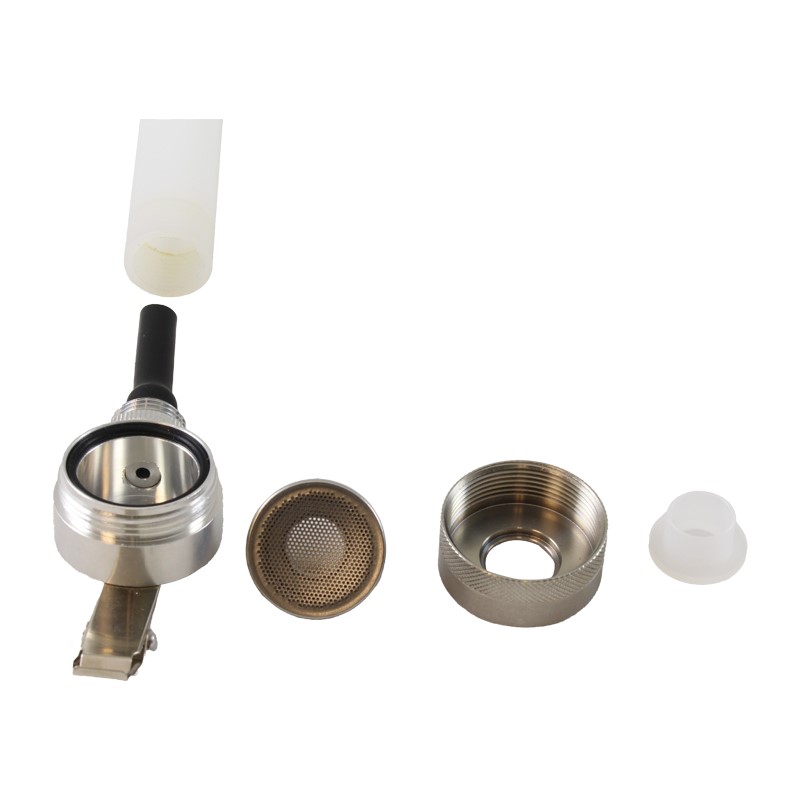

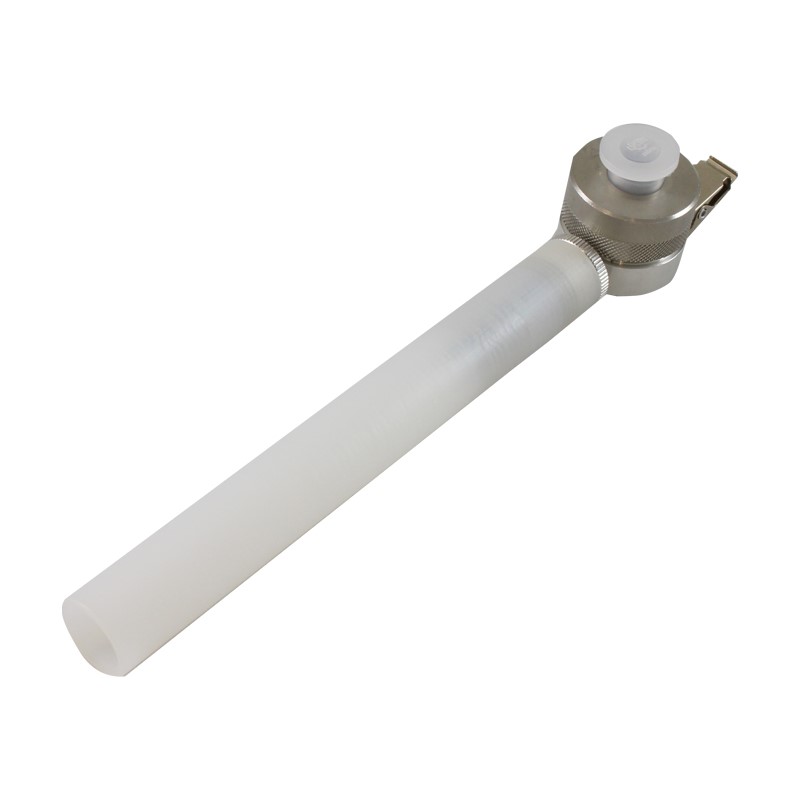

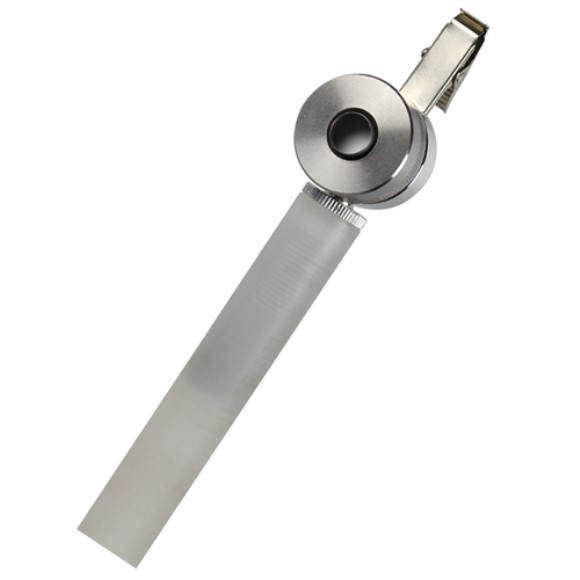

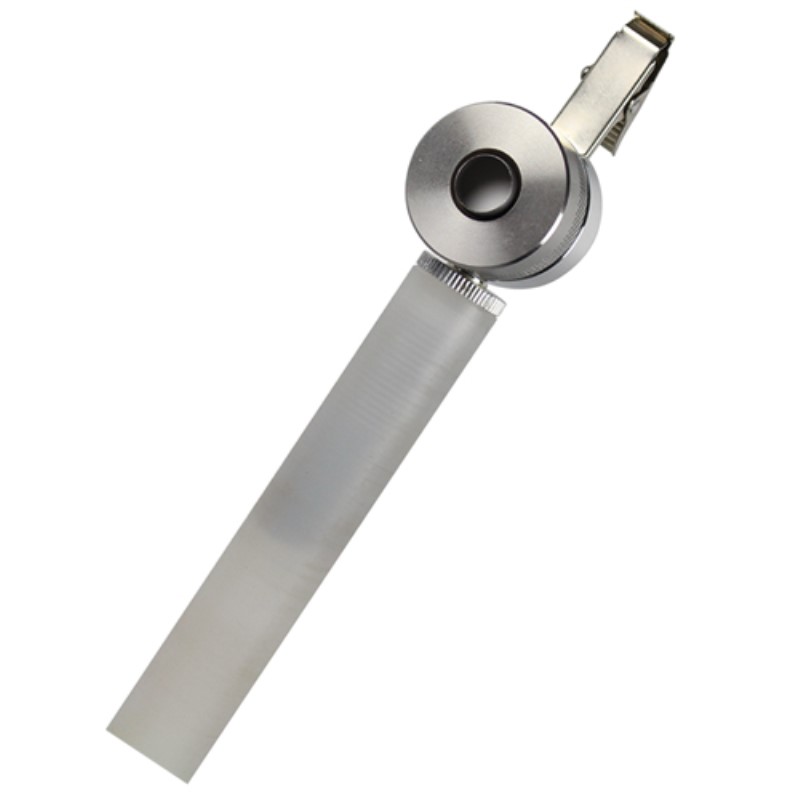

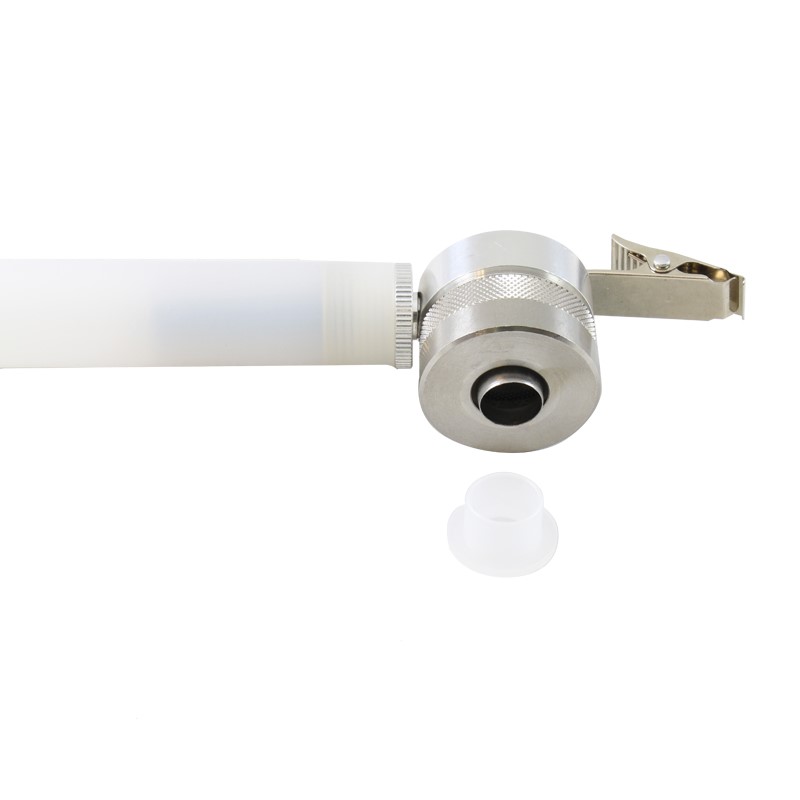

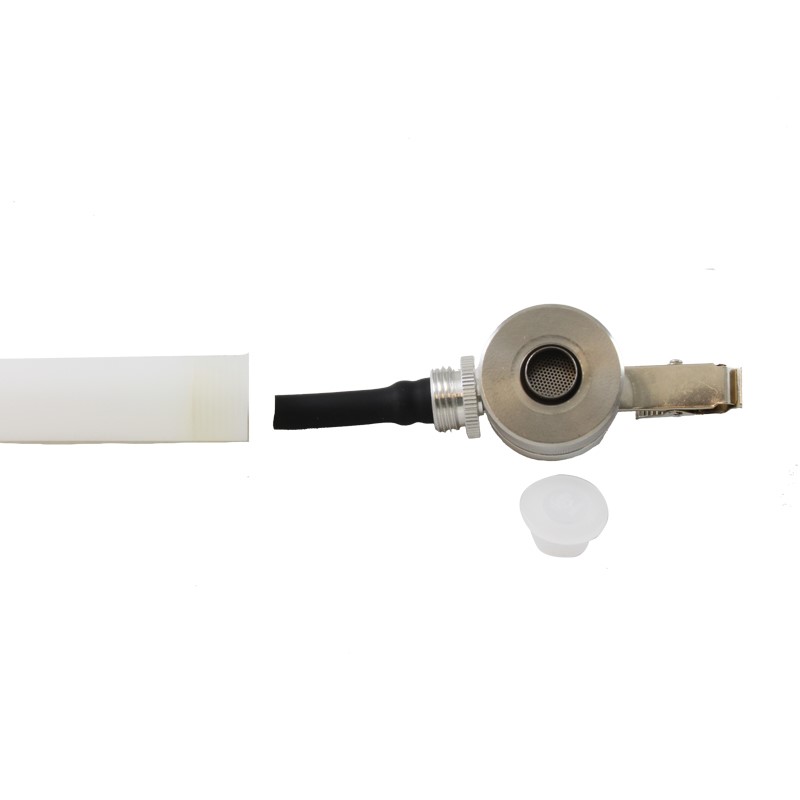

IFV Pro Sampler includes sampling head (aerosol sampler body, cassette, and front plate), protective tube cover, cassette cap, 10 extra tube holders (rubber sleeves), and cassette transport container, requires 25-mm filter and sorbent tube
The IFV Pro Sampler collects mixed-phase (aerosol and vapor) contaminants such as pesticides, polyaromatic hydrocarbons (PAHs), inorganic acids, and explosives. The IFV Pro simultaneously collects the aerosol phase on a 25-mm filter and the vapor phase in an 8 x 110-mm sorbent tube at a flow rate of 1 L/min. Sampler includes sampling head, protective tube cover, cassette cap, and cassette transport container; requires 25-mm filter and 8 x 110-mm sorbent tube.
Performance Profile
| Flow Rate | 1 L/min |
| 50% Cut-point | 100 µm at 1 L/min inhalable fraction |
|
Material
|
Sampling Head: Stainless steel front plate and filter cassette with 10.6-mm dia. inlet*; aluminum clip, housing, and outlet Tube Holder: Black rubber Protective Tube Cover: Plastic |
| Maximum Operating Temperature | 392 F (200 C) suitable for autoclaving and solvent washing |
| Filters | 25-mm glass fiber, quartz, or coated filter (see guide below) |
| Sorbent Tubes | 8 x 110-mm size. Dependent upon compound of interest (see guide below) |
| Tubing | ¼-inch ID |
| Weight | 2.4 oz (68 gm) |
| Dimensions | 8.5 x 1.2 in (21.6 x 3.17 cm) |
* Designed to meet the inhalable convention based on the scaling down technique described in the Final Report on research carried out under NIOSH-CDC Grant No. RO1-OH 03687-03, “Development of New Personal Aerosol Samplers,” Vincent, J.H., et al., 2003.
ACGIH IFV Designation
ACGIH has assigned a TLV with Inhalable Fraction and Vapor (IFV) designation to over 50 compounds that exert sufficient vapor pressure such that the contaminant may be present in both particle and vapor phases, with each phase contributing a significant portion of the dose. IFV Pro allows for efficient sampling of compounds with this designation (see guide below) or compounds found in mixed phases due to work activities or processes.
IFV Pro Filter and Sorbent Selection Guide
| Compound | Recommended Filter | Sorbent Tube |
| Acrylamide | 225-702 | 226-10-04 |
| Alachlor | 225-702 | 226-30-06 |
| Aldrin | 225-702 | 226-30-06 |
| Azinphos-methyl | 225-702 | 226-30-06 |
| Butylated hydroxytoluene | 225-702 | 226-211 |
| Carbaryl | 225-702 | 226-30-06 |
| Carbofuran | 225-702 | 226-30-06 |
| Chlorpyrifos | 225-702 | 226-30-06 |
| Clopidol | 225-702 | 226-30-06 |
| Coumaphos | 225-702 | 226-30-06 |
| Cresol, all isomers | 225-702 | 226-211 |
| Demeton | 225-702 | 226-30-06 |
| Demeton S-methyl | 225-702 | 226-30-06 |
| Diazinon | 225-702 | 226-30-06 |
| Dibutyl phosphate | 225-702 | 226-30-06 |
| Dichlorvos | 225-702 | 226-30-06 |
| Dicrotophos | 225-702 | 226-30-06 |
| Dieldrin | 225-702 | 226-30-06 |
| Diesel fuel as total hydrocarbons | 225-702 | 226-09 |
| Diethanolamine | 225-702 | 226-214 |
| Dioxathion | 225-702 | 226-30-06 |
| Disulfoton | 225-702 | 226-30-06 |
| Endosulfan | 225-702 | 226-30-06 |
| 2-Ethylhexanoic acid | 225-702 | 226-10-04 |
| Fenamiphos | 225-702 | 226-30-06 |
| Fensulfothion | 225-702 | 226-30-06 |
| Fenthion | 225-702 | 226-30-06 |
| Fonofos | 225-702 | 226-30-06 |
| Glyoxal | 225-9036 | 226-119-7 |
| Malathion | 225-702 | 226-30-06 |
| Maleic anhydride | 225-9028 | 226-213 |
| Methomyl | 225-702 | 226-30-06 |
| Methyl demeton | 225-702 | 226-30-06 |
| Methyl parathion | 225-702 | 226-30-06 |
| Mevinphos | 225-702 | 226-30-06 |
| Monochloroacetic acid | 225-702 | 226-10-04 |
| Monocrotophos | 225-702 | 226-30-06 |
| Naled | 225-702 | 226-30-06 |
| o-Phthalodinitrile | 225-702 | 226-83 |
| Parathion | 225-702 | 226-30-06 |
| Pentachlorophenol | 225-702 | 226-211 |
| Phorate | 225-702 | 226-30-06 |
| Propoxur | 225-702 | 226-30-06 |
| Ronnel | 225-702 | 226-30-06 |
| Sulfotepp | 225-702 | 226-30-06 |
| Sulprofos | 225-702 | 226-30-06 |
| Temephos | 225-702 | 226-30-06 |
| Terbufos | 225-702 | 226-30-06 |
| 1,1,2,2-Tetrabromoethane | 225-702 | 226-10-04 |
| Tetraethylpyrophosphate (TEPP) | 225-702 | 226-106a |
| Thiram | 225-702 | 226-30-06 |
| Toluene-2,4-diisocyanate | 225-9035 | Contact SKC |
| Toluene-2,6-diisocyanate | 225-9035 | Contact SKC |
| Xylidene isomers | 225-702 | 226-10-04 |
- Sampler Class : Inhalable
- Cut-point : 100 μm
- Flow rate : 1 L/min
- Disposable : No
- Sampler Type : Mixed Phase
- Calibration Adaptor? : Yes
