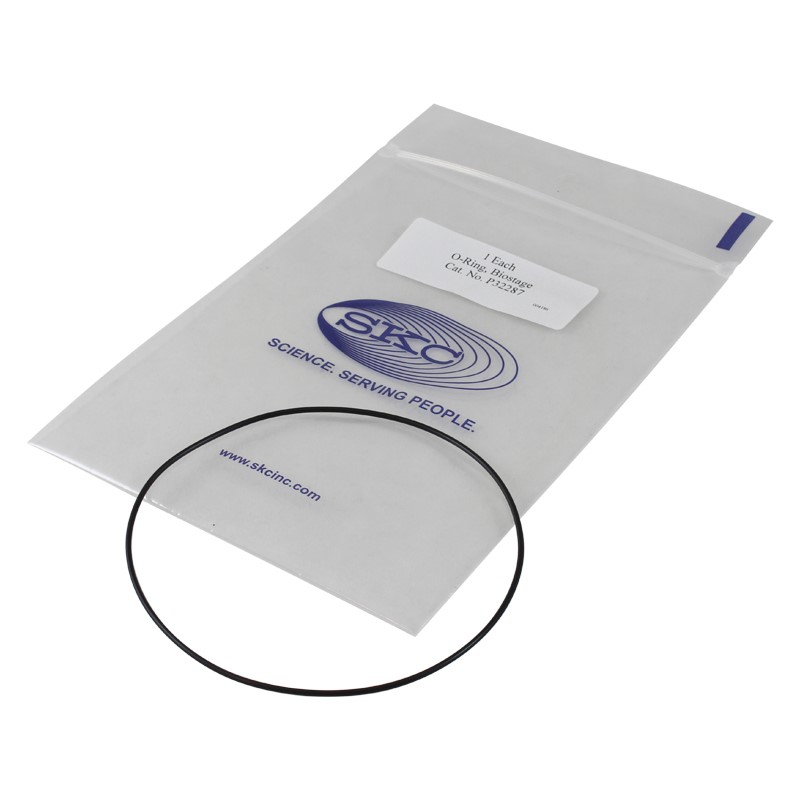

Replacement Large O-Ring, for BioStage Impactor Base Plate

Replacement Large O-Ring, for BioStage Impactor Base Plate

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: P32287

Replacement Large O-Ring, for BioStage Impactor Base Plate Overview

Replacement Large O-Ring, for BioStage Impactor Base Plate, ea

The SKC BioStage® viable cascade impactor meets NIOSH requirements and ACGIH recommendations for sampling indoor and outdoor mold and bacteria. The BioStage comprises an inlet cone, precision-drilled 400-hole impactor stage, and a base that holds a standard-size agar plate. A high flow pump, such as the QuickTake 30, pulls microorganisms in air through the holes (jets) where they are collected on the agar surface. Testing demonstrates that BioStage provides performance equivalent to the industry-standard Andersen N-6. What sets BioStage apart from other samplers is its SureLock positive seal (instead of bulky spring clamps) that ensures sample integrity.



Applications

  • Indoor Air Quality (IAQ) studies
  • Filter and cleanroom efficiency studies
  • Pharmaceutical production
  • Brewery fermentation
  • Animal care laboratories
  • Food processing areas
  • Sewage treatment plants
  • Hospital environments
  • Cosmetic manufacturing
  • Grain processing and transportation
  • Bio-risk response


Performance Profile

Flow Rate
 28.3 L/min
Material
 Inlet cone and base plate: Precision-tooled autoclavable aluminum
O-rings: Duro 50, BUNA-N (not autoclavable )
Jet Classification Stage
 400 holes (0.25-mm hole diameter
Median Cut-point (D50) 0.6 µm
Sample Media
 90 to 100-mm agar plates*
Suggested Media
 For bacteria:
Tryptic Soy Agar (TSA)
Blood Agar Plates (BAP)

For fungi (viable):
Potato Dextrose Agar (PDA)
Malt Extract Agar (MEA)
Dichloran Glycerol 18 Agar (DG-18)
Corn Meal Agar (CMA)
Analysis
 Colony culture‡
Tubing 1/4-inch ID



* Requires microbiological media supplied by analytical laboratories. For lab list see the: BioStage Analytical Laboratories Reference List or visit the AIHA website at www.aiha.org.
‡ In situations where spore counts are high, positive hole correction should be used. See Macher, J., "Positive-Hole Correction of Multiple-jet Impactors for Collecting Viable Microorganisms," American Industrial Hygiene Journal, 50 (11), 1989, pp. 561-568





The BioStage single-stage cascade impactor operates on the principle of inertial impaction and meets NIOSH and ACGIH recommendations for sampling indoor and outdoor air for mold and bacteria. Made of precision-tooled aluminum, the sampler contains a jet classification stage and base plate precision-threaded together for a positive seal and an inlet cone. The impactor stage contains precision-drilled holes. A sample pump draws air through the sampler where multiple jets of air direct airborne particles toward the surface of the agar collection medium.

The SKC SurLock Advantage logo

Only SKC offers the SureLock positive seal advantage! The SKC BioStage Cascade Impactor is constructed with the same 400-hole jet classification stage as the Andersen N-6 Impactor. However, only the SKC BioStage features the SureLock positive seal that:

  • Prevents air leaks to ensure complete sample integrity
  • Does not depend on spring clamps that wear out or fail
  • Requires minimal maintenance
Single-stage impactor with spring clamps Single-stage BioStage with SureLock Seal
Single-stage impactor
with spring clamps		 Single-stage BioStage
with SureLock Seal

Operation The BioStage single-stage impactor is easy to use. A barbed outlet fitting allows fast and easy connection to a vacuum pump. The SureLock positive seal keeps the jet classification stage and agar plate securely in place and prevents leakage during sampling. Sampling is as simple as sealing an agar plate inside the BioStage, connecting the impactor to a pump such as the QuickTake 30 operating at the appropriate flow rate, sampling for two to five minutes,removing the agar plate, and sending it to a qualified laboratory for analysis.


The QuickTake 30
The SKC QuickTake 30 Sample Pump is designed for easy use with the SKC BioStage and other impaction devices that require flows to 30 L/min - it provides the constant 28.3 L/min flow rate for the BioStage. The mounting bracket accessory holds the BioStage Impactor securely onto the QuickTake 30 sample pump for fast setup, easy sampling, and portability.		 SKC QuickTake 30 Sample Pump connected to SKC BioStage



MRSA
Methicillin-resistant Staphylococcus aures (MRSA) infections occur typically in hospitals, elder and child care facilities, gyms, schools, and jails. A 2008 IAQA presentation** recommends a viable cascade impactor (such as the SKC BioStage) with ChromAgar for sample times of two to five minutes for sampling MRSA in air and sterile swabs for sampling MRSA on surfaces where the superbug can live for weeks to a month.

** Samimi, B. and Shufutinsky, A., "Comparison of the Thermo-Andersen N6, the Aerotech A6, the SKC BioStage, and the SKC Micromedia Viable Samplers in the Collecting Airborne Fungal Spores," AIHce, San Diego, CA, Final Program, p. 43
  Yao, M. and Mainelis, G., "Analysis of Portable Impactor Performance for Enumeration of Viable Bioaerosols," Journal of Occupational and Environmental Hygiene, Vol. 4, Issue 7, July 2007, pp. 514-524
  Dobranic, J., Superbugs in Our Communities – An Introduction for the IEQ Professional, EMSL. Presented at 2008 IAQ Conference, Tampa, FL
