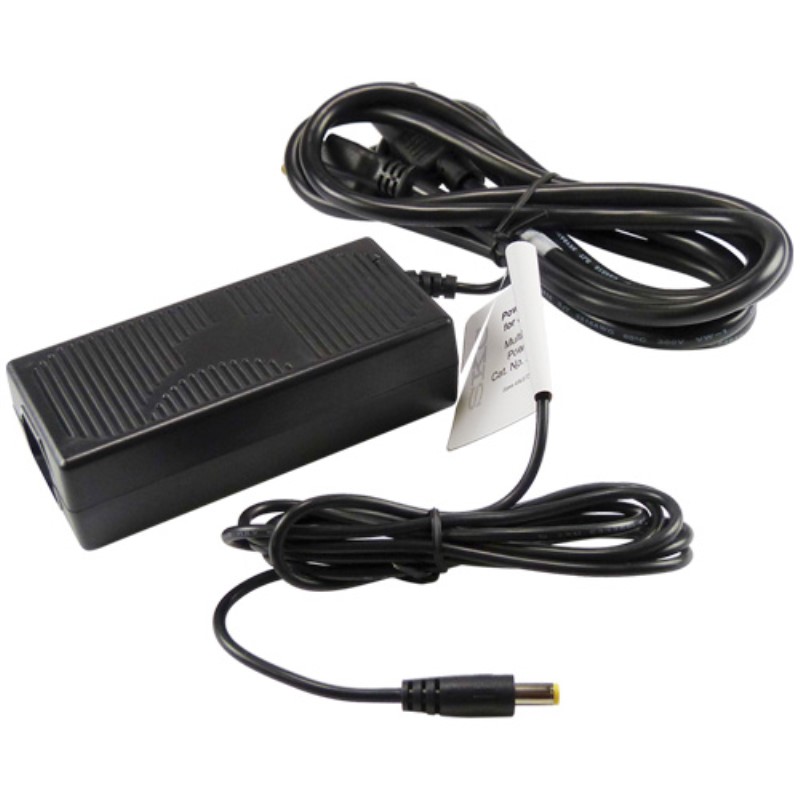

Replacement PowerFlex CE-marked Power Supply, for 5-station PowerFlex Charger

Replacement PowerFlex CE-marked Power Supply, for 5-station PowerFlex Charger

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: P22310

Replacement PowerFlex CE-marked Power Supply, for 5-station PowerFlex Charger Overview

Replacement PowerFlex CE-marked Power Supply, for 5-station PowerFlex Charger, ea PowerFlex is CE marked when used with this power supply provided by SKC.
PowerFlex® Chargers use reflex charging technology that delivers charging pulses of current in between short reverse pulses that slightly discharge the battery. PowerFlex Chargers use pump-specific cables to charge sample pumps and are ideal for use with NiMH and NiCad batteries. Use PowerFlex Chargers to charge up to four different SKC pump models simultaneously.

Performance Profile
Dimensions Five-station 4.4 x 5.5 x 1.4 in
(11.1 x 14 x 3.5 cm)
Single-station 1.2 x 2.3 x 4.6 in
(3 x 5.8 x 11.7 cm)
Weight Five-station 1.1 lbs (0.5 kg)
Single-station 4 oz (0.1 kg)
Status LEDs Steady Red = Charging
Steady Green = Maintenance trickle charge
Input Voltage 100-240 V
Compatibility For use with U.S.-produced pump models only: Universal Series (4 and 5 cell), AirChek 2000, AirChek 52, and 222. Not compatible with EX or ATEX-approved models

Charging Time

 Approximately 6 to 8.5 hrs. Typical charging times vary with model.
Intrinsic Safety Not intended for use in explosive or hazardous locations
Approvals Power supply is cUL US Listed for electrical safety and is CE marked. PowerFlex is not intended for use in explosive or hazardous locations.
Notice to International Users

PowerFlex chargers are compatible with U.S.-produced pump models only. PowerFlex chargers are not compatible with EX or ATEX pump models.


  • Air Sampling Accessory Type : Charger

One Charger Does It All!
Only the advanced PowerFlex battery charging system can provide flexibility for your fleet of SKC personal air sampling pumps. PowerFlex can be used with most SKC personal sample pumps that contain a NiCad or NiMH battery. One PowerFlex can take the place of multiple chargers because it is not a pump specific charger. Instead, PowerFlex uses pump-specific cables to communicate with multiple pump models. Simply select the pump-specific cables you need (available separately). For the ultimate in timesavings and convenience, use the five-station PowerFlex to charge different SKC pump models simultaneously.

Notice to International Users

PowerFlex chargers are compatible with U.S.-produced pump models only. PowerFlex chargers are not suitable for EX and ATEX pump models.

The PowerFlex Advantage

Advanced Reflex Charging Technology: SKC PowerFlex is an advanced battery charging system designed for optimal charging and performance of the nickel-cadmium (NiCad) and nickel metal hydride (NiMH) batteries used in SKC personal sample pumps. PowerFlex applies short reverse (discharge) pulses in between charge pulses to ease the battery into a full charge and to keep temperature and pressure build-up inside the battery to a minimum. PowerFlex detects full charge before the battery starts into overcharge and switches immediately to a pulse trickle charge. Reflex charging minimizes battery damage and maximizes battery life.

Time-saving and Cost-effective: One charger for most SKC personal pump models with NiCad or NiMH battery saves time, money, and storage space. Charge different pump models simultaneously on the five-station PowerFlex.

PowerFlex Pump-specific Cables
PowerFlex pump-specific cables are the key to PowerFlex convenience and flexibility. Need to charge pumps in the field? Simply store your PowerFlex and cables in one small carry case, pack your pumps, and go; no multiple chargers needed, only one AC outlet required. Economical cables are available separately so you only order the cables that you need. Not suitable for EX and ATEX pump models.

Notice to International Users

PowerFlex chargers are compatible with U.S.-produced pump models only. PowerFlex chargers are not compatible with EX or ATEX pump models.

About PowerFlex Technology
Charging NiCad/NiMH batteries is generally accomplished by applying constant current to the battery. Toward the end of the charge cycle, battery voltage rises at an increasing rate, tapers, and finally becomes negative. Most chargers sense this voltage depression and either turn off or switch to a trickle charge.


SKC PowerFlex Chargers use a patented reflex charging technology that delivers pulses of current instead of constant current. In between pulses, PowerFlex applies short reverse pulses that discharge the battery slightly. This eases the battery into a full, uniform charge and prevents dramatic increases in internal temperature and pressure that can damage the battery and shorten its life. To prevent overcharging, PowerFlex continuously monitors the charging voltage curve to find the inflection point, then it quickly and automatically switches to a safe pulsing-type trickle charge upon full charge.
