Sorbent Tubes, for Hydrogen Sulfide

Sorbent Tubes, for Hydrogen Sulfide

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 226-177

Sorbent Tubes, for Hydrogen Sulfide Overview

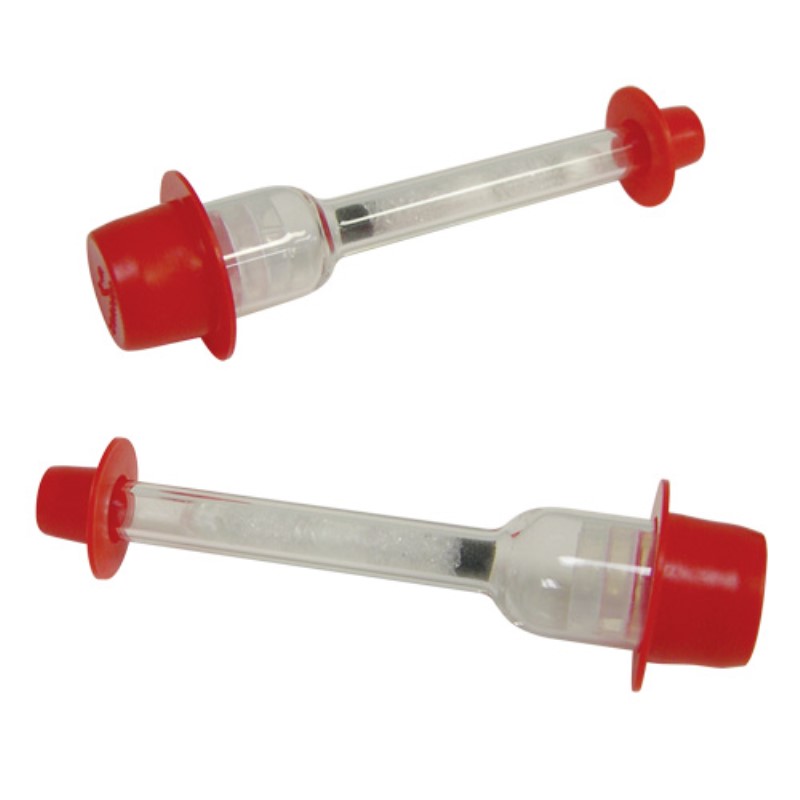

Sorbent Tube, for hydrogen sulfide, silica gel coated with silver nitrate and a glass fiber filter treated with sodium carbonate/glycerol, 16 to 8-mm OD x 85-mm length, 2 sections, 200/200 mg sorbent, 20/40 mesh, pk/5
Limited shelf life; contact SKC for more information

Storage at  ≤ 39.2 F (4 C) required.


Meets the specification of new OSHA Method 1008 for Hydrogen Sulfide and Method 1011 for Sulfur Dioxide


Tube Ends: Glass Open
Separators: PTFE Ring/PTFE Ring/PTFE Ring/Glass Wool/Glass Wool

SKC offers a complete selection of sorbent tubes designed specifically for solvent extraction specified in many OSHA, NIOSH, ASTM, EPA, and non-agency methods. Quality SKC Sorbent Tubes feature consistent sorbent mesh size, validation, and over 45 years of proven performance.

  • Tube Type : Solvent Extraction
  • Sorbent : Other
  • Sorbent Coating : Yes
  • Number of Sections : 2
  • Tube Material : Glass
  • Meet NIOSH, OSHA, ASTM, EPA, and HSE specifications
    • Your single source for U.S. and UK methods

  • Made with high-quality, low-background sorbents

  • SKC thorough quality control ensures sorbents and tubes meet high standards
    • Accurate sorbent weights
    • Consistent method-specified mesh size and separators
    • Uniform back pressure
    • Accurate, repeatable results

  • Large batch production of Anasorb® CSC Lot 2000 charcoal to ensure availability for many years

  • Validation of reliability
    • Specified in OSHA, NIOSH, ASTM, and EPA methods
    • Used by health and safety professionals around the world for compliance and consulting

  • Sorbent background certification available online (see Certificates of Analysis)

  • Technical support from scientists

  • Hundreds of sorbent tubes for standard and specialty applications delivered quickly from stock



226-01 drawing

TechTips logo

Red Triangle

Consult the method or the SKC Air Sampling Guide to determine the appropriate sorbent tube to use for the chemical being sampled.


Red Triangle

Just before sampling, use a scorer/breaker tool to uniformly break the ends of the sorbent tube to a 2 mm diameter or half the diameter of the tube body.


Red Triangle

Keep the tube in a vertical position during sampling to prevent the possibility of channeling that can lead to undersampling.


Red Triangle

The arrow on the tube indicates air flow direction and should point to the tube holder and pump. If no arrow is present, the smallest section should be near the tube holder.


Red Triangle Ship the sample to a laboratory as soon as possible; avoid excessive heat and rough handling.
