AirChek XR5000 Button Sampler Pump Kit

Part Number:

210-4121

Overview

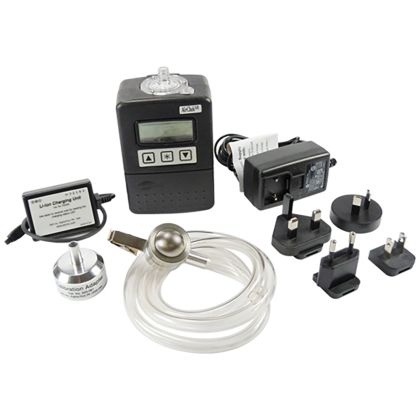

Button Sampler Pump Kit includes Button Sampler, standard AirChek® XR5000 Sample Pump, single charger (100-240 V), 3 feet of Tygon tubing, and calibration adapter; requires a 25-mm filter. AirChek XR5000 pumps contain Li-Ion batteries and are subject to special shipping regulations. AirChek XR5000 requires ¼-inch ID tubing.

Details

The Button Sampler, with its porous curved-surface inlet, is designed to improve the collection characteristics of inhalable dust, including bioaerosols for viable or non-viable analysis. Use the Button Sampler for low-level personal or area sampling of inhalable dust.

Attributes

Attributes
Flow Rate	5 to 5000 ml/min
Touch Screen Operation	No
Battery Type (Power)	Li-ion
Approx. Run Time	20 Hours at 2L/min
Connectivity	No
PC Compatible	No
Programmable	Yes
Compensates for Changes in Atmospheric Pressure	No
Compensates for Changes in Temperature	Yes
Constant Flow	Yes
Constant Pressure Mode	No
Automatic Flow Rate Verification	No
Intrinsic Safety	Yes
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

Flow Rate	4 L/min*
Sampling Inlet	Conductive stainless steel
Body	Aluminum
Support Screen	Stainless steel
Clip	Stainless steel and nylon
O-rings	PTFE (inlet) and BUNA-N (body)
Filter	25 mm**
Inhalable Dust	Gravimetric (GR)
Fungal Spores	Epifluorescence microscopy, immunoassay, or polymerase chain reaction (PCR)
Metals	X-ray Fluorescence (XRF)
Tubing	1/4-in ID

*	The Button Sampler closely follows the ISO 7708/CEN inhalability curve at 4 L/min. This provides optimum sampling.
**	A filter pore size of 1.0 µm or larger is recommended for use with the Button Sampler to reduce back pressure.
