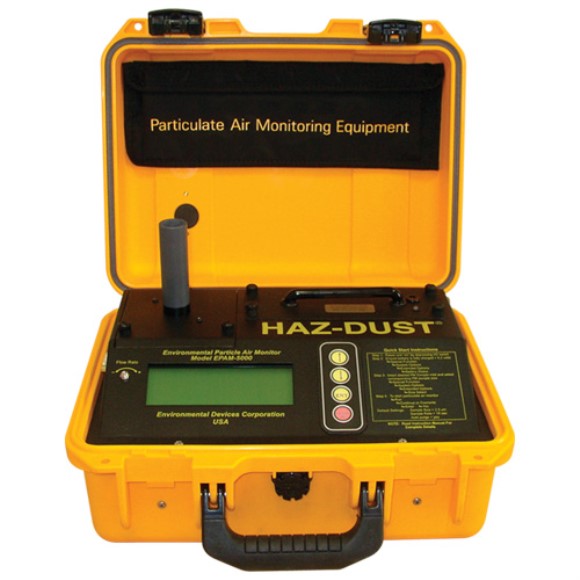

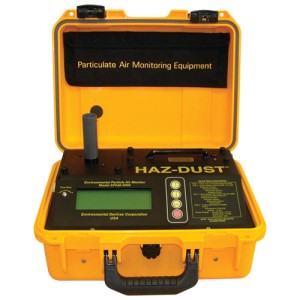

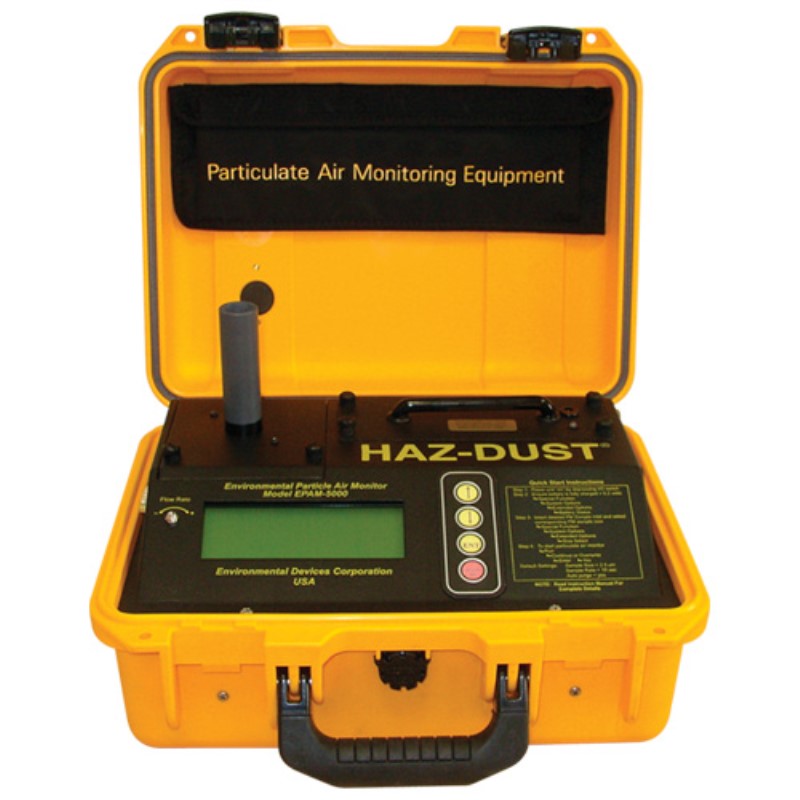

EPAM-5000 Monitor Kit with 2.5-µm Impactor

EPAM-5000 Monitor Kit with 2.5-µm Impactor

Please allow your location to be read or register an account with SKC Inc. to view pricing
Part Number: 770-202
Available for Rent
Would you like to rent the product?
Request Rental

EPAM-5000 Monitor Kit with 2.5-µm Impactor Overview

EPAM-5000 (datalogging) Environmental Particulate Air Monitor Kit with 2.5-µm impactor, lead acid battery, 110-240 V charger/adapter, shoulder strap, carry case, DustComm Pro software, and computer interface cable
Measures 0.001 to 20.0 mg/m3; 0.01 to 200 mg/m3
EDC No. EPAM-5000 W/2.5

The EPAM-5000 portable environmental PM monitor provides real-time determinations and data recordings using interchangeable size-selective impactors for PM10, PM2.5, and PM1.0; measures TSP without impactor. The EPAM-5000 is ideal for ambient, environmental, and indoor air quality investigations and baseline surveys.



Applications

    • Quantifying off-site particulate migration



    • Surveying for PM2.5, PM10, and PM1.0



    • Monitoring dust generation during drilling and excavation



    • Evaluating dust suppression and engineering controls



    • Locating and identifying "hot spots"



    • Emergency response and fugitive emissions compliance



    • Determining level of respiratory protection



    • Survey of workplace for OSHA/EPA compliance



    • Evaluating worker exposure to airborne contaminants



    • Dust collector/ventilation system checks



    • Monitoring lung-damaging particles in factories and buildings



  • Complementary instrument for all EPA and OSHA personal and ambient particulate air sampling procedures





Performance Profile

Sensing Range

0.001 to 20 mg/m3
0.01 to 200 mg/m3 (optional); specify when ordering
0.10 to 2000 mg/m3 (optional); specify when ordering
Particle Size Range 0.1 to 100 µm
Precision ± 0.003 mg/m3 (3 µg/m3)
Accuracy ± 10% to filter gravimetric SAE fine test dust
Sampling Flow Rate 4 L/min
Filter Cassette Holder
(optional accessory)		 47 mm, FRM Style
37 mm or 25 mm (optional)
Alarm Output 90 dB at 3 ft
Analog Output 0 to 2 vdc
Recording Time 1 sec to 15 mos
Sampling Rate 1 sec, 10 sec, 1 min, and 30 min
Data Storage 21,600 data points
Security Code 4-digit combinations
Memory and Time Storage > 5 years
Data Display Concentration in mg/m3 and TWA, MAX, MIN, STEL, Date, and Time
Digital Output RS-232
Operating Temperature 14 to 122 F (-10 to 50)
Storage Temperature -4 to 158 F (-20 to 70 C)
Power Rechargeable lead-acid and interchangeable battery
Operating Time > 24 hrs on battery; continuous on AC
Charging Time Approx. 22 hrs
Dimensions (case) 14 x 6 x 10 in ( 35.6 x 15.2 x 25.4 cm)
Weight 10 lbs (4.5 kg)



  • Product Type : Particulate Monitor
  • Silica Dust Monitoring : No
  • Personal Dust Monitoring : No
  • Ambient PM Monitoring : Yes

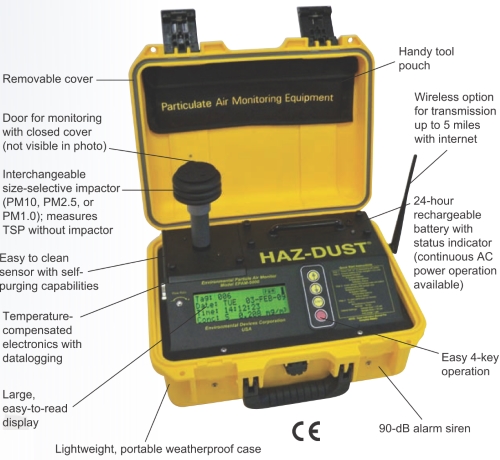

EPAM-5000 with callouts

The portable HAZ-DUST EPAM-5000 particulate monitor is ideal for ambient, environmental, and indoor air quality investigations. The highly sensitive EPAM-5000 uses light scattering to measure particle concentration and provide real-time determinations and data recordings of airborne particle concentration in mg/m3. Interchangeable size-selective impactors allow PM10, PM2.5, and PM1.0 monitoring; TSP measuring does not require an impactor. The unique aerodynamic particle sizing and optional 47-mm in-line filter holder loaded with appropriate filter can provide concurrent gravimetric sampling. Download and store sampling data on a PC for analysis and reporting using included DustComm Pro Software.

The EPAM-5000 Advantage

    • One compact instrument provides real-time data and gravimetric samples for analysis
    • Immediate display and datalogging of particulate concentrations
    • Data provides a graphic profile of PM sample
    • Added-value survey sampler for saturation monitoring studies
    • Allows immediate and permanent documentation
    • Reduces the number of manual gravimetric test as well as labor and analysis costs
  • Easy setup and operation — ready in 15 seconds



EPAM-5000
Environmental Particulate Monitor Kits

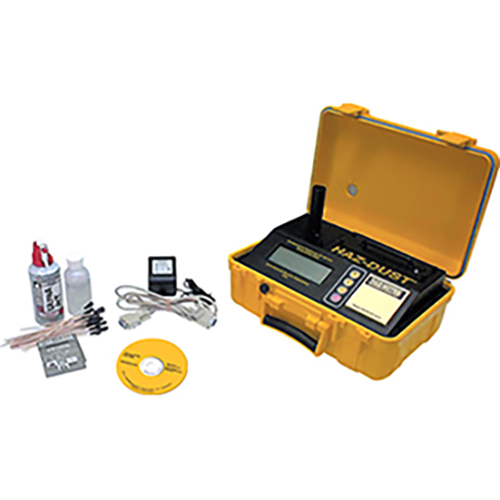

EPAM-5000 Monitor Kit

EPAM-5000 Monitor Kit

The EPAM-5000 Particulate Air Monitor is available in kits with a 10, 2.5, or 1.0-µm impactor. Each kit contains the EPAM-5000 monitor with a specific cut-point impactor, battery and charger, DustComm Professional Software (Windows, 2000, NT, ME and XP compatible), computer cable, manual, and a portable carry case. Alternate cut-point impactors are available separately. For a lighter weight model with air station capabilities, see the EPAM-7500.

HAZ-DUST is a Trademark of Environmental Devices Corporation.
