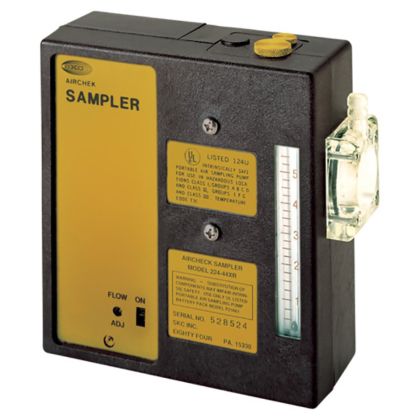

Universal 44XR Pump

Part Number:

224-44XR

Overview

Universal 44XR Pump only, with NiMH battery and screwdriver set. Requires charger.

The Universal 44XR personal or area air sampling pump provides a flow range of 5 to 3000 ml/min. This economical turn-on-and-sample air sampling pump offers run times up to 12 hours for sampling particulates and gases/vapors. The pump is ideal for use with sorbent tubes, filter cassettes, size-selective samplers, sample bags, and impingers. The Universal 44XR air sampling pump is UL Listed for intrinsic safety.

Attributes

Attributes
Flow Rate	5 to 5000 ml/min
Touch Screen Operation	No
Battery Type (Power)	NiMH
Approx. Run Time	12+ Hours at 4 L/min
Connectivity	No
PC Compatible	No
Programmable	No
Compensates for Changes in Atmospheric Pressure	No
Compensates for Changes in Temperature	No
Constant Flow	Yes
Constant Pressure Mode	No
Automatic Flow Rate Verification	No
Intrinsic Safety	Yes
CE Marked	Yes
UKCA Marked	Yes

Specifications

Performance Profile

Operating Range	1000 to 5000 ml/min (UL Listed model) 1000 to 3000 ml/min (MSHA-approved model) (5 to 500 ml/min requires the Cat. No.224-26 Series adjustable tube holder) Requires 1/4-inch ID tubing
Weight	34 oz (964 gm)
Dimensions	5.1 x 4.7 x 1.9 in (13 x 11.9 x 4.8 cm)
Compensation Range	1000 to 2500 ml/min at 40 inches water back pressure 3000 ml/min at 35 inches water back pressure 4000 ml/min at 20 inches water back pressure 5000 ml/min at 10 inches water back pressure
Typical Back Pressure	See Table 1 below.
Flow Control	Holds constant flow to ± 5% of set-point
Run Time	NiMH Battery: 12 hours minimum at 4000 ml/min and 20 inches water back pressure; dependent on media used. See Table 2. Battery Eliminator: Pump provides extended runs.
Tubing	1/4-inch ID tubing, required
Flow Indicator	Built-in rotameter with 250-ml division; scale marked at 1, 2, 3, 4, and 5 L/min
Power Supply	6.0-V plug-in NiMH battery pack, rechargeable, 3.5-Ah capacity A battery eliminator is available (see Ordering Information); use voids the UL Listing for intrinsic safety.
Intrinsic Safety	UL Listed for Class I, Division 1 and 2, Groups A, B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III, Temperature Code T3C ATEX-approved models are available. Contact SKC.
Operating Temperature	32 to 104 F (0 to 40 C)
Storage Temperature	-4 to 113 F (-20 to 45 C)
Charging Temperature	50 to 113 F (10 to 45 C)
Operating Humidity	0 to 95% non-condensing
Multiple-tube Sampling	Built-in constant pressure regulator allows user to take up to four simultaneous samples with rates up to 500 ml/min each (total combined flow 1350 ml/min maximum) using the optional adjustable tube holder accessory.
RFI/EMI Shielding	Complies with requirements of EN 55022, FCC Part 15 Class B, EN 50082-1 Frequency range of the radiated susceptibility test was 27 to 1000 MHz CE marked
Additional Specifications	Built-in fluid/particulate trap External see-through filter housing Tamper-resistant control cover Tamper-resistant compensation adjustments Built-in accessory mount Stainless steel belt clip External exhaust port All non-plastic parts made of corrosion-resistant materials RFI and EMI-shielded case
Additional Features	One-year warranty Ultra-quiet operation Pulsation-free flow Impact-resistant case
